Pressure Systems, Inc. 9016 Upgrade Instructions
www.PressureSystems.com2

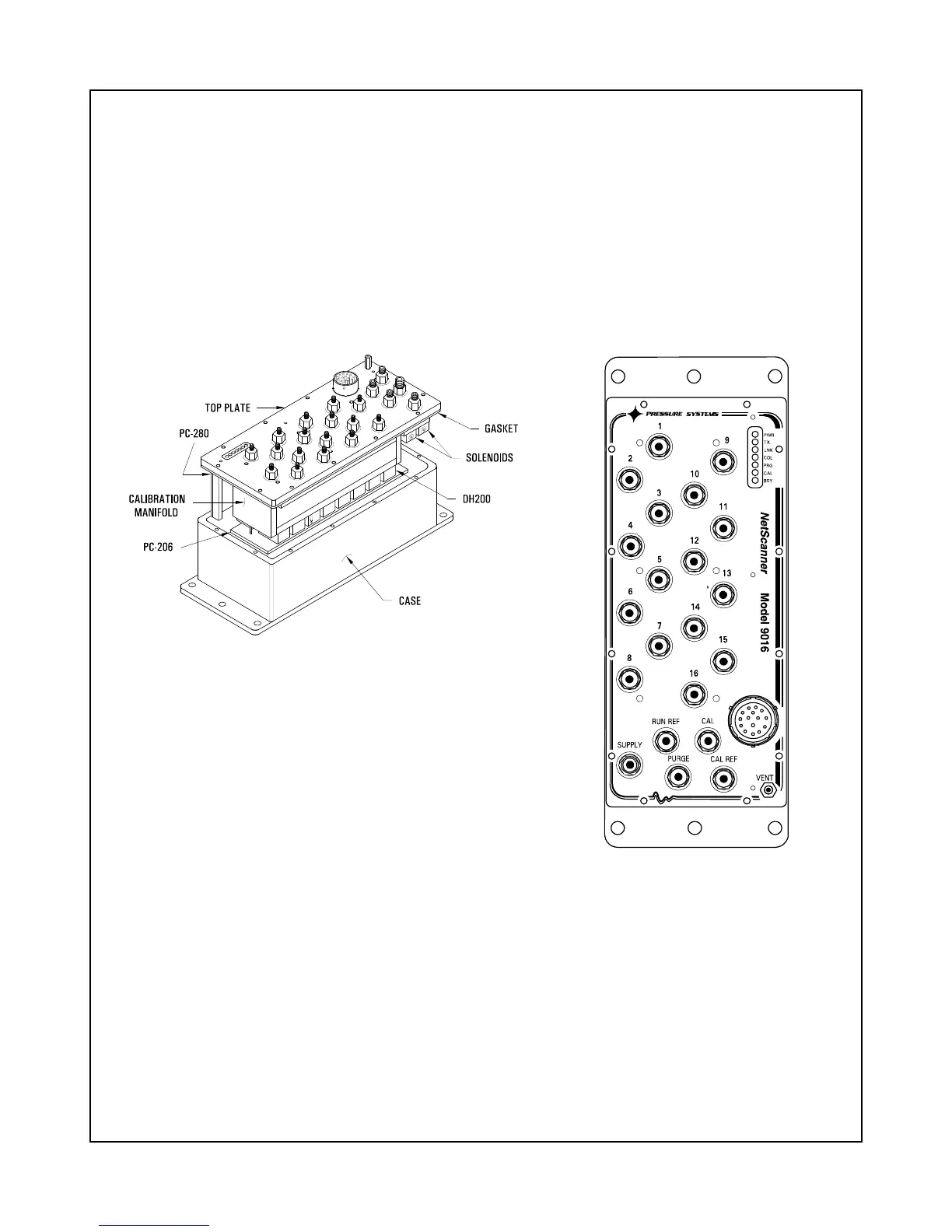

Figure 1
Exploded View of 9016 Scanner
Figure 2
9016 Top Plate
9016 Upgrade Instructions
The following instructions must be followed to successfully upgrade the hardware and firmware in
your current 9016 Intelligent Pressure Scanner to 9116 scanner capabilities.
Figure 1 is an exploded view of the Model 9016. Please refer to this drawings for an understanding
of the construction of Intelligent Pressure Scanners. Figure 2 depicts the 9016 top plate.
