OPERATING INSTRUCTIONS
BASIC ELEMENTS OF A
PRESSURE WASHER
High Pressure Pump (located inside
the shroud): Increases the pressure
of the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray
wand to control water flow rate,
direction, and pressure.
Quick Connect Spray Wand: Allows
the user to quickly change out high-
pressure nozzles. See How To Use
Spray Wand instructions in this section.
Chemical Hose: Feeds cleaning
agents into the pump to mix with the
water. See How To Apply Chemicals/
Cleaning Solvents instructions in this
section.

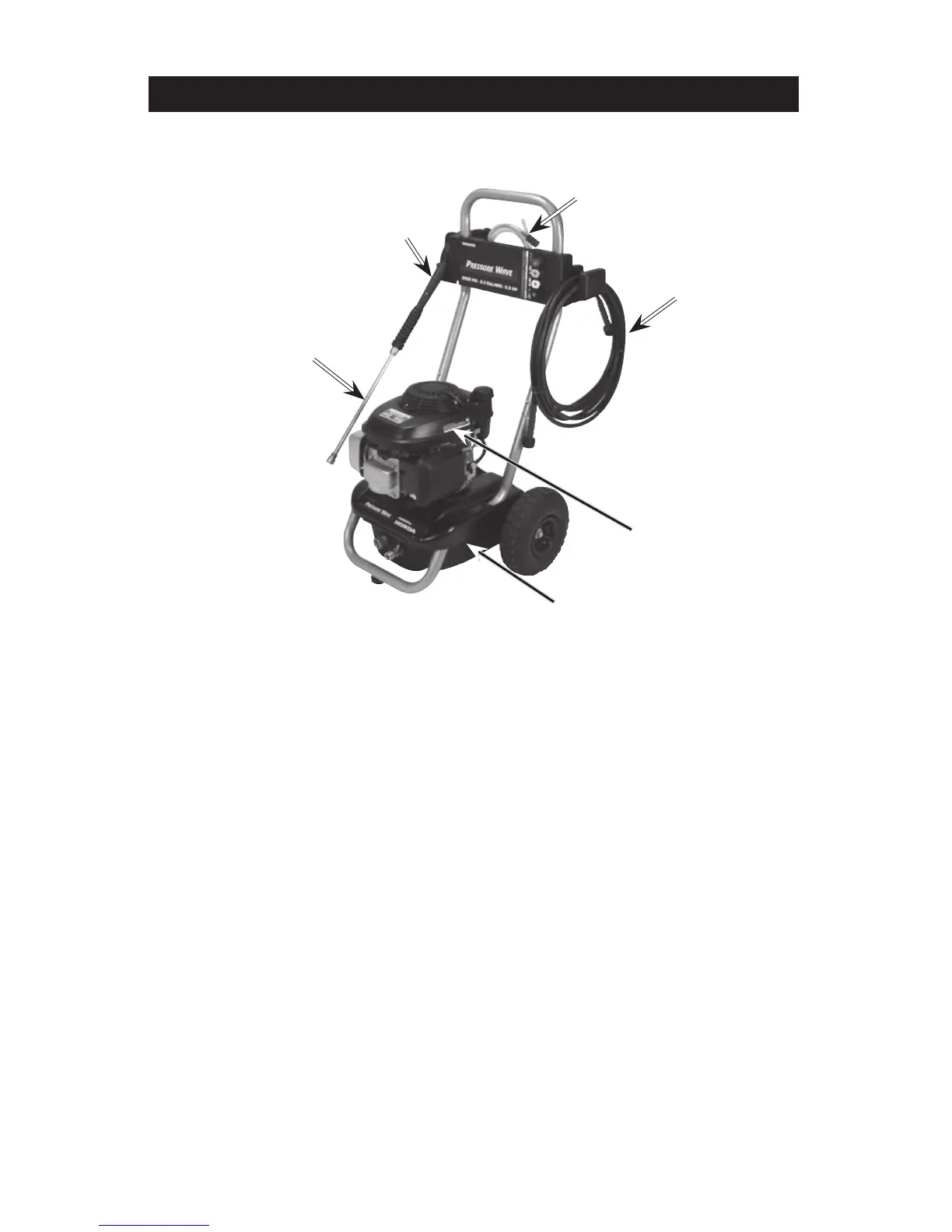

Compare the illustrations with your unit to familiarize yourself with the location
of various controls and adjustments. Save this manual for future reference.
Engine
High
Pressure
Hose
Spray Gun
Quick
Connect
Spray Wand
High Pressure Pump
(located inside the shroud)
BASIC ELEMENTS OF AN
ENGINE
Refer to the engine manual for
location and operation of engine
controls.
Choke Control:
Opens and closes
carburetor choke valve.
Starter Grip:
Pulling starter grip
operates recoil starter to crank
engine.
Fuel Valve Lever:
Opens/closes
connection between fuel tank and
carburetor.
Engine Switch:
Enables and disables
ignition system.
PRESSURE WASHER
TERMINOLOGY
PSI: Pounds per Square Inch. The
unit of measure for water pressure.
Also used for air pressure, hydraulic
pressure, etc.
GPM: Gallons Per Minute. The unit of
measure for the flow rate of water.
Chemical
Hose
