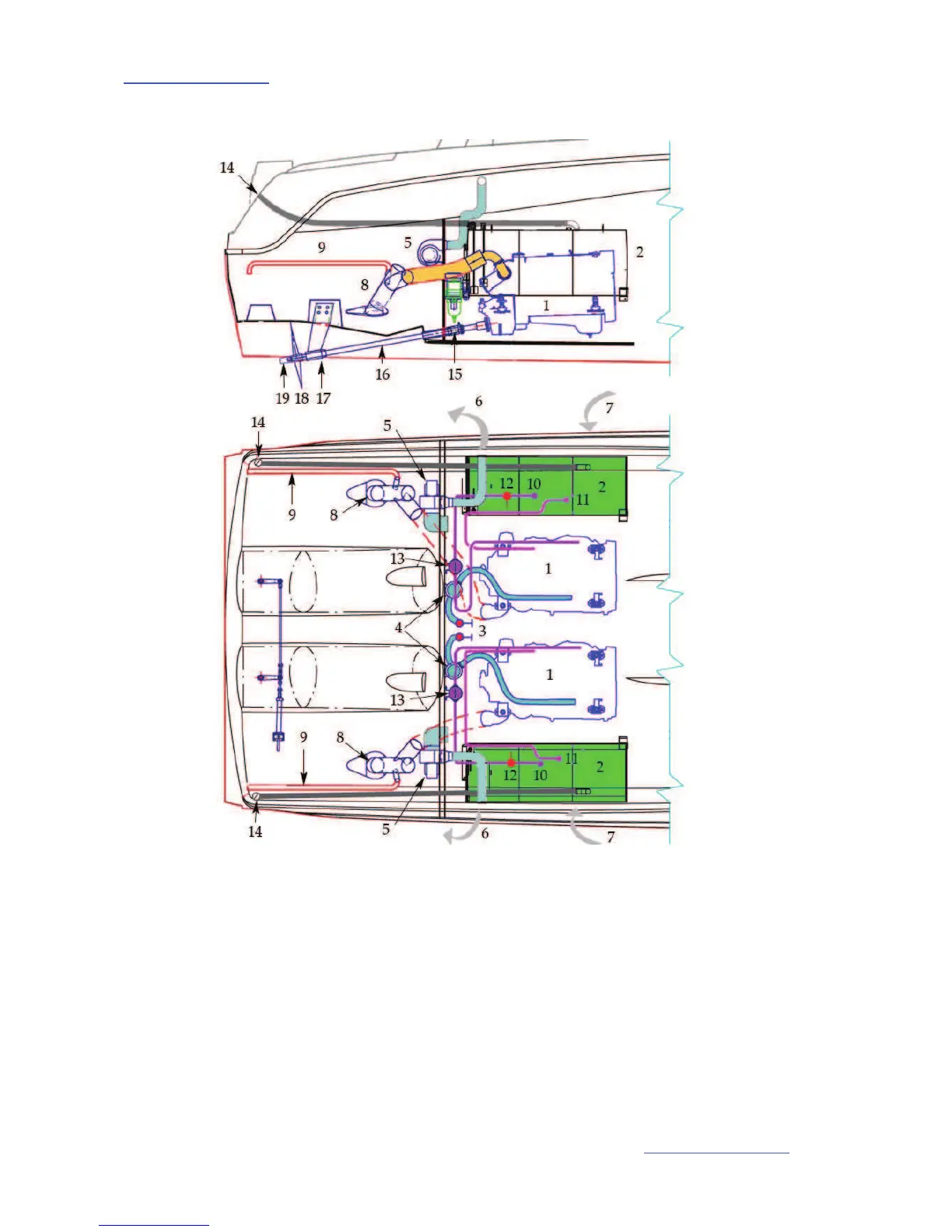

LOCATION
1. Engine 2. Tank
3. Sea water inlet valve for engine 4. Sea water filter
5. Extractor 6. Engine compartment bilge ventilation -
Outlet
7. Engine compartment bilge ventilation -
Entrance
8. Underwater exhaust outlet
9. Decompression exhaust outlet 10. Supply - Fuel
11. Fuel oil return pipe 12. Closing valve of the fuel system
13. Decanter prefilter 14. Fuel filler
15. Stuffing box 16. Propeller shaft
17. P bracket 18. Propeller
19. Anode
