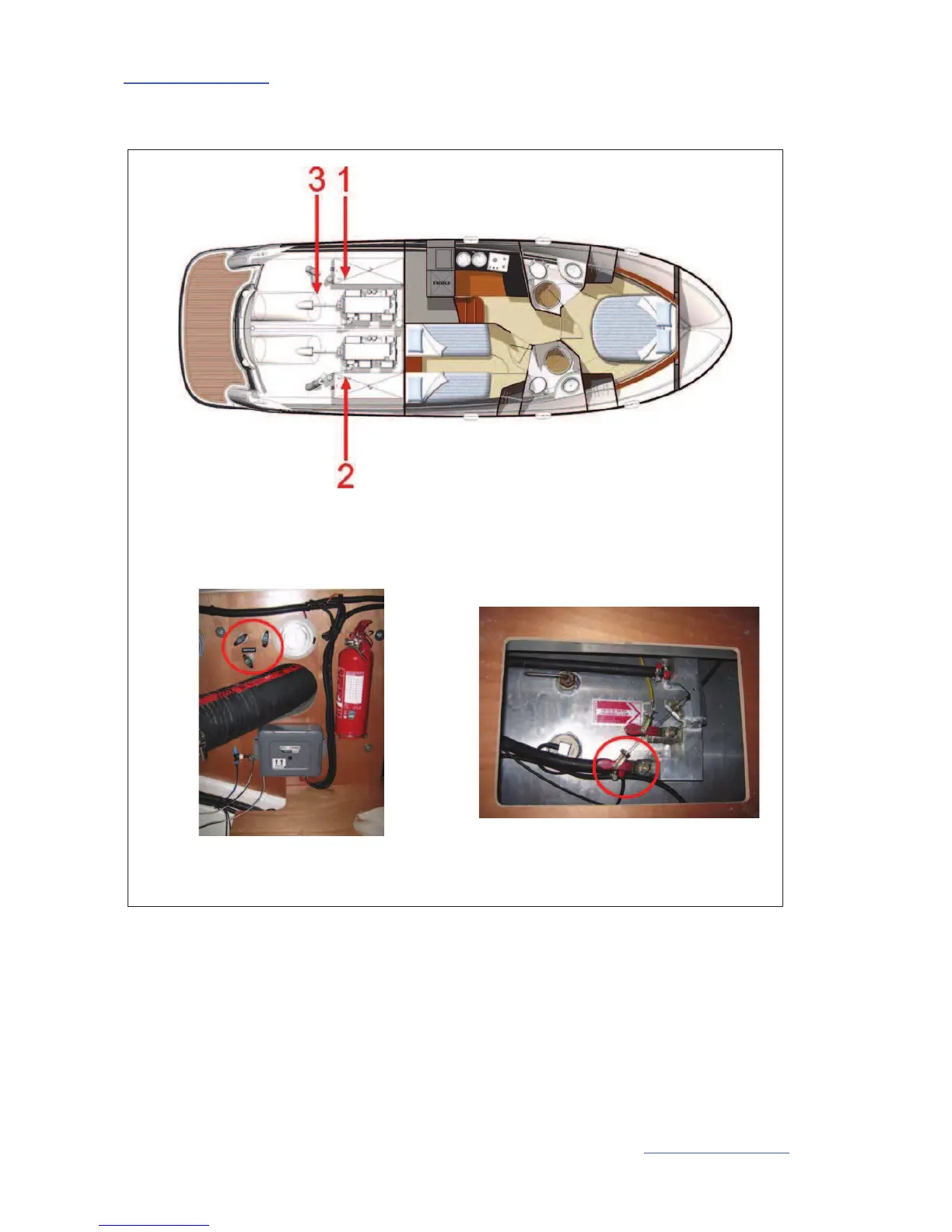

POSITION OF FUEL SUPPLY VALVES
Note: Same position for the other layouts.
1. Opening valve / Diesel shut-off on port tank
2. Opening valve / Diesel shut-off on starboard tank + Joining generator
3. Remote pull switches for diesel shut-off
Remote pull switches - Supply tanks +
generator
(Reference 3)
Fuel supply valve
