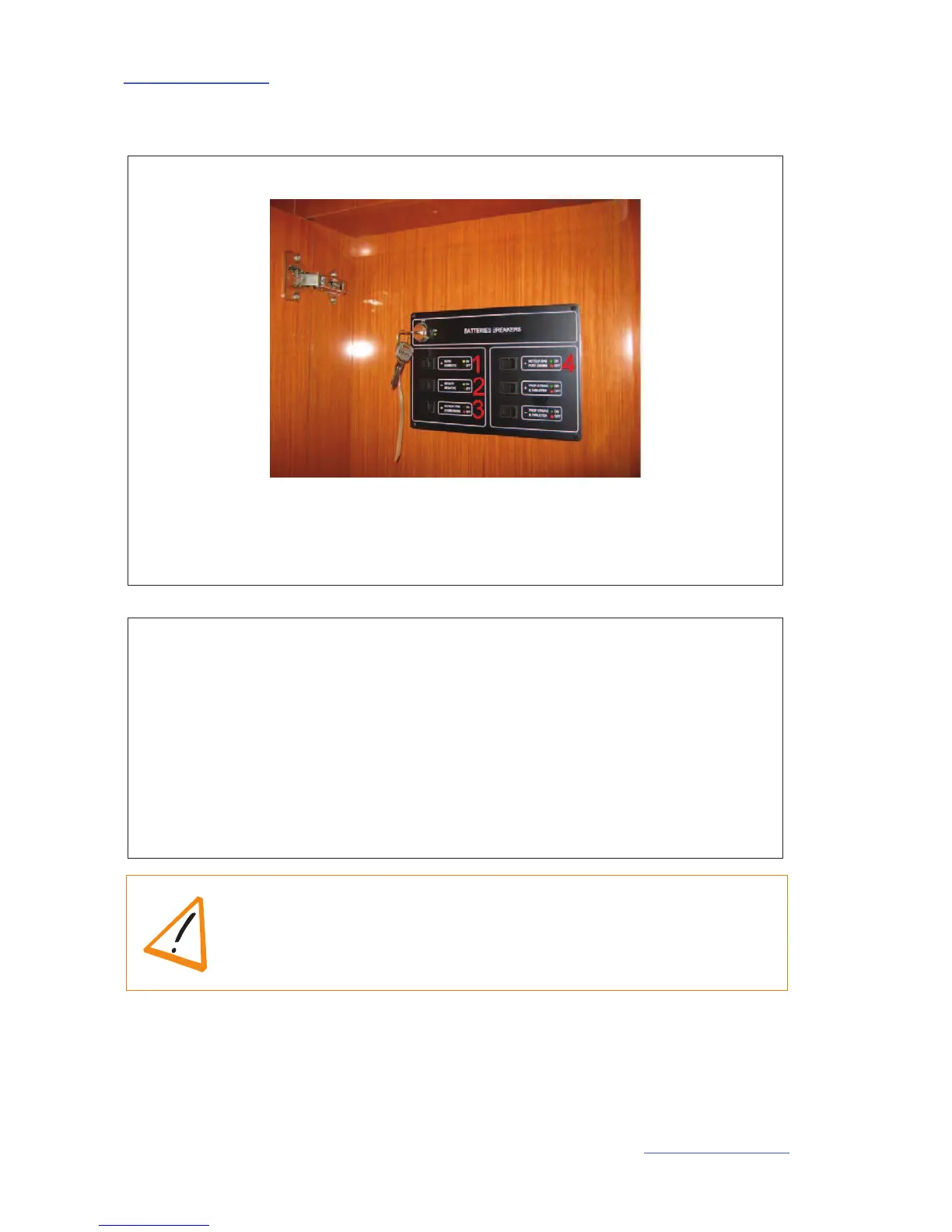

DETAIL OF 12V DC ELECTRICAL CIRCUIT BREAKER CONTROLS
Location - Saloon Port aft
1. Control - Service positive
2. Control - Common negative
3. Control - Positive - Starboard engine
4. Control - Positive - Port engine
Starting up
• Set the key on ON
• Press every switch (house, negative and engine), keep the switches pressed for 2
• The ON indicator lights are switched on (Cutting the batteries are switched on)
Stop
• Press every switch (house, negative and engine), keep the switches pressed for 2
• The OFF indicator lights are switched on (the batteries were cut off)
• Set the key on OFF
Note
• The OFF position of the key makes impossible any operation of the switches (house,
negative and engine) whether the indicator lights are on OFF or ON
WARNING
- Never work on a live electric fitting.
