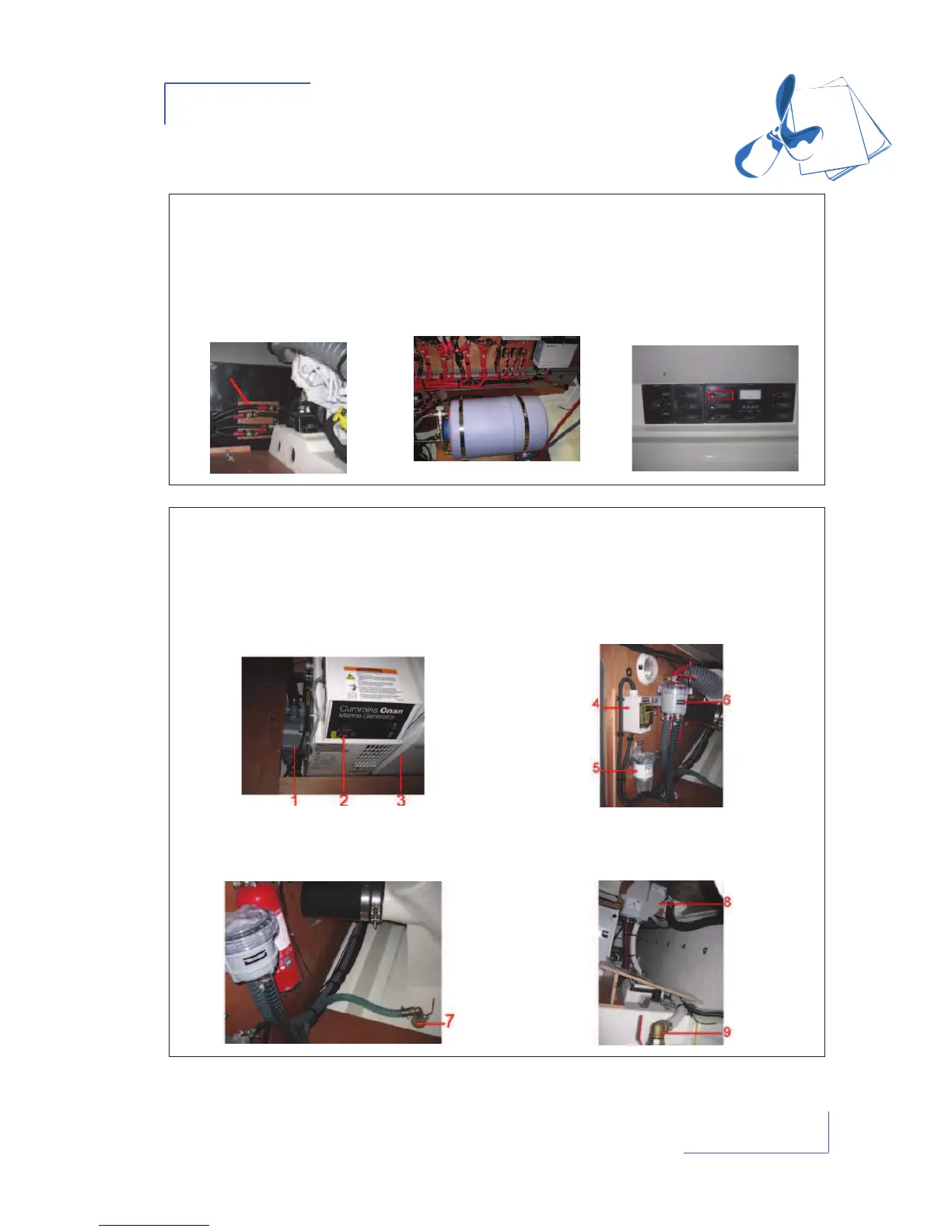

ELEMENTS 220V
WATER HEATER
The water heater works off of the starboard engine cooling system.
Supply valve - Water heater /
Engine
Location: Engine
compartment
Location: Technical room
Control
GENERATOR
Layout of components: Cockpit locker
1. Water trap
2. Switch up service
3. Generator
4. Breaker
5. diesel filter
6. Sea water filter
7. Seawater inlet
8. Water - Gas separator
9. Drainage - Sea water
