Start up
E
F
G
G
A
B
D
C

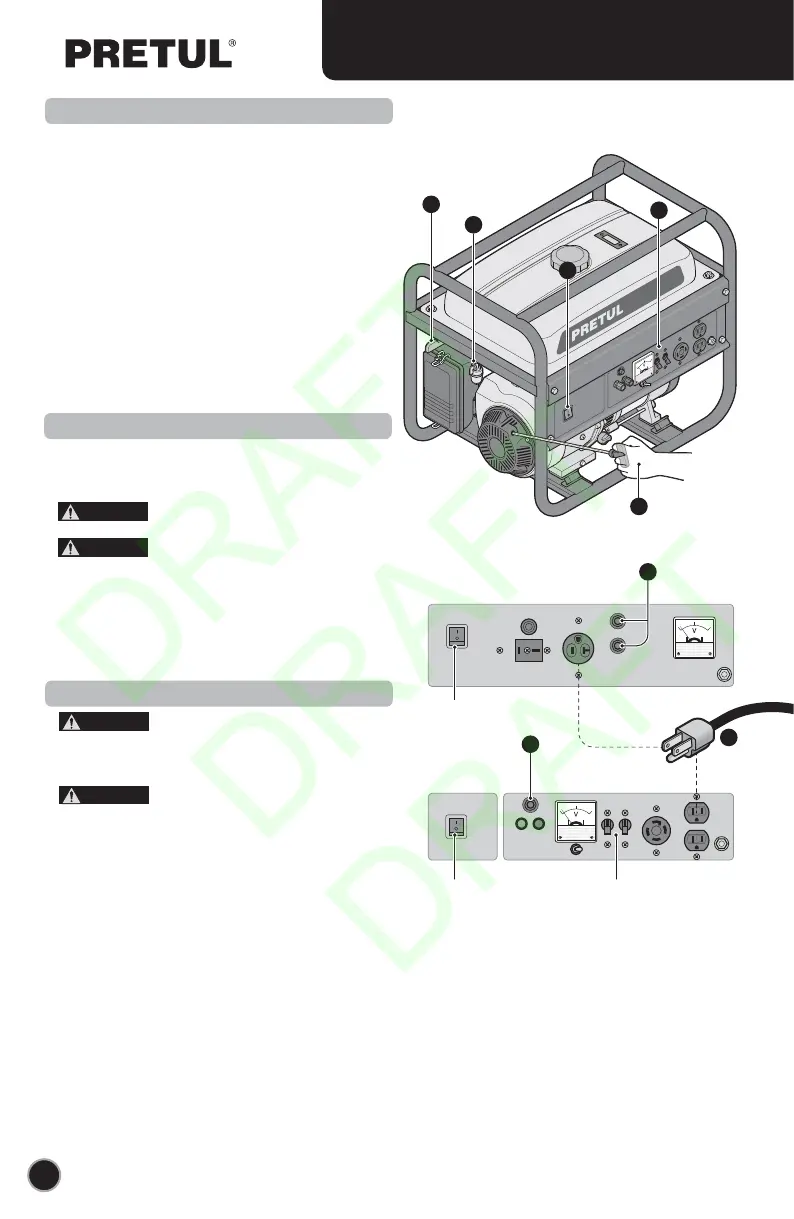

• Ground the generator. Disconnect all the devices
from the connection panel (A) and double check the
switch and breakers are OFF.
• Make sure the fuel tap (B) is open.
• Set the choke lever (C) into the OFF position.
• Set the switch (D) into the ON position.
• Gently pull the choke lever (E) until feeling
resistance in the line. Then, pull with force to start the
motor.
• Once the machine is ON, set the choke lever (C)
into the ON position.
Start the Motor
• After starting the generator, connect the devices
needed (F) into the terminals in the connection
panel.
If connecting more than one device,
connect first those using a higher current to start.
Verify the devices do not exceed
longer than 30 minutes’ the rated current of the
generator and that never exceed the maximum
output load.
• Turn ON the switch and the breakers.
• If there is an important overload, the
overload protector will turn OFF. It is possible that a
marginal overload will not turn OFF the thermal
protection but will reduce the useful life of the generator.
• If the overload protector is OFF
because a circuit is overloaded, reduce the electric
charge of the circuit and wait a couple of minutes before
restarting the overload protector (G).
Connecting Devices
