18

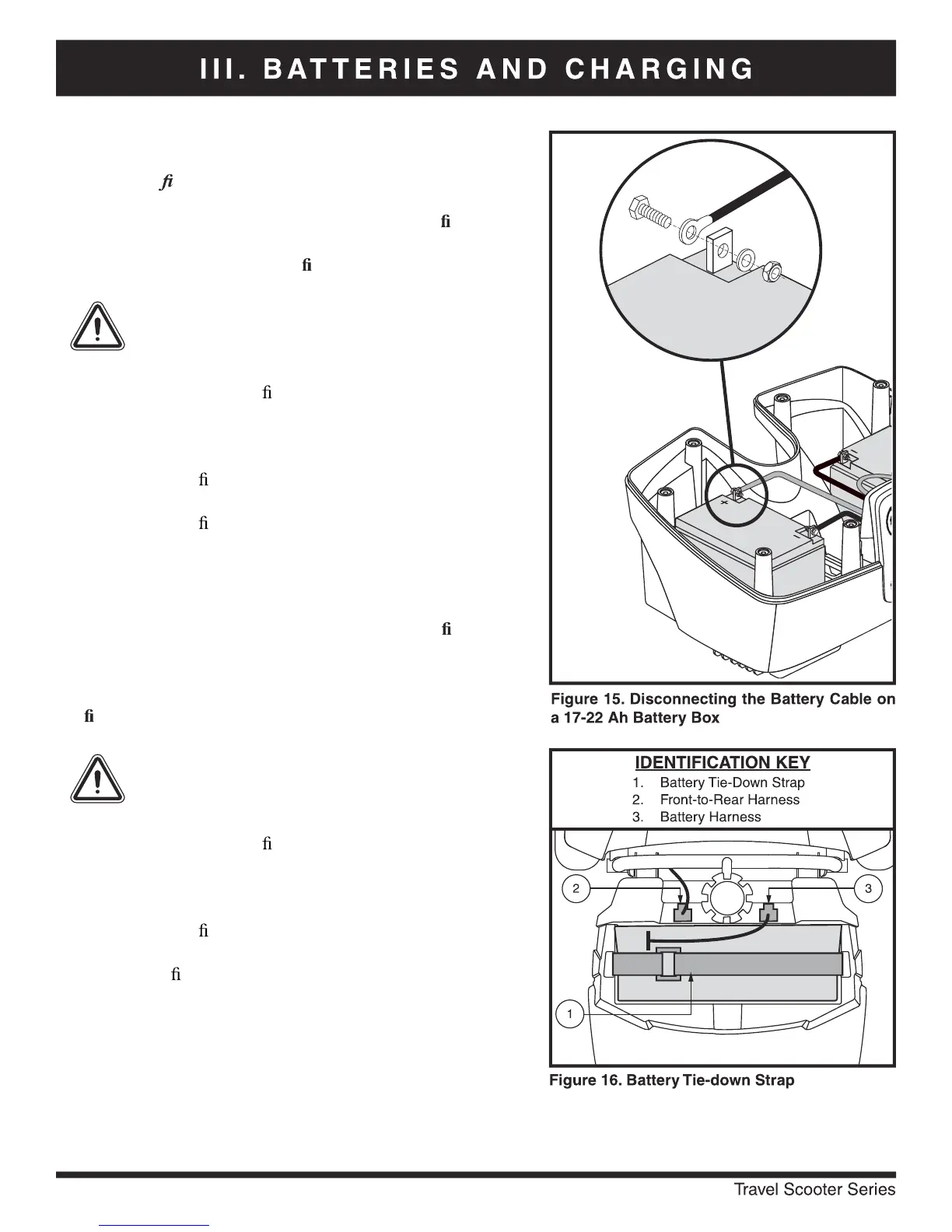

NOTE: Some batteries require the removal of a nut and
bolt when disconnecting the battery cable from the battery
terminal. See gure 15.
To change batteries in Battery Pack Style B (see gure 6):
1. Disconnect the battery harness and remove the battery pack
from the Travel Scooter. See gure 16.
2. Unzip the battery pack to expose the batteries.
WARNING! To avoid confusion when replacing
batteries, replace one battery at a time.
3. Disconnect the black (-) and red (+) battery cables from the
battery terminals of the rst battery.
4. Remove the old battery.
5. Place the new battery into the battery pack.
6. Connect the red battery cable to the positive (+) battery
terminal of the rst battery.
7. Connect the black battery cable to the negative (-) battery
terminal of the rst battery.
8. Repeat steps 3-7 for the other battery.
9. Completely zip the battery pack.
10. Reinstall the battery pack and connect the battery harness.
To change batteries in Battery Pack Style C (see gure 6):
1. Remove the seat and rear shroud.
2. Disconnect the battery harnesses and tie-down strap then
remove the battery pack from the Travel Scooter. See
gure 16.
3. Unzip the battery pack to expose the batteries.
WARNING! To avoid confusion when replacing
batteries, replace one battery at a time.
4. Disconnect the black (-) and red (+) battery cables from the
battery terminals of the rst battery.
5. Remove the old battery.
6. Place the new battery into the battery pack.
7. Connect the red battery cable to the positive (+) battery
terminal of the rst battery.
8. Connect the black battery cable to the negative (-) battery
terminal of rst battery.
9. Repeat steps 4-8 for the other battery.
10. Completely zip the battery pack closed.
11. Reinstall the battery pack then connect the battery harnesses
and battery tie-down strap.
12. Reinstall the rear shroud and seat.
NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and contact your
local waste disposal agency or authorized Provider for instructions on disposal and battery recycling which is
our recommended course of action.
