18 www.pridemobility.com Fusion
SEATBACK
ARMREST
FRONT RIGGINGS
MANUAL
FREEWHEEL
LEVER
MOTOR/BRAKE
ASSEMBLY
JOYSTICK
III. YOUR POWER CHAIR
THE FUSION
Your power chair has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat
assembly includes the armrests, seatback and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, two anti-tip wheels, two castor wheels, two batteries and wiring harnesses.
POWER
BASE
ASSEMBLY
SEAT
ASSEMBLY
CONTROLLER
DRIVE WHEEL
CASTOR WHEEL

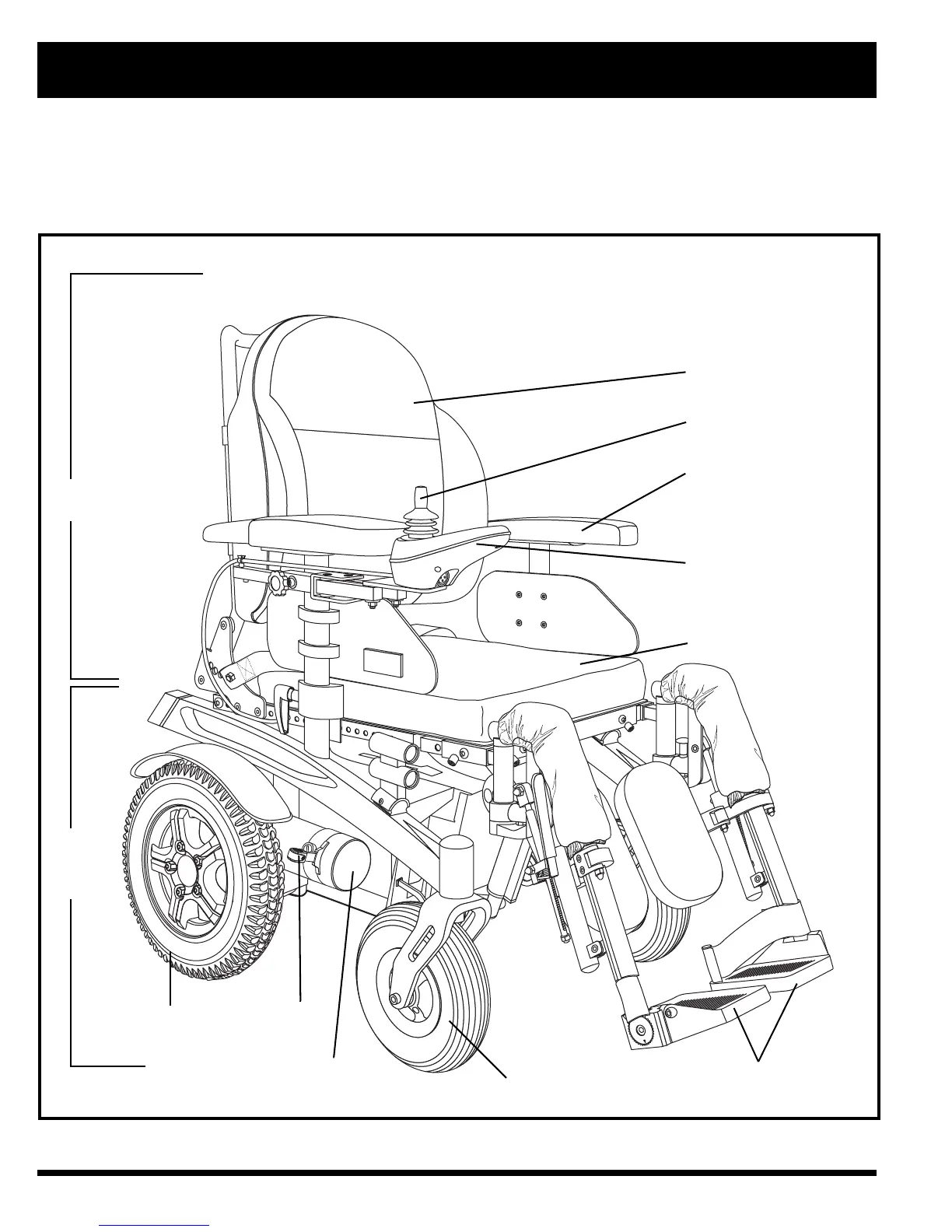

Figure 5. The Fusion
SEAT BASE
