IV. COMFORT ADJUSTMENTS
Seat Angle (Dump) Adjustment
You can adjust the seat angle (dump) from 0° to +21°.
To adjust the seat angle (dump):
1. Remove the occupant from the power chair.
2. Remove the seat angle adjustment bolt. See figure 12.
3. Adjust the seat to the desired angle.
4. Reinstall the seat angle adjustment bolt.
Seat Depth Adjustment
You can adjust the seat depth from 40.6 to 50.8 cm (16 to 20 in.).
To adjust the seat depth:
1. Remove the seat cushion.
2. Remove both seat depth adjustment screws from each side
of the seat. See figure 13.
3. Reposition the seat to the desired seat depth.
4. Reinstall both seat depth adjustment screws to each side of
the seat.
5. Replace the seat cushion.
Seat/Armrest Width Adjustment
You can adjust the seat width by adjusting the armrest width. The
seat/armrests can be adjusted from 40.6 to 50.8 cm (16 to 20 in.).
To adjust the seat width:
1. Remove the seat cushion.
2. Loosen the armrest receiver hardware. See figure 14.
3. Reposition the armrest receiver to the desired seat width.
4. Tighten the armrest receiver hardware.
5. Adjust the width of the other armrest if necessary.
6. Replace the seat cushion.

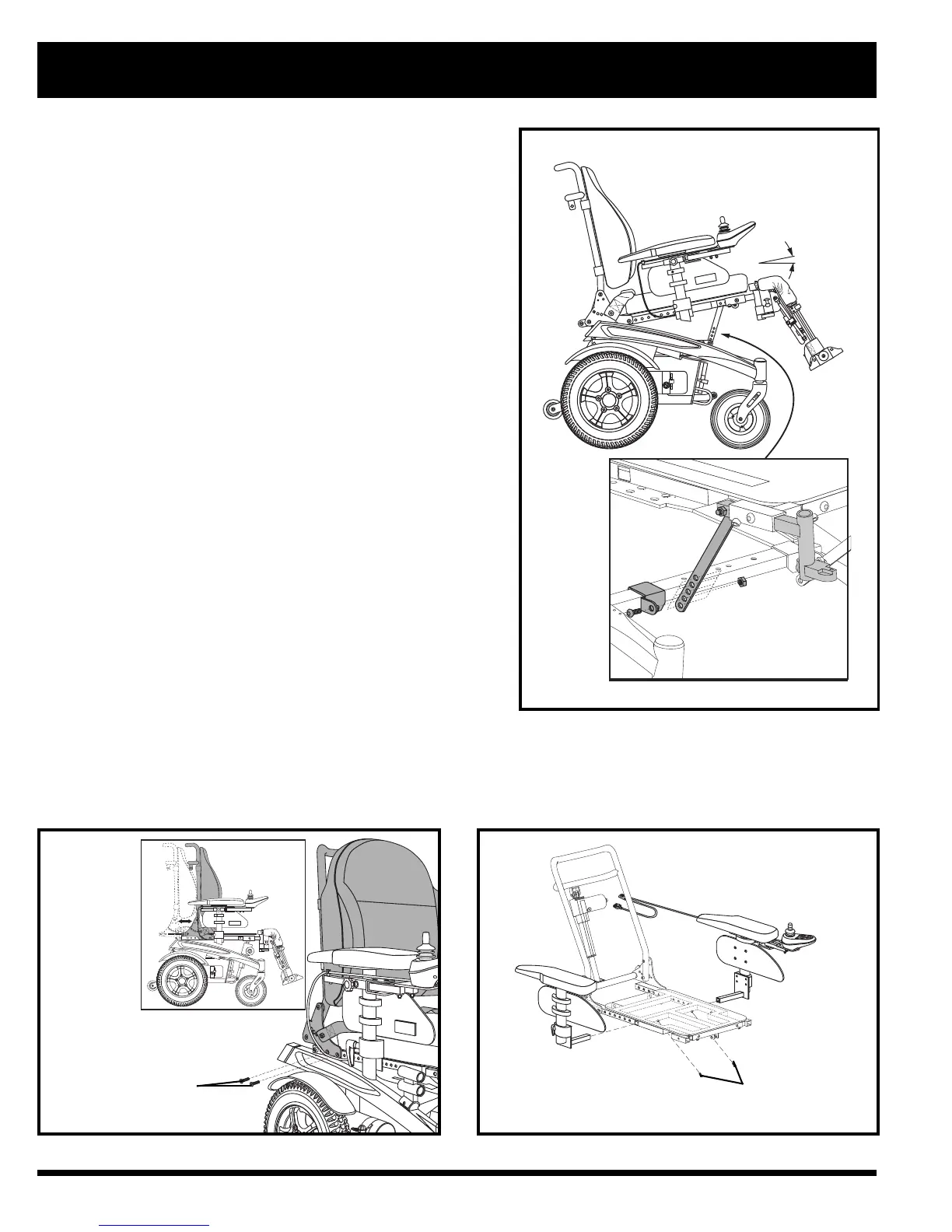

Figure 13. Seat Depth Adjustment Figure 14. Seat/Armrest Width Adjustment
Figure 12. Seat Angle (Dump) Adjustment
SEAT DEPTH
ADJUSTMENT
SCREWS
ARMREST
RECEIVER
HARDWARE
