IV. COMFORT ADJUSTMENTS
Swing-away Footrest (SFR) Removal
The swing-away footrests (SFR) can be moved or removed
to aid in transfers or transporting your power chair.
To move the SFR to the side:
1. Push the release lever to either side. See figure 18.
2. Move the SFR aside.
3. Repeat for the other side if necessary.
To remove the SFR:
1. Move the SFR to the side.
2. Pull the SFR up.
3. Repeat for the other side if necessary.
Swing-away Footrest (SFR) Foot Plate Length
You can change the SFR foot plate length between 33.02-
40.64 cm (13-16 in.) in 2.54-cm (1-in.) increments. This
length is measured from the SFR foot plate to the top of the
SFR.
To change the SFR foot plate length:
1. Remove the screws from the SFR. See figure 19.
2. Adjust the foot plate to the desired length.
3. Reinstall the screws into the SFR.
4. Repeat for the other side if necessary.

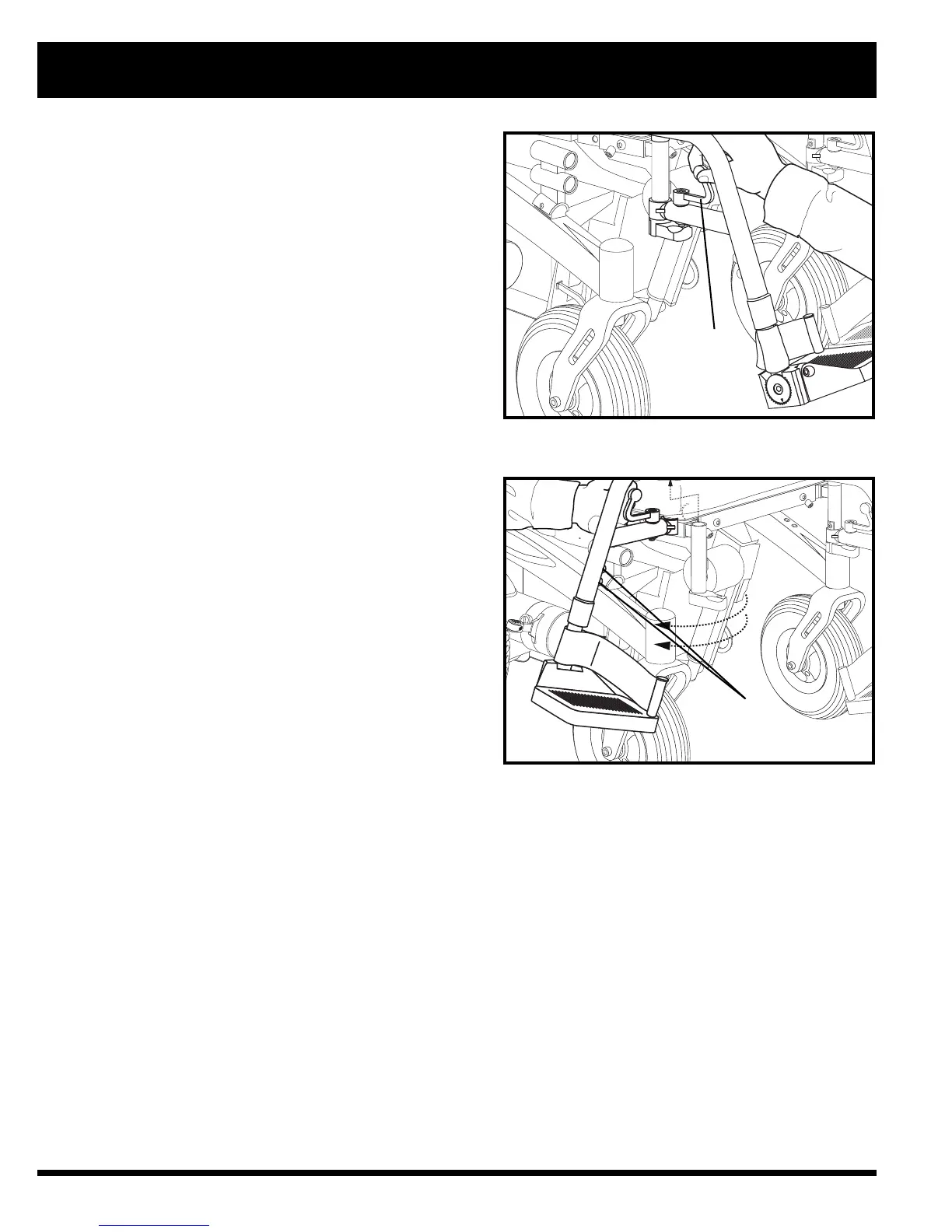

Figure 18. Swing-away Footrest
Figure 19. Swing-away Adjustment
