Pride Mobility Jazzy ZTS User Manual

34 pages

To Next Page

To Next Page

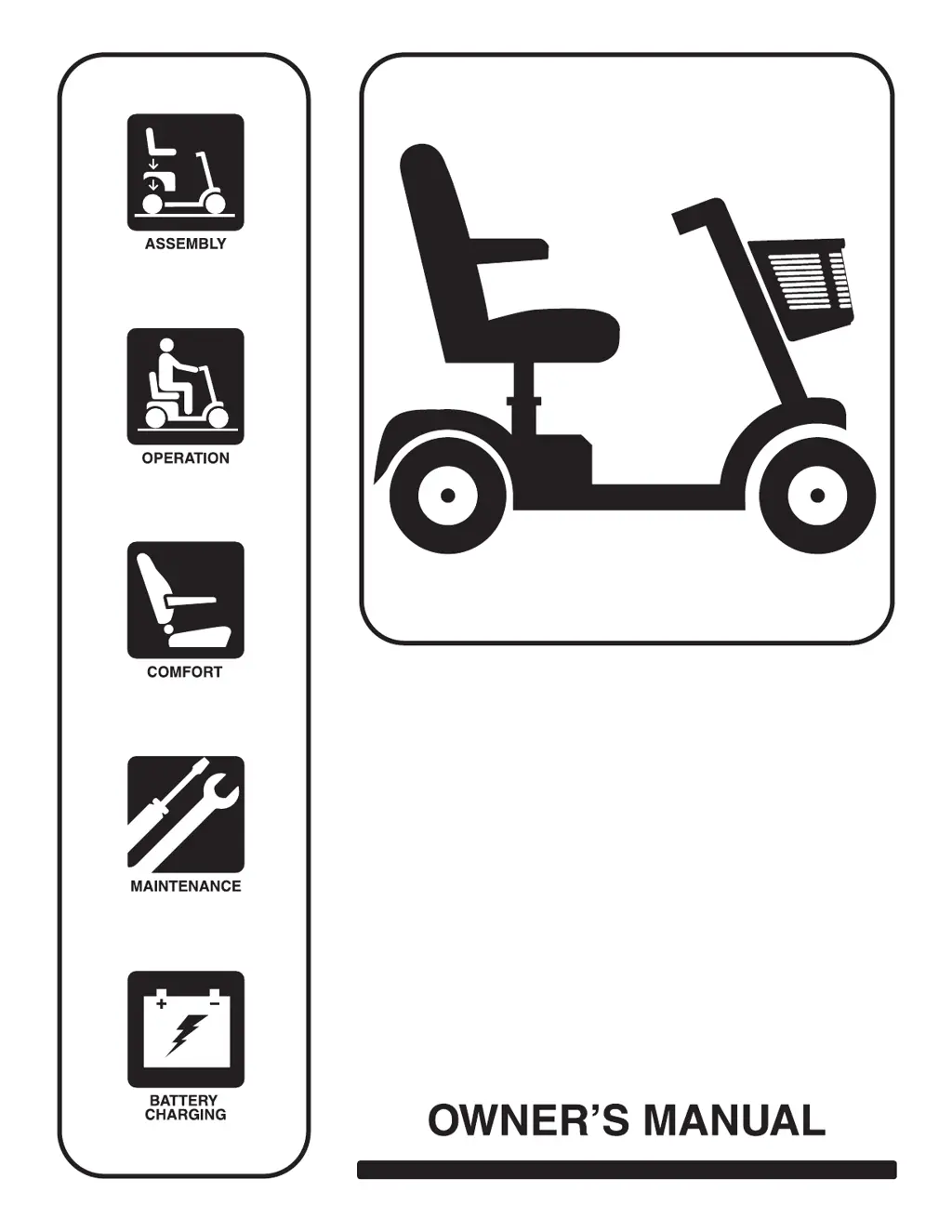

Page #1 background image

Loading...

Page #1 background image

Serial #/série #/serie #

Provider:

Détaillant:

Proveedor:________________________________________________________________________

Address:

Adresse:

Dirección:________________________________________________________________________

Telephone:

Téléphone:

Número de teléfono:________________________________________________________________

Purchase Date:

Date d’achat:

Fecha de compra:___________________________________________________________________

Please ﬁll out the following information for quick reference:

S.V.P. veuillez compléter les informations ci dessous:

Por favor, rellene la siguiente información para tener siempre a mano:

TRAVEL

SCOOTER

SERIES

LITHIUM BATTERY

Table of Contents

Questions and Answers:

K
kimberlyjacksonAug 15, 2025
What to do if all systems on my Pride Mobility Travel Scooter seem dead?
- V
  Vernon LeeAug 15, 2025
  If all systems on your Travel Scooter appear to be dead, ensure the key is in the “on” position and that the batteries are fully charged. Also, push in the main circuit breaker reset button and check that the battery pack is seated properly. For models 36, 83, and 84, make certain that the battery and front-to-rear harnesses are connected properly. Be sure the power down timer feature has not been activated and check the tiller console fuse located under the battery pack.
M
Michelle WareAug 18, 2025
What to do if the Pride Mobility Travel Scooter’s batteries won’t charge?
- B
  Brian BeardAug 18, 2025
  If your Travel Scooter's batteries won't charge, check the fuse located on the battery pack or the console and replace it if necessary. Also, ensure both ends of the charger power cord are connected properly. If the battery pack fuse continually blows, contact your authorized Provider for service.
S
Sean WilliamsAug 21, 2025
Why does the battery condition meter dip way down and the motor surges on my Pride Mobility Travel Scooter?
- R
  rodriguezbenjaminAug 21, 2025
  If the battery condition meter dips way down and the motor surges or hesitates when you press the throttle control lever, fully charge your Travel Scooter’s batteries. You may also have your authorized Provider load test each battery.
K
Kyle SellersAug 25, 2025
What to do if the main circuit breaker repeatedly trips on my Pride Mobility Travel Scooter?
- D
  denise04Aug 26, 2025
  If the main circuit breaker trips repeatedly, see your authorized Provider for service. Charge the Travel Scooter’s batteries more frequently. If the problem continues, have both of your Travel Scooter’s batteries load tested by your authorized Provider. You may also perform the load test yourself. Battery load testers are available at most automotive parts stores.
E
Eric LewisAug 28, 2025
How to fix current limit time out on Pride Mobility Travel Scooter?
- L
  lance12Aug 28, 2025
  If you experience a current limit time out, turn the Travel Scooter off for a few minutes, then turn your Travel Scooter back on.
J
Joseph JonesAug 31, 2025
How to resolve throttle control lever not at center position at start up on Pride Mobility Travel Scooter?
- C
  Chad RuizSep 1, 2025
  If the throttle control lever is not at the center position at start up, verify that the batteries are fully charged. If the batteries are fully charged, then return the throttle control lever to center position, turn Travel Scooter off then back on.
R
reedzacharySep 4, 2025
What to do if the manual freewheel lever is in the freewheel position on my Pride Mobility Travel Scooter?
- K
  Katherine GutierrezSep 4, 2025
  If the manual freewheel lever is in the (forward) freewheel position, remove the key from the key switch, then push the manual freewheel lever to the drive (rearward) position and restart your Travel Scooter.
J
John LawsonSep 7, 2025
What to do if the battery voltage is too high on my Pride Mobility Travel Scooter?
- L
  Laura MillerSep 7, 2025
  If the Travel Scooter’s battery voltage is too high to operate the scooter, or the charger is still connected to the off-board charger port, unplug the charger and/or turn the key off, then back on again. If traveling down a slope, reduce Travel Scooter speed to the minimum setting.
C
Christopher MullinsSep 12, 2025
How to fix too low battery voltage on Pride Mobility Travel Scooter?
- B
  bryanramirezSep 12, 2025
  If the battery voltage is too low to operate the Travel Scooter, charge batteries as soon as possible.

Pride Mobility Jazzy ZTS Specifications

General

Overall Length	42 inches
Battery Type	NF-22
Battery Size	NF-22
Drive Wheels	Rear
Braking System	Regenerative and electromagnetic
Charger Type	Off-board
Drive System	Rear-wheel drive
Tire Type	Solid

Summary

SAFETY

Product Safety Symbols

General Safety Precautions

Covers essential safety advice, user responsibilities, and pre-ride checks for safe operation.

Pre-Ride Safety Checks

Outlines essential checks to perform before operating the scooter for safety.

BATTERIES AND CHARGING

Safe Battery Charging Procedures

Provides essential safety instructions and procedures for charging the scooter's battery.

Maximizing Battery Range and Lifespan

OPERATION

Pre-Operation Checks and Getting Started

Details steps before operation, including checks, mounting, and tiller lock.

Safe Scooter Operation Techniques

Explains how to use controls, steer, accelerate, and brake the scooter safely.

BASIC TROUBLESHOOTING

Understanding Scooter Diagnostic Codes

Explains how diagnostic codes are communicated and what common issues they indicate.

Resolving Operational Issues

Addresses specific problems like the scooter not moving or throttle control lever issues.

Troubleshooting Power and Charging

Provides steps for resolving dead systems, battery charging failures, and circuit breaker trips.
