Q6 Edge Series www.pridemobility.com 23
IV. ASSEMBLY

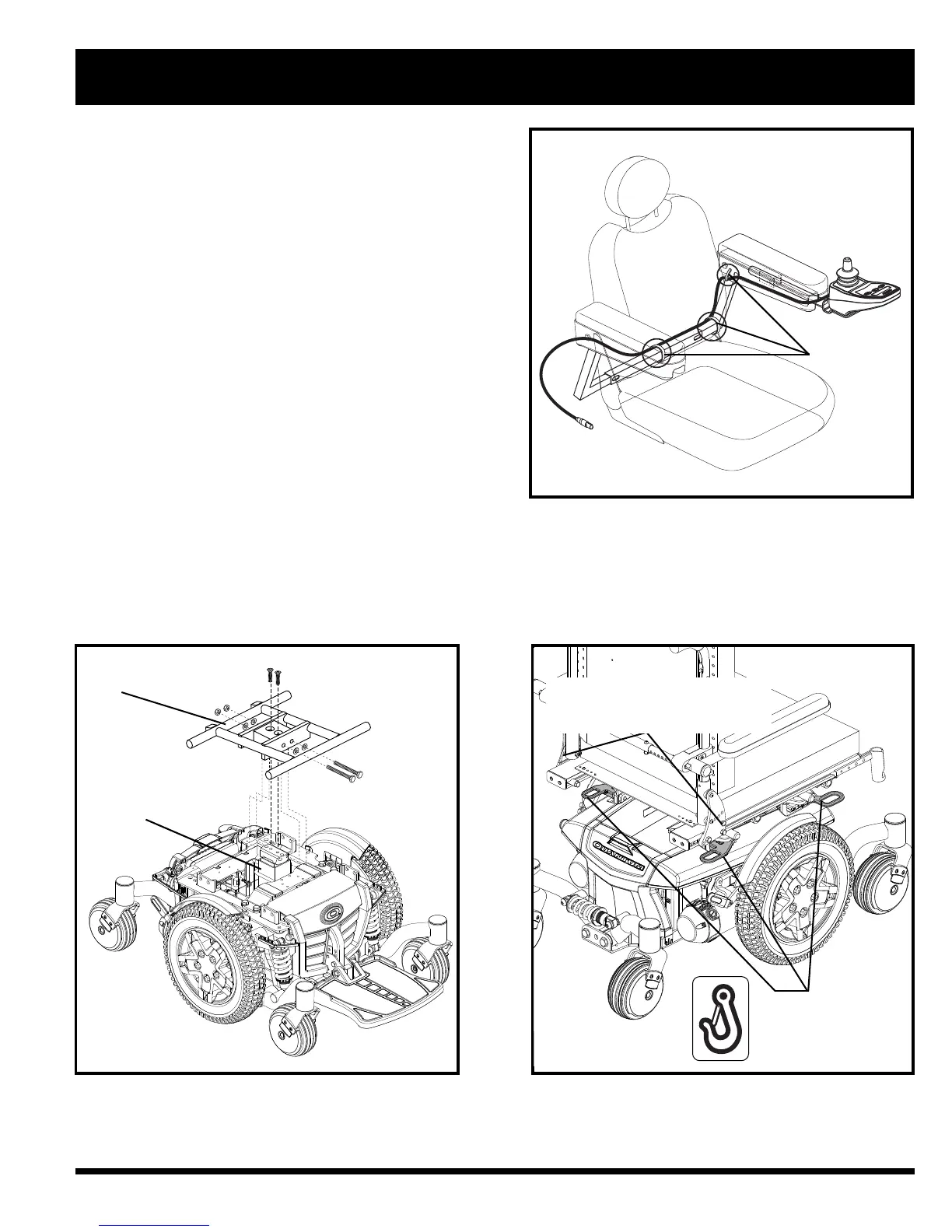

Figure 14. Power Elevating Seat Actuator
ACTUATOR
SEAT PLATE INTERFACE
BRACKET
Figure 13. Controller Harness Routing on a Contour
Seat
Power Elevating Seat Option
Your power chair may be equipped with a power ele-
vating seat option. While the seat itself may be any one
of the styles offered for this model, the way the seat
base attaches to the power base is different.
To install the power elevating seat:
l. Place the seat plate interface bracket onto the actu-
ator. See figure 14.
2. Insert the supplied hardware into the actuator and
tighten the hardware.
3. Place the seating system onto the seat plate and
secure.
4. Plug in the power seat toggle switch harness, if
equipped.
Transit Securement System (Optional)
If your power chair is equipped with a transit
securement system, it is equipped with manufacturer-
installed front and rear securement brackets and
positioning belt anchoring brackets. See figure 15.
Refer to the supplement provided with your power
chair for information on how to use the transit
securement system.
Figure 15. Transit System Securement Brackets
SECUREMENT
BRACKETS
(3 OF 4 SHOWN)
POSITIONING BELT
ANCHORING BRACKET LOCATIONS
(1 OF 2 SHOWN)
