Quantum Q6 Edge www.pridemobility.com 39
VII. CARE AND MAINTENANCE

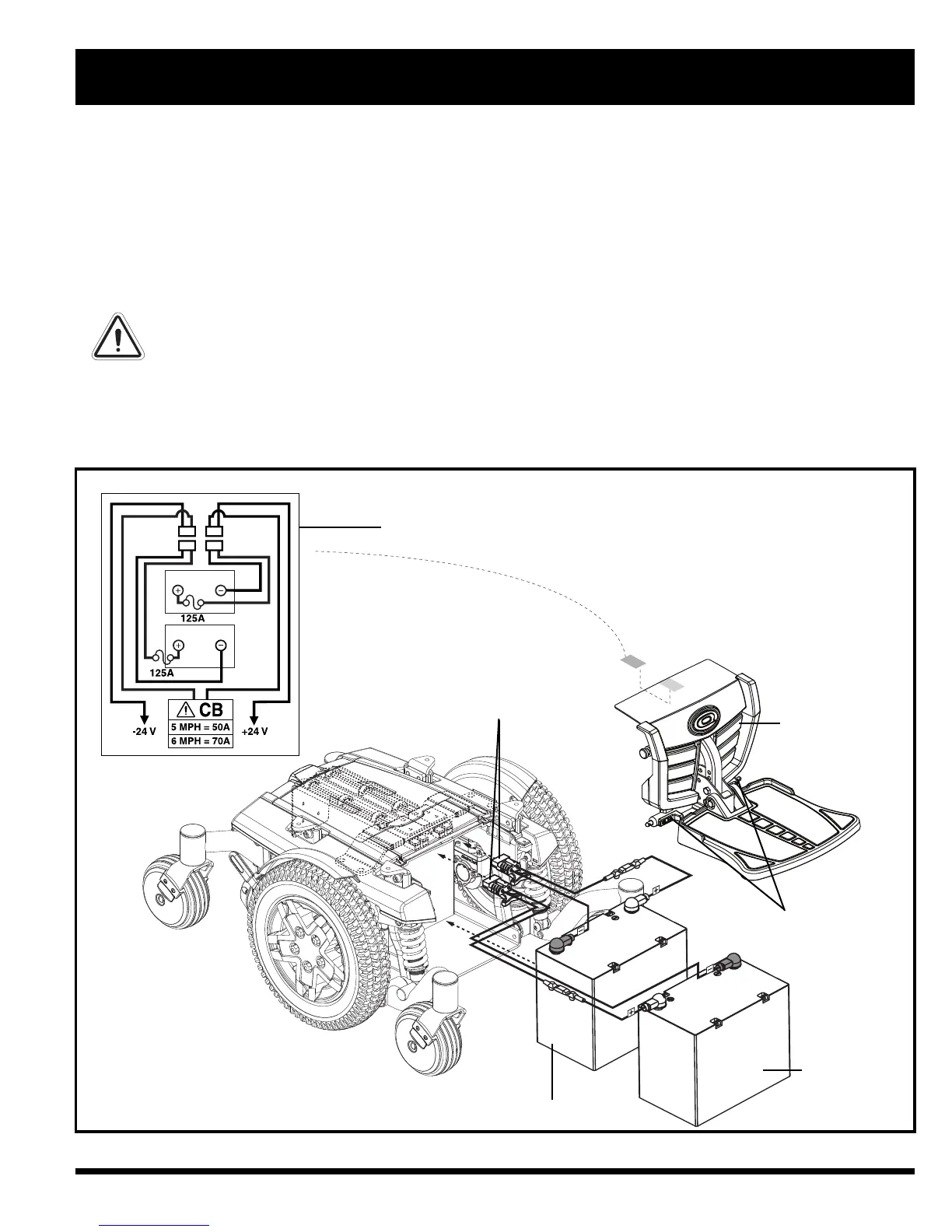

Figure 25. Battery Installation
BATTERY WIRING DIAGRAM LABEL
QUICK RELEASE
BATTERY CONNECTORS
FRONT BATTERY
REAR BATTERY
FRONT COVER
To replace the batteries:
1. Turn off the power to the controller.
2. Make sure that the power chair is in drive mode. See III. “Your Power Chair.”
3. Remove the front cover by squeezing the release handles (see figure 25) and lifting the foot platform bracket
up and away from the power base.
4. Disconnect the quick release battery connectors. See figure 7.
5. Remove the batteries.
6. Disconnect the battery harness from each battery.
7. Connect the battery harness to the new front battery according to the battery wiring diagram. See figure 25.
WARNING! Make sure you tighten the fasteners so that the connections are secure.
8. Connect the battery harness to the new rear battery according to the battery wiring diagram. See figure 25.
9. Install the new batteries and connect the quick release battery connectors.
10. Reinstall the front cover and foot platform.
11. Charge the batteries. See VI. “Batteries and Charging.”
RELEASE HANDLES
