18 www.pridemobility.com Quantum 6000 Series
III. YOUR POWER CHAIR
Main Circuit Breaker (located on the rear main frame): The main circuit breaker is a safety feature built into
your power chair. When the batteries and the motors are heavily strained (e.g., from excessive loads), the main
circuit breaker trips to prevent damage to the motors and the electronics. If the circuit trips, allow your power chair
to “rest” for approximately one minute. The circuit breaker will reset itself. Turn on the controller, and continue
normal operation. If the main circuit breaker continues to trip repeatedly, contact your Quantum Rehab Provider.

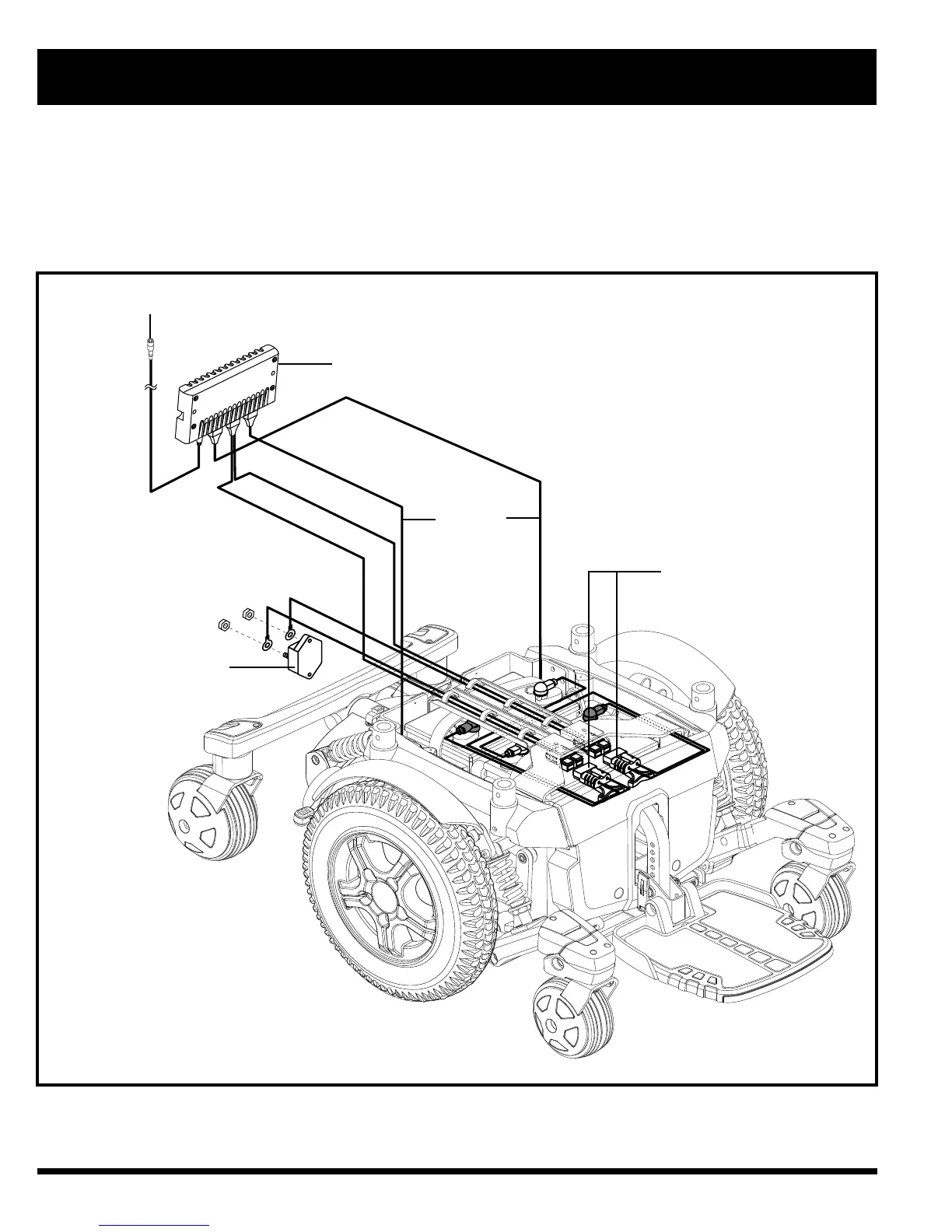

Figure 7. Quantum 6000 Series Electrical Components
QUICK RELEASE
BATTERY CONNECTORS
MAIN CIRCUIT BREAKER
CONTROLLER POWER MODULE
TO MOTOR
CONNECTOR
CONTROLLER CONNECTOR
