Quantum 6000 Series www.pridemobility.com 23
IV. ASSEMBLY

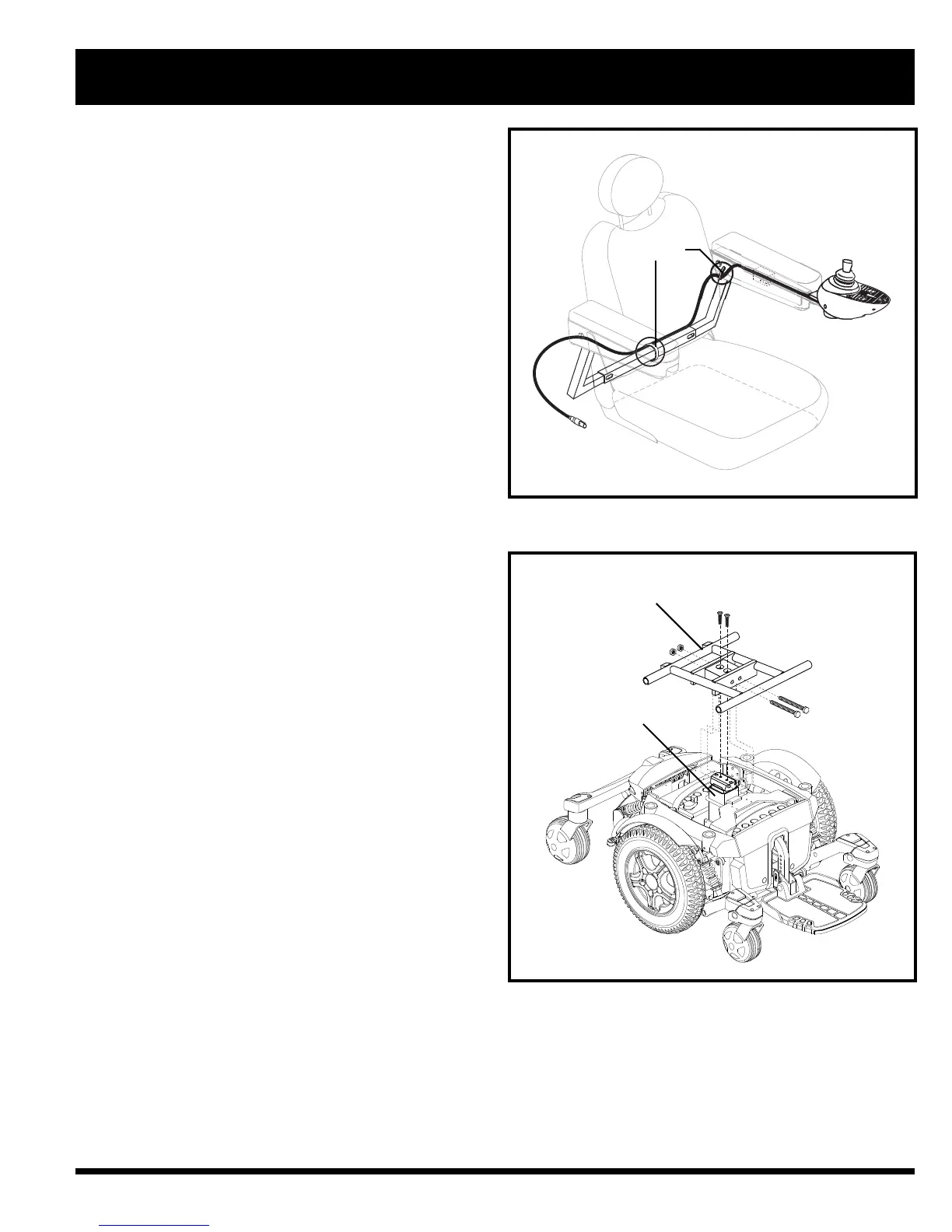

Figure 14. Power Elevating Seat Actuator
ACTUATOR
SEAT PLATE INTERFACE BRACKET
Figure 13. Controller Harness Routing on a Contour
Seat
Power Elevating Seat Option
Your power chair may be equipped with a power ele-
vating seat option. While the seat itself may be any one
of the styles offered for this model, the way the seat
base attaches to the power base is different.
To install the power elevating seat:
l. Place the seat plate interface bracket onto the actu-
ator. See figure 14.
2. Insert the supplied hardware into the actuator and
tighten the hardware.
3. Place the seating system onto the seat plate and
secure.
WIRE TIES
