Jazzy Air www.pridemobility.com 7
III. YOUR POWER CHAIR
THE JAZZY AIR POWER CHAIR
The Jazzy Air Power Chair has two main assemblies: the seat assembly and the power base assembly. See fi g-
ure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly
includes two motor/brake assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
See fi gures 1, 2, and 3.

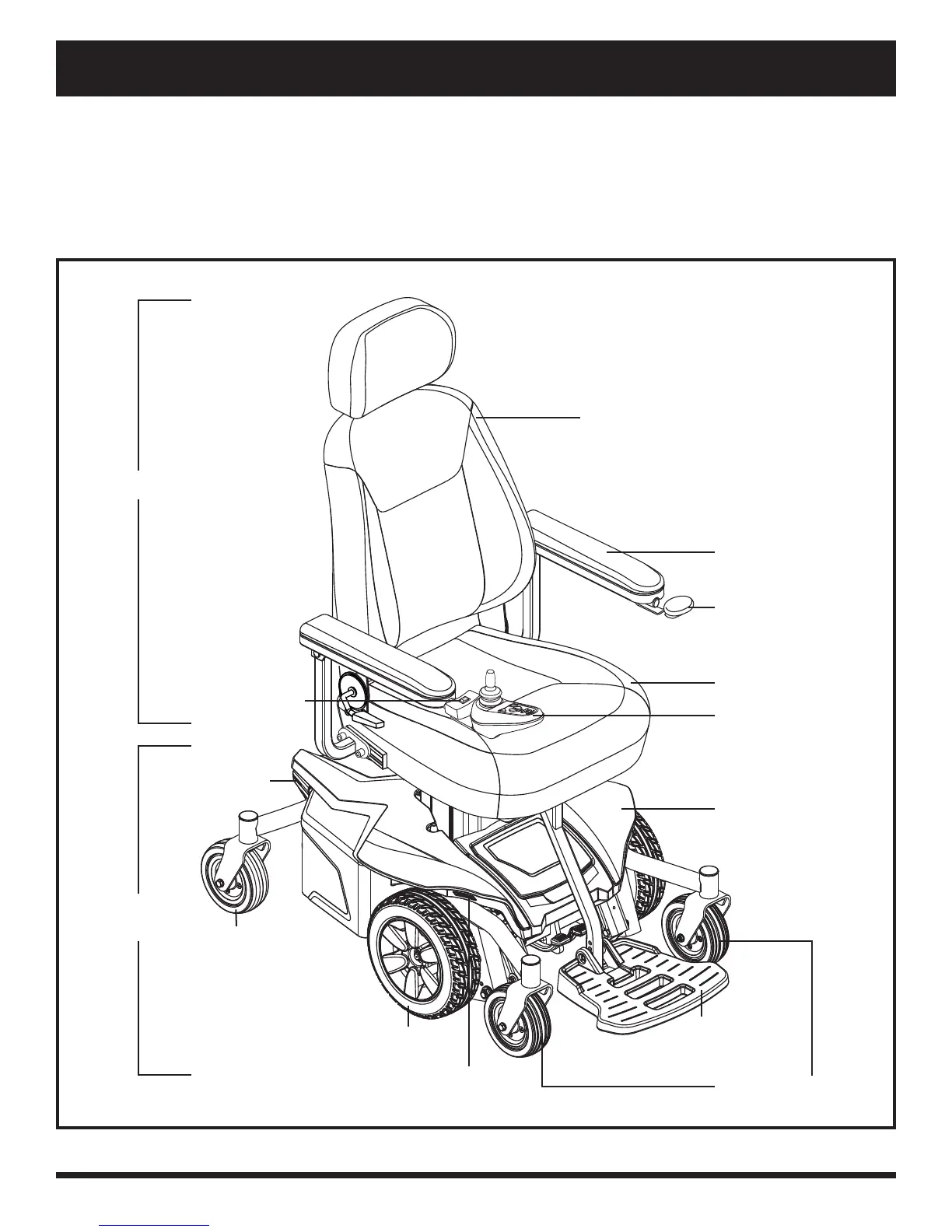

Figure 1. The Jazzy Air Power Chair
SEAT ASSEMBLY
POWER BASE
ASSEMBLY
SEATBACK
ARMREST
SEAT BASE
CONTROLLER
BODY SHROUD
CASTER WHEEL
DRIVE WHEEL
FRONT RIGGING
(FOOT PLATFORM
SHOWN)
CASTER WHEELS
MARKER LIGHTS
SINGLE SWITCH
(FOR LIFTING COLUMN)
ON/OFF SWITCH
(FOR MARKER LIGHTS)
MARKER LIGHTS
