III. YOUR POWER CHAIR

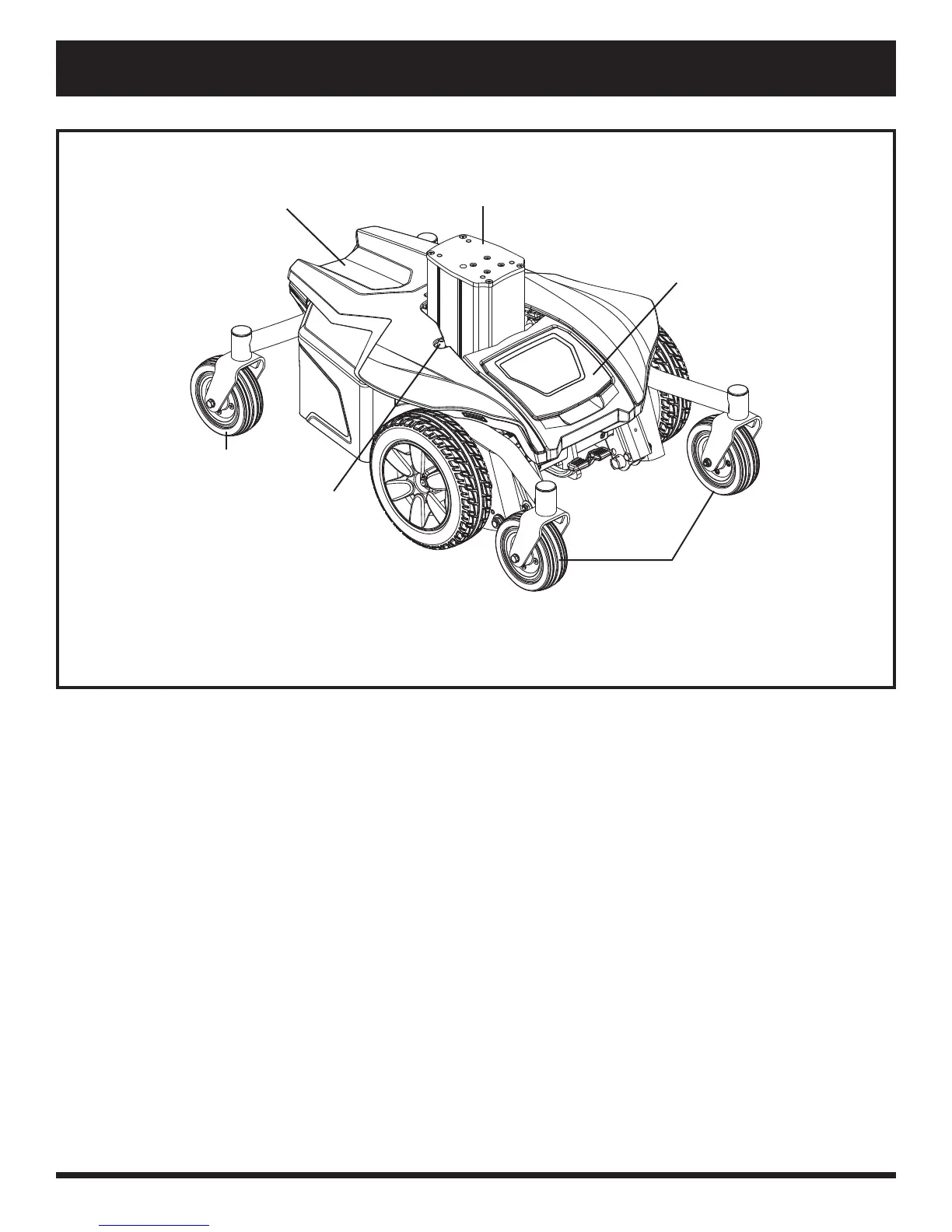

Figure 2. The Jazzy Air Power Base
MAIN CIRCUIT
BREAKER
FRONT CASTER WHEELS
LIFTING COLUMN
FRONT COVER
REAR CASTER WHEEL
TOP SHROUD
Electrical Components
The electrical components are located either on or inside the power base. The main circuit breaker is located on
the side of the power base. The power module is located under the front cover. See fi gure 3.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.
Power Module: Provides connection between the joystick module and the motors, batteries, and off-board charger.
