Jazzy 623 www.pridemobility.com 13
IV. ASSEMBLY

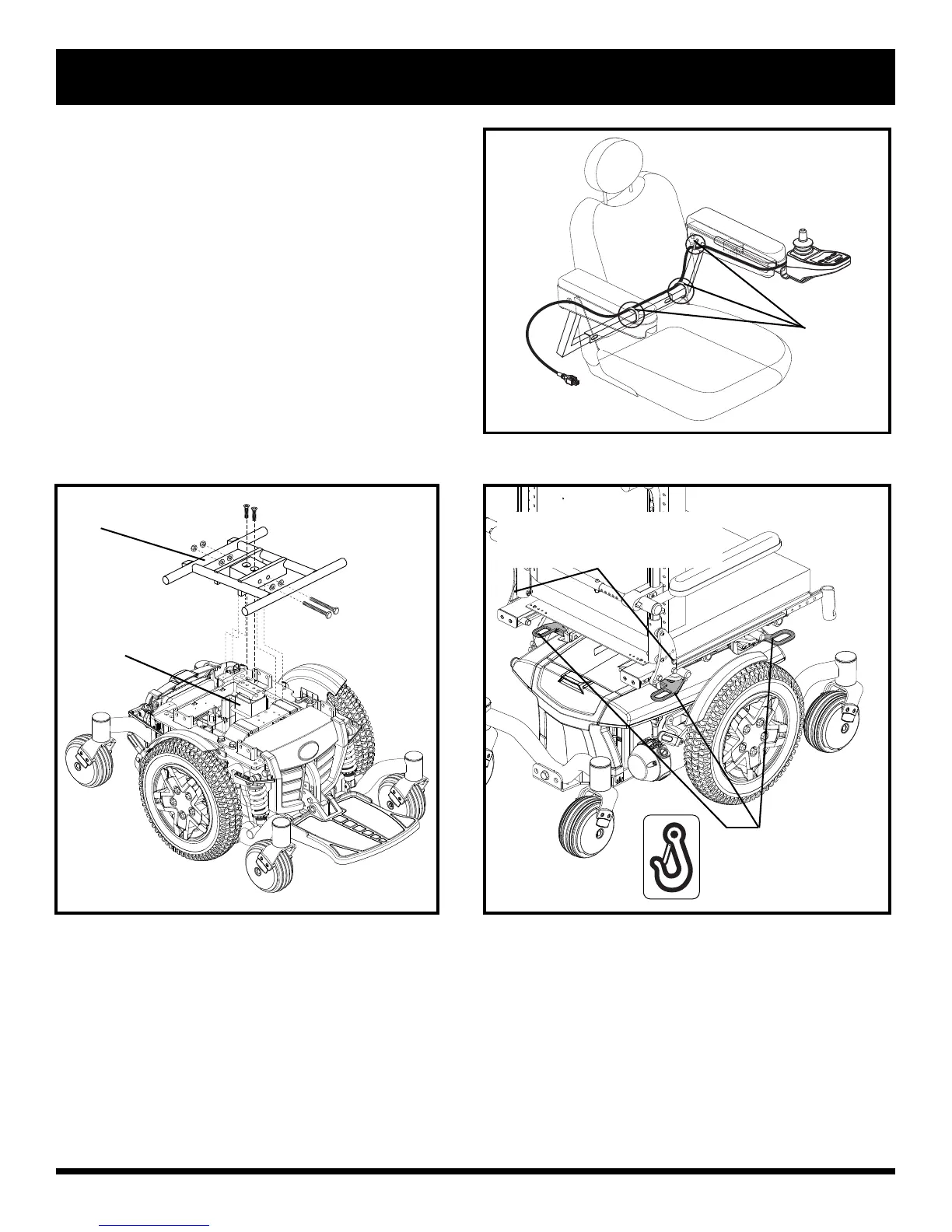

Figure 9. Controller Harness Routing on a Contour Seat
Power Elevating Seat Option
Your power chair may be equipped with a power ele-
vating seat option. While the seat itself may be any one
of the styles offered for this model, the way the seat
base attaches to the power base is different.
To install the power elevating seat:
l. Place the seat plate interface bracket onto the actu-
ator. See figure 10.
2. Insert the supplied hardware into the actuator and
tighten the hardware.
3. Place the seating system onto the seat plate and
secure.
4. Plug in the power seat toggle switch harness, if
equipped.
ACTUATOR
SEAT PLATE INTERFACE
BRACKET
Figure 10. Power Elevating Seat Actuator Figure 11. Transit System Securement Brackets (Syn-
ergy Seat Shown)
SECUREMENT
BRACKETS
(3 OF 4 SHOWN)
POSITIONING BELT
ANCHORING BRACKET LOCATIONS
(1 OF 2 SHOWN)
TO POWER BASE
WIRE TIES
