V. COMFORT ADJUSTMENTS
Foot Platform Height Adjustment
The foot platform height is easily adjusted to different heights.
To raise or lower the foot platform:
1. Remove the hardware from the foot platform bracket. See fi gure 16.
2. Raise or lower the foot platform to the desired height.
3. Reinstall the hardware into the foot platform bracket and tighten.
Foot Platform Depth Adjustment
You can adjust the depth of the foot platform.
To adjust the foot platform depth:
1. Remove the hardware from the foot platform bracket. See fi gure 16.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the hardware into the foot platform bracket and tighten.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the screw. See fi gure 16.
2. Turn the screw to raise or lower the front of the foot platform.

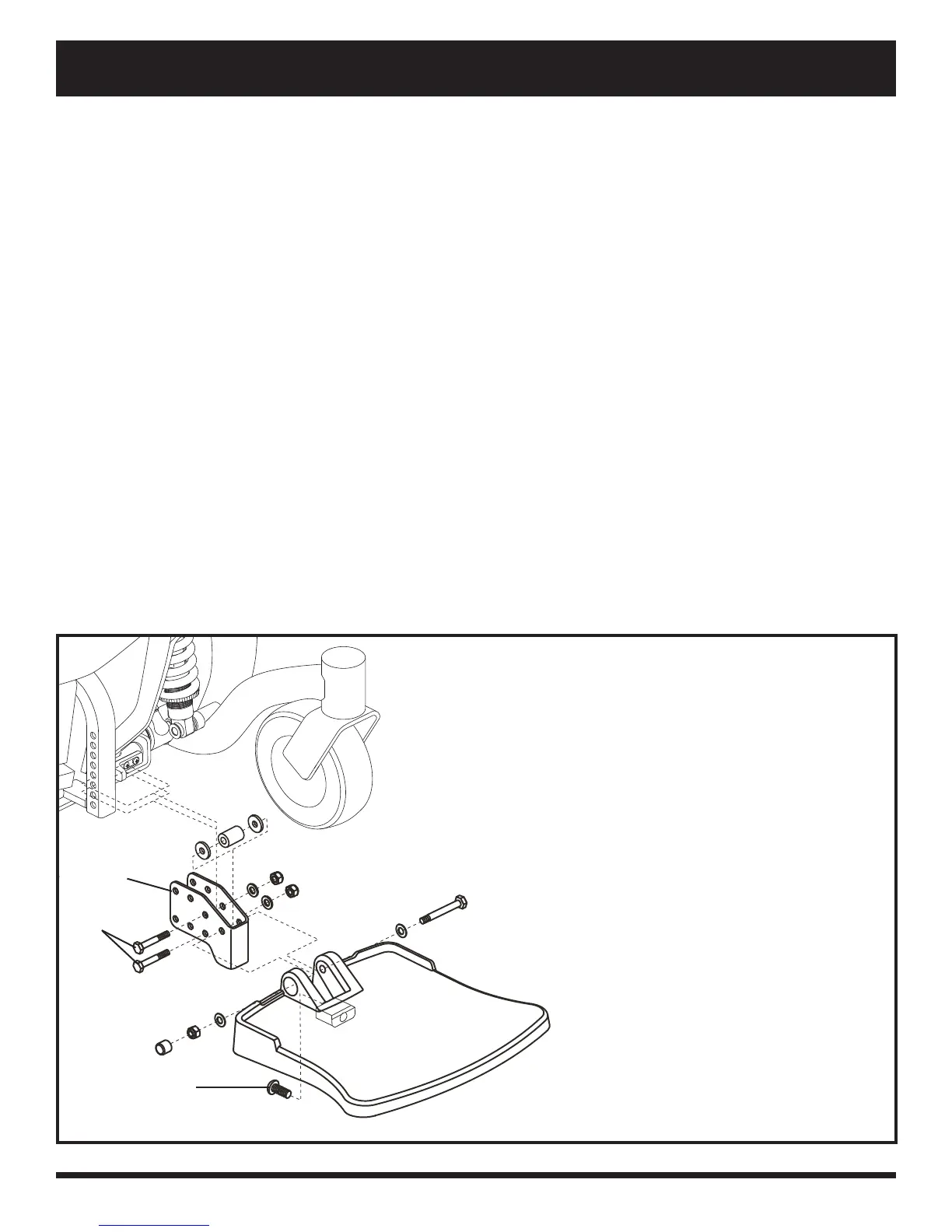

Figure 16. Foot Platform Adjustment
SCREW
HARDWARE
FOOT
PLATFORM
BRACKET
