BATTERY CONDITION METER
ON/OFF KEY
HORN KEY
SPEED/PROFILE
DECREASE KEY
MAXIMUM SPEED/
PROFILE INDICATOR
SPEED/PROFILE
INCREASE KEY
LEFT INDICATOR KEY RIGHT INDICATOR KEY
ACTUATOR SELECT KEY
HEADLIGHT KEY
HAZARD LIGHT KEY
V. COMFORT ADJUSTMENTS
Power Positioning Systems Adjustment
Your power chair may be equipped with a power recline, power tilt or power elevating leg rest system. You can
change the position of these options through the controller.
WARNING! Do not allow the motor to run more than a few seconds after the mechanism reaches
the top or bottom limit.
NOTE: For more information on operating the power positioning systems, refer to the information supplied in
supplemental manuals or contact your Quantum Rehab Provider.
WARNING! The power positioning systems are intended for use on a level surface only. Never
operate your power chair while tilted or reclined on an inclined surface. Failure to heed this
warning can result in the power chair tipping over.
WARNING! Never operate your power chair while tilted or reclined on bumpy or uneven surfaces.
Failure to heed this warning can result in the power chair tipping over.
WARNING! Never operate the power positioning systems while your power chair is in the
freewheel mode.
WARNING! Always fasten the positioning belt when operating the power positioning systems.
WARNING! Pinch Point Hazard! Keep area around actuator clear when operating the power
positioning systems or returning to your starting position.

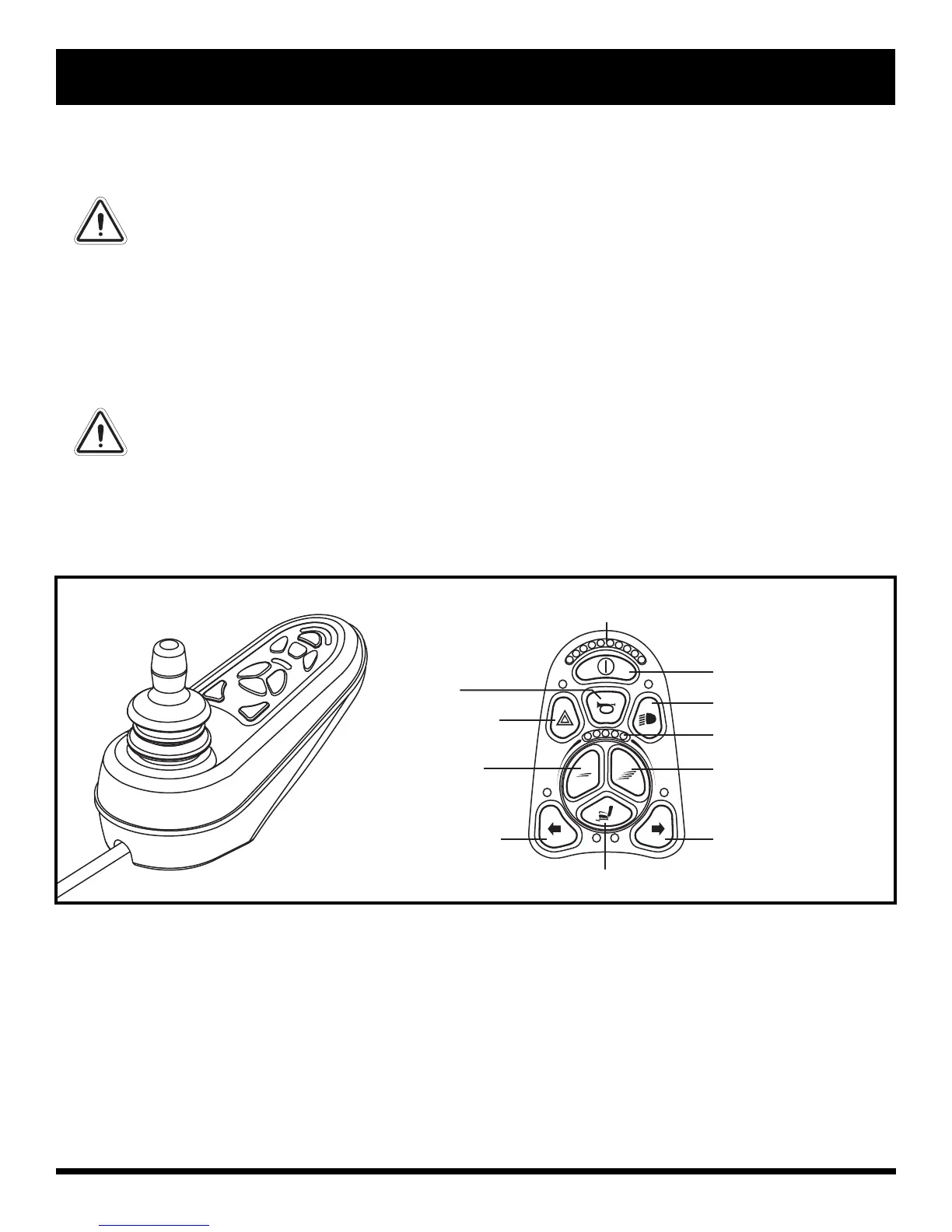

Figure 12. Controller and Keypad
