III. YOUR POWER CHAIR
THE QUANTUM Q4 POWER CHAIR
Your power chair has two main assemblies: the seat assembly and the power base assembly. See figure 1. Typically,
the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
See figures 1, 2, and 3.

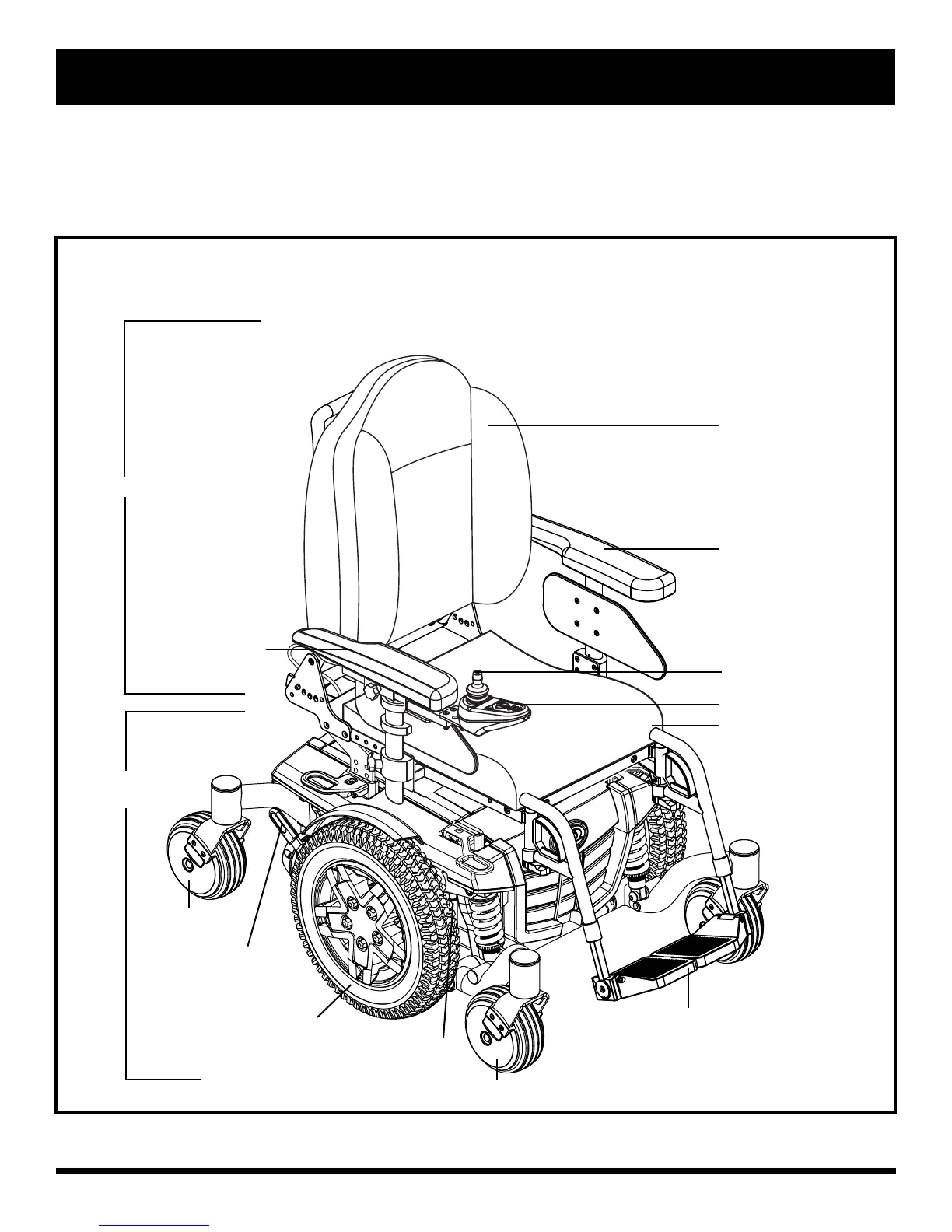

Figure 1. The Quantum Q4 Power Chair
SEATBACK
DRIVE WHEEL
CASTER WHEEL
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FRONT RIGGING
SEAT BASE
CONTROLLER
CASTER WHEEL
MANUAL
FREEWHEEL
LEVER
ARMREST
ARMREST
SPRING SHOCK/
GAS DAMPER
LOCATION
