Toggle Latch Release
1. Push in the toggle latch release button while pulling back the toggle latch. See figure 18.
2. Position the toggle latch buckle over the top of the toggle latch. See figure 19.
3. Lower the tiller to the scooter floorboard and fully tighten the tiller adjustment knob.
VIII. DISASSEMBLY AND ASSEMBLY

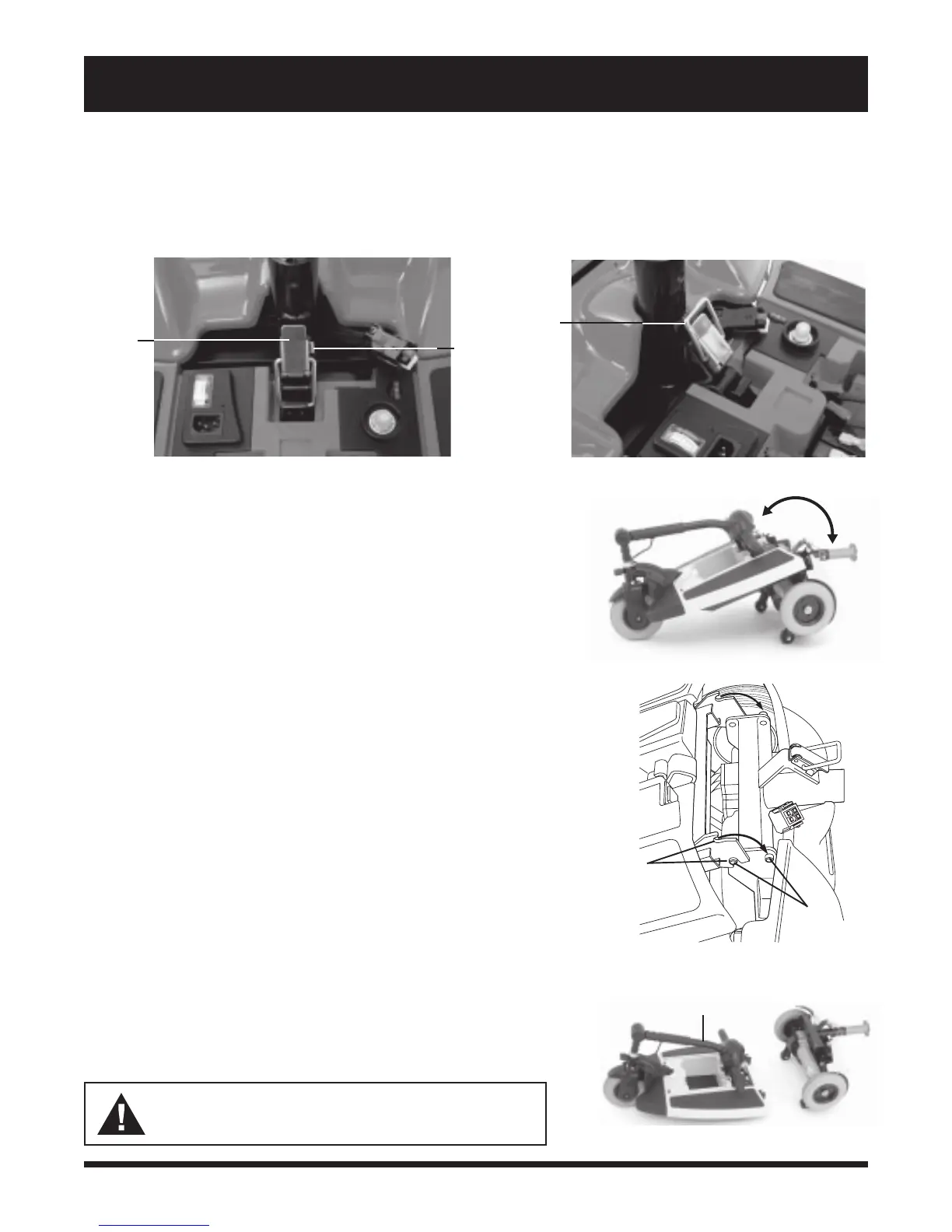

FIGURE 19. TOGGLE LATCH
TOGGLE
LATCH
TOGGLE
LATCH
RELEASE
BUTTON
FIGURE 18. TOGGLE LATCH
TOGGLE
LATCH
BUCKLE
Frame Separation
1. Push back on the seat post to pivot the scooters rear section
rearwards until the rear section is standing vertically on its rear
bumper. See figure 20.
2. Lift the front section up until the lower pegs are no longer in the
slots. See figure 21.
3. Carefully lift the front section vertically away from the rear sec-
tion.
ASSEMBLY
1. Position the front and rear sections of your scooter as shown in
figure 22.
2. Use the tiller handle to lift the front section as you align the
lower slots of the front section with the corresponding pegs on
the front of the rear section. See figure 21.
3. Holding the seat post, slowly pivot the rear section forward
until the curved locking brackets are fully connected onto the
top rear pegs. See figure 20.
4. Raise the tiller and fully tighten the tiller adjustment knob.
5. Secure the toggle latch. See figure 18.
n Lower the toggle latch buckle.
n Push back on the toggle latch so it locks into place.
6. Connect the motor harness and both battery harnesses.
7. Replace the battery compartment lid.
8. Replace the seat and rotate it until it locks into place.
9. Unlock the front wheel by turning the tiller lock knob 90
degrees anticlockwise. See figure 16A.
FIGURE 22. FRAME HALVES
TILLER HANDLE
SLOTS
PEGS
FIGURE 20. FRAME POSITIONING
FIGURE 21. FRAME LOCKUP
WARNING! After assembling the Sonic make abso-
lutely certain the tiller lock is in the unlocked posi-
tion before attempting to ride your scooter.
