Pridiom AWS 091HX - Display and Control Panel; Unit Indicators; Operation Panel Layout

C
h
Dehumidifing
indicator
Cooling
indicator
Heating indicator
(cooling and
heating model)
Auto mode
indicator
Sleeping
indicator
Timer time
indicator
Setting temperature and
malfunction code indicator
Flap swinging
indicator
Indoor fan motor running display
Fan speed indicator

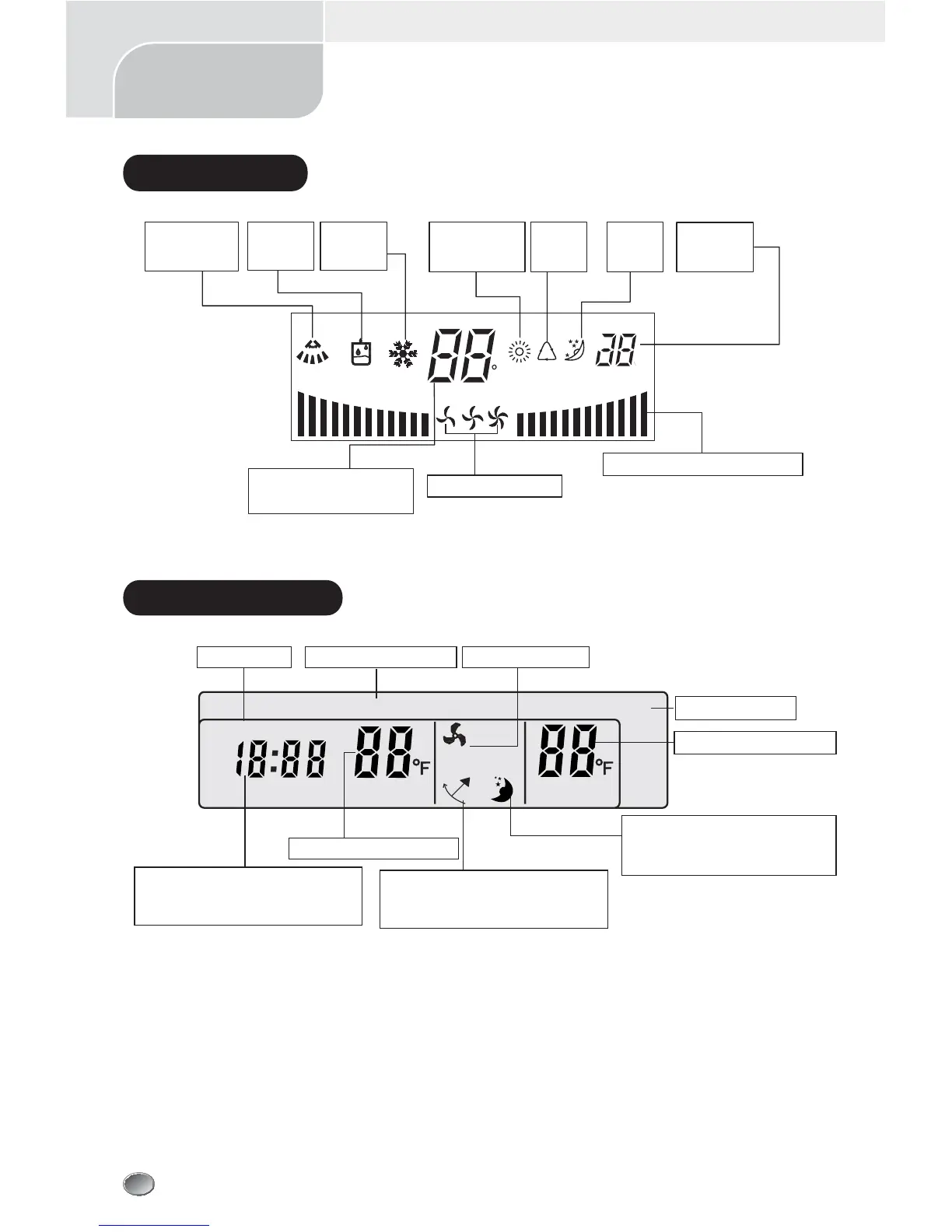

Indications of unit
TIMER ON
COOL DRY HEAT
DEF
TIMER OFF
ERROR
TIME
TEM
AUTO FAN
SET
Operation Panel Display
Defrosting indicator
Room temperature indicator
Operation mode indicator
Timer indicator
Sleeping indicator(when sleep
operation is slected by remote
controller,this indicator will display)
Fan speed indicator
Air flow indicator(when som air flow
direction is slected by remote controller,
this indicator will display)
Setting temperature indicator
H
M
L
AM
PM
RT
In usual,it indicates present time;In timer
operation,it indicates timer time;In failure
operation,it indicates malfunction code.
4
Above figure shows all indications for the purpose of the explanation but practically only the partinent parts are indicated.
The indicator may be changed,but it does not affect your operation.
