Operational performance/indications
h
h
This button can be used as an emergency measure to turn on/off
unit when remote controller is not available.
Lightly push both sides of the air inlet grid at the
bottom and pull it to this side till a resistance is felt.
3
*
Note: Do not open the grid at an angle over 60 degrees. Do not operate the units with too much force.
*

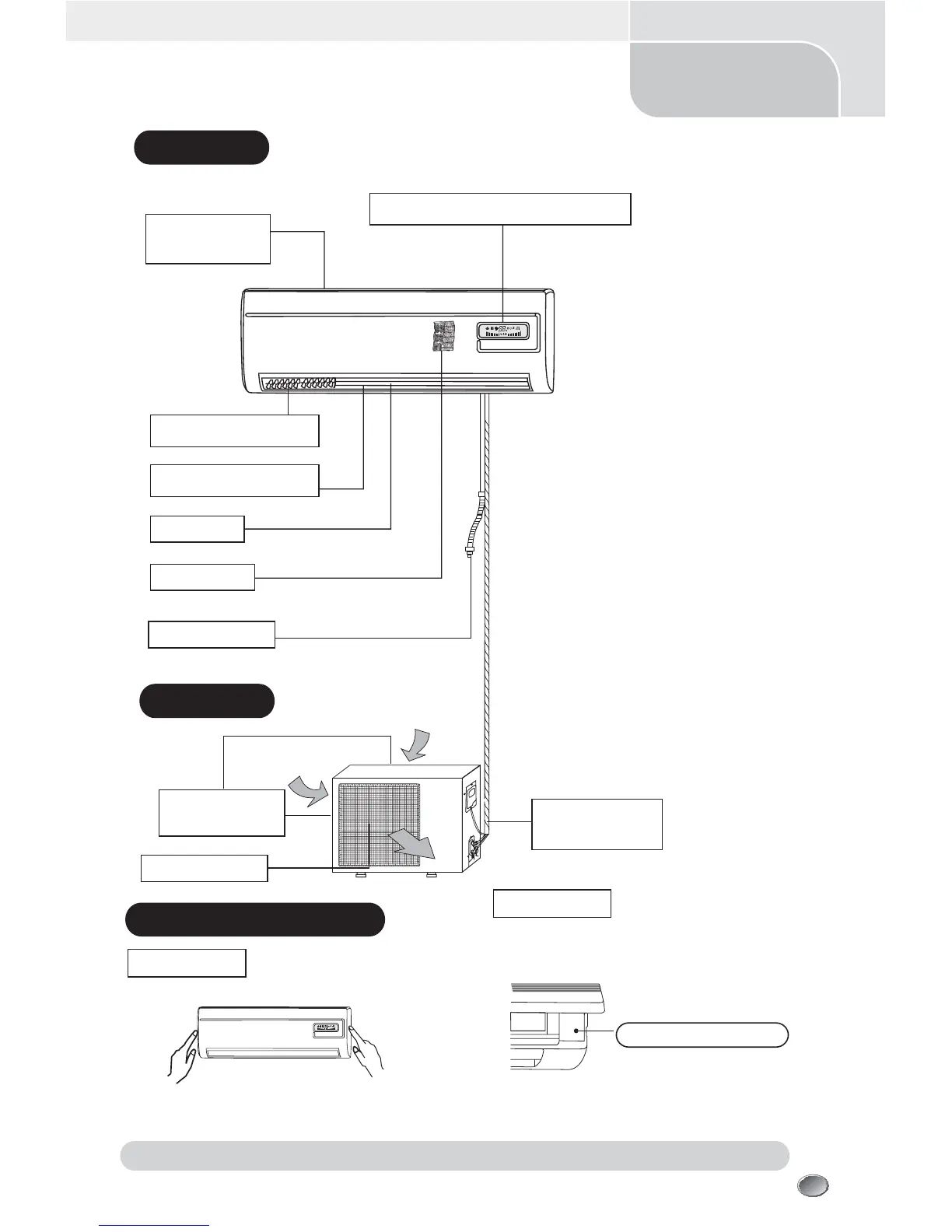

The name of each part and its function
*
USER'S MANUAL
Split Wall-Mounted Air Conditioner
How to close
Push down the air inlet grid and then push both sides of air inlet
grid at the bottom.
How to open
Unit operation section
Emergency operation key
Air discharge vent
Air inlet
at sides & rear surface
Refrigerant piping
connection, Electric
wiring cord
Air blows out from here
Air return grid
Takes in the indoor air
Lelf/right air flow direction
adjusting fin
Air outlet
Air filter
Removes dust or dirt out of the inlet air
Drain the water dehumidified out of the air
Indoor Unit
Up/down air flow direction
adjusting flap
Outdoor Unit
Drain tube
