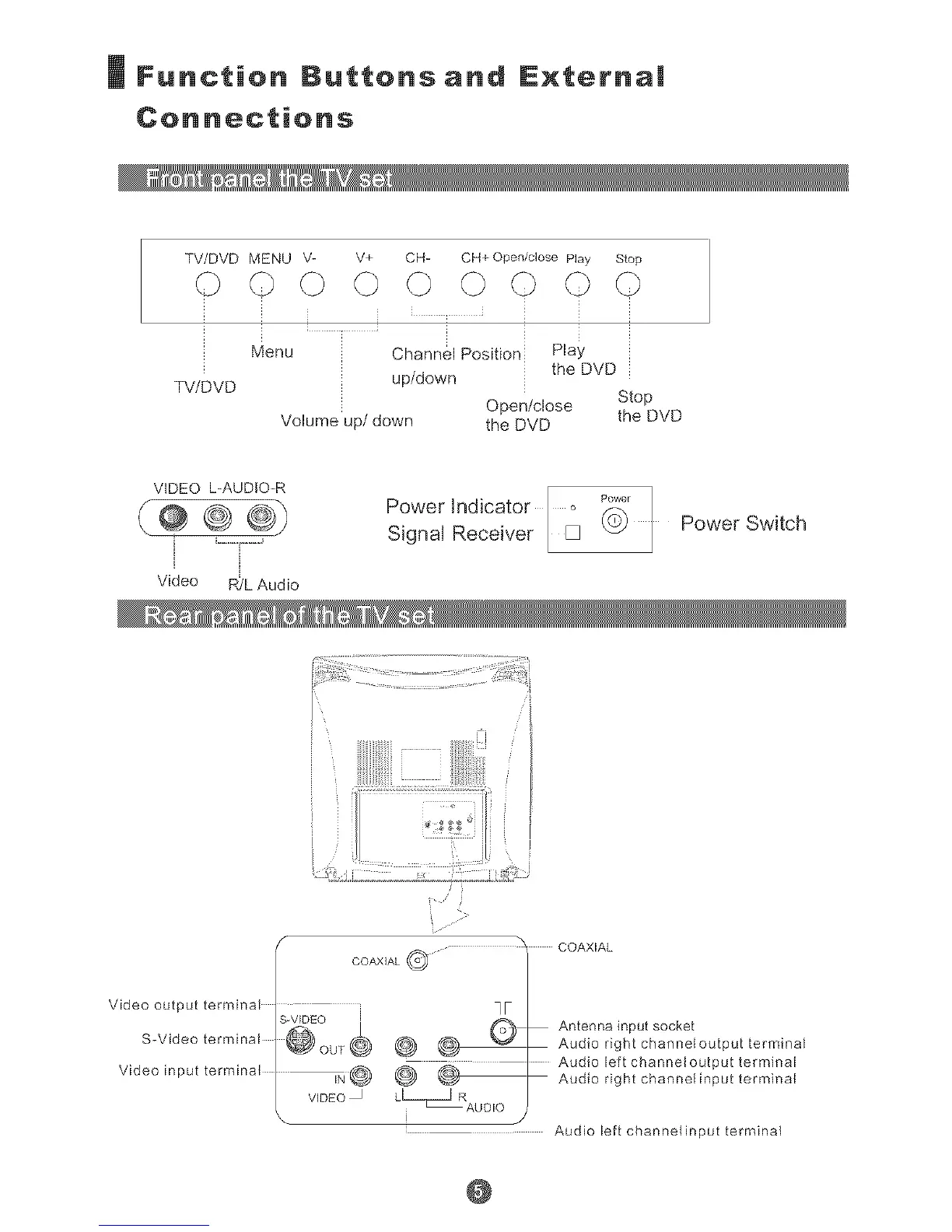

Function Buttons and External
Connections
TV/DVD MENU V- V+ CH- CH+Open/close Play Stop
TV/DVD
i [ , s i
' i • i
Menu Channel Position Play
the DVD
up/down
Open/close Stop
Volume up/down the DVD the DVD
VIDEO L-AUDIO-R
Video R/L Audio
Power Indicator
Signal Receiver
_r Power Switch
Video otJtpLJt terminal
S-Video terminal
Video input terminal
VIDEO •
COAXIAL
COAXIAL @ .....
IF
Antenna input socket
Audio right channeloutput terminal
Audio leR channeloutput terminal
Audio right channel input terminal
i
Audio left channelinput terminal
@
