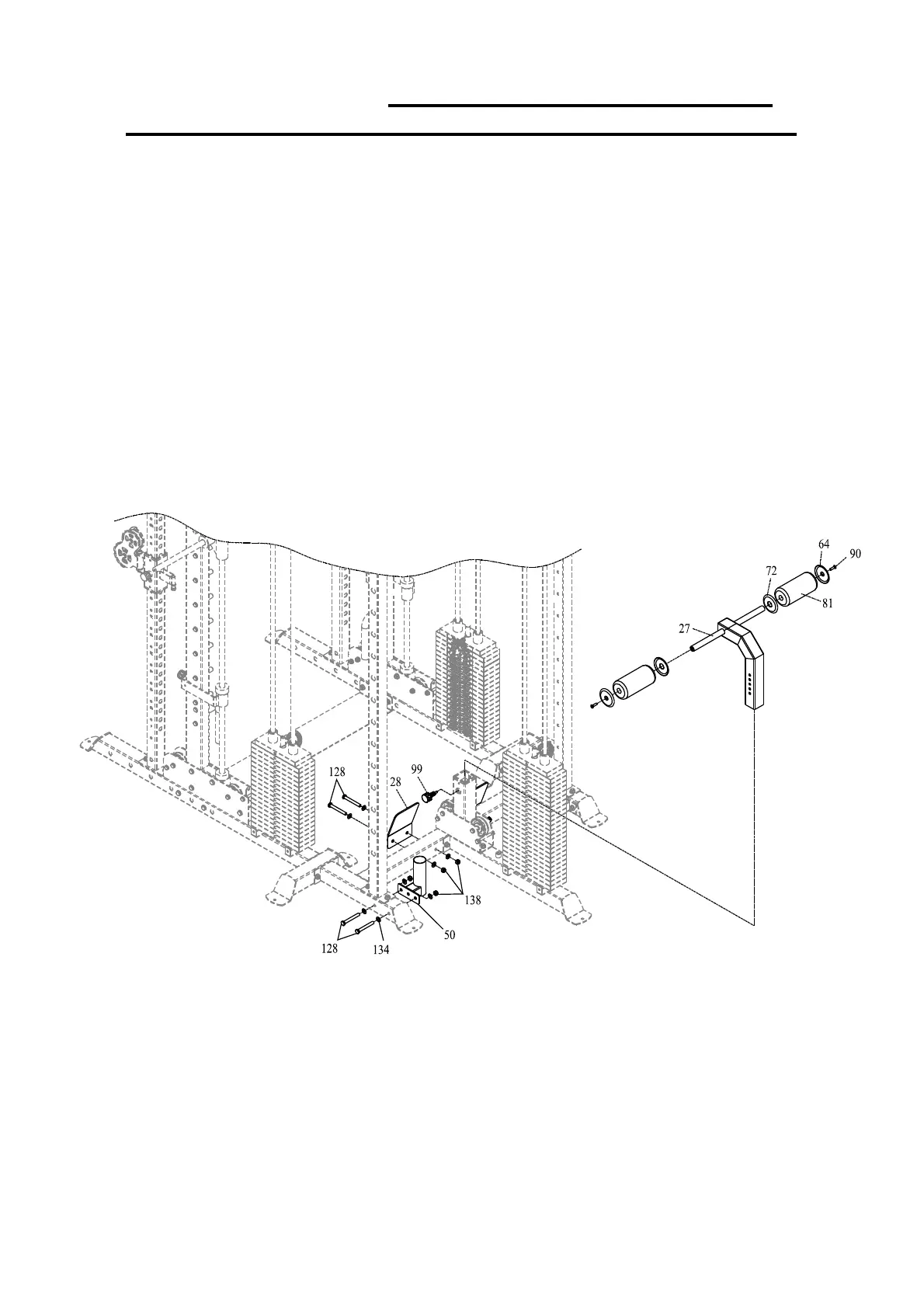

ASSEMBLY DIAGRAM 9 USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: Only hand tighten all nuts and bolts until whole machine is assembled
1. Attach DIAMOND PLATE (28) to REAR BASE A (20) with BOLT M12*95 (128), WASHER 12
(134)andLOCKNUTM12(138).
2. AttachBARHOLDER(50)toREARBASEA(20)withBOLTM12*95(128),WASHER12(134)
andLOCKNUTM12(138).
3. AttachHANDLESUPPORT(26)toHANDLE
FRAME(25)withBOLTM12*115(130),WASHER
12(134),LOCKNUTM12(138)andPIN(90).
4. InsertFOAMWITHCOVER(81)toADJUSTABLEFOAMTUBE(27)withFOAMCAP(OU TSIDE)
(64),FOAMCAP(INSIDE)(72)andBOLTM8*20(90).AttachADJUSTABLEFOAMTUBE(27)
toFOAMSUPPORT(25)withFASTPIN(99).
