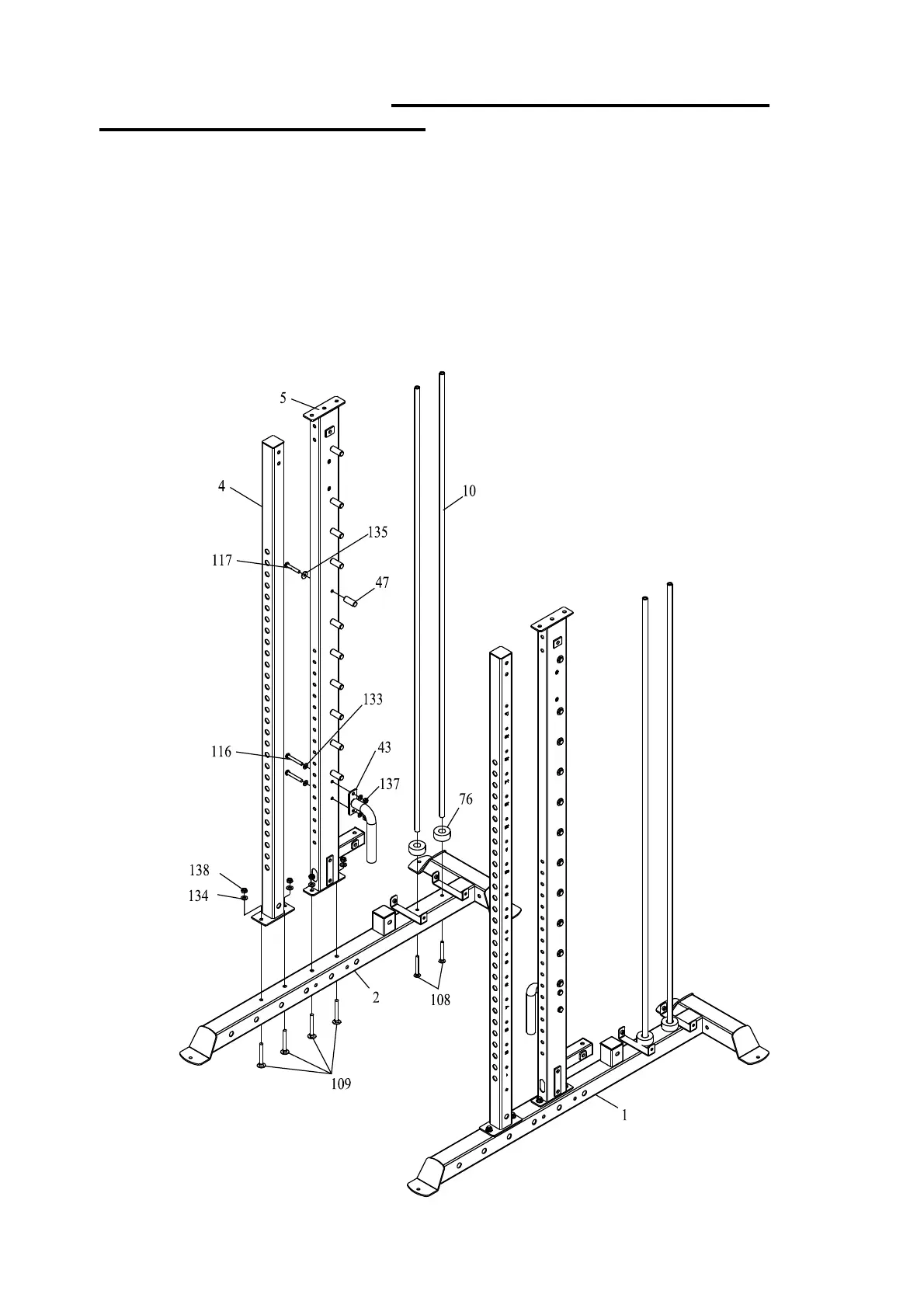

ASSEMBLY DIAGRAM 1 USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: tighten all nuts and bolts
1.
Attach the ADJUSTABLESLIDEFRAME&REARSLIDEFRAME(4&5)toRIGHT&LEFTBASE(1&2)
withSCREWM12*95(109),WASHER12(134)andLOCKNUTM12(138).
2.
Attach HOOK SUPPORT (47) to REAR SLIDE FRAME (5) with BOLT M10*75 (117) and BIG
WASHER10(135).
3.
Attach HANDLE BAR (43) to REAR SLIDE FRAME (5)with BOLT M10*70 (116), WASHER 10
(133)andLOCKNUTM10(137).
4.
AttachGUIDEROD(10)toRIGHT&LEFTBASE(1&2)withSCREWM10*85(108)andRUBBER
BUFFER(76).
