Prime Tech WF08 - SOLENOID BOX ASSEMBLY PARTS LIST; 12 V;24 V Parts List

13

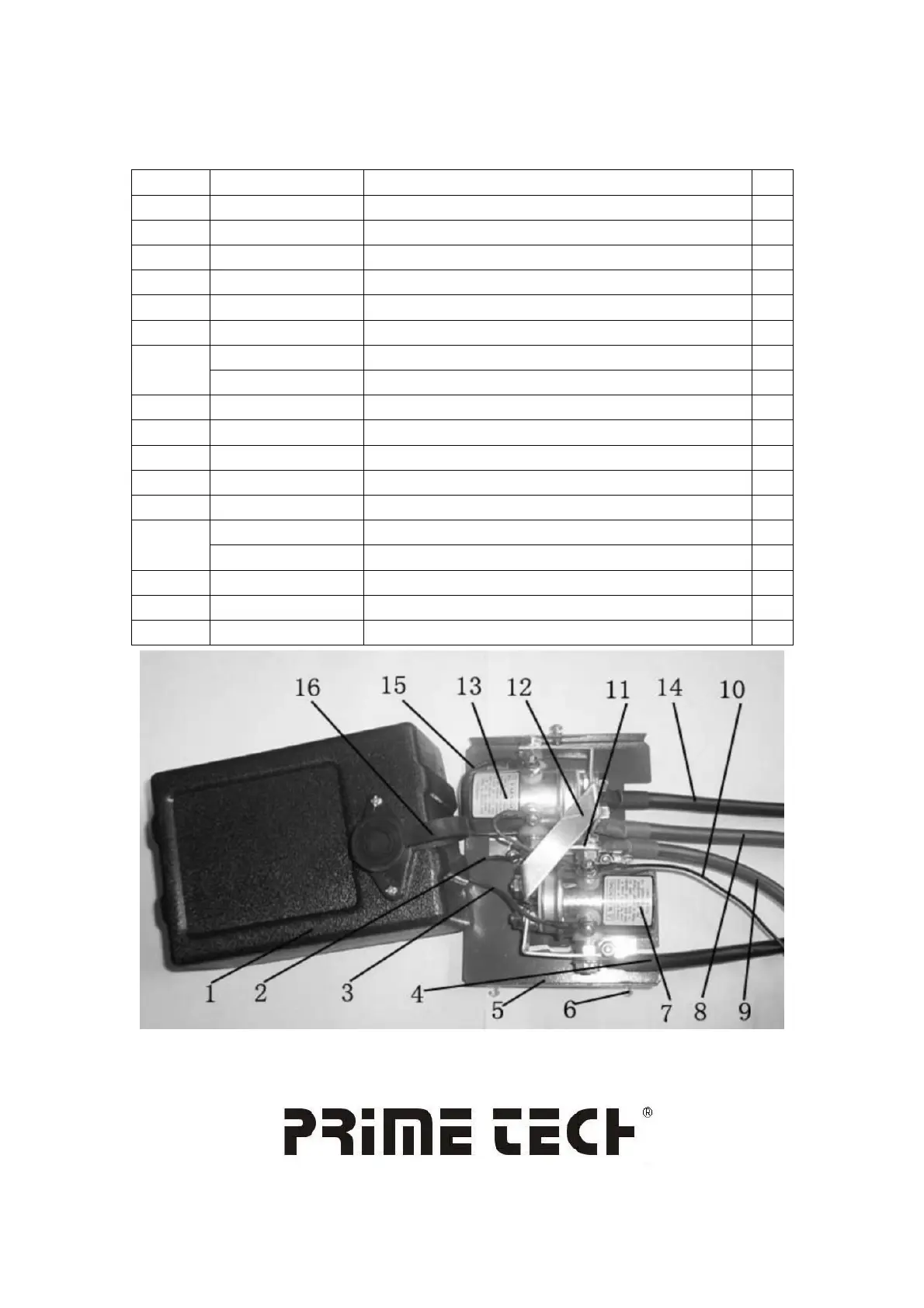

OLENOID BOX ASSEMBLY (12V/24V) PARTS LIST
Item No. Part No. Description Qty
1 So107/08-30 Cover-solenoid Ass’y 1
2 So107/08-31 Cable(Brown 0.75mm
2
X25cm; to the battery”+”) 1
3 So107/08-32 Cable(Brown 0.75mm
2
X25cm; Power in) 1
4 So107/08-33 0.425m Short Black Cable with Yellow Terminal Sleeve 1
5
So107/08-34 Bracket 1
6 So107/08-35 ScrewM5X12 3
So107/08-36 Solenoid-Power in 12V 1 7
So107/08-36A Solenoid-Power in 24V 1
8 So107/08-37 0.425m Short Red Cable with Red Terminal Sleeve 1
9 So107/08-38 1.8m Long Red Cable 1
10 So107/08-39 Black Cable with Black Sleeve(0.75mmx0.45m;earth) 1
11 So107/08-40 Strap-Aluminum 1
12 So107/08-41 U Type Strap-Aluminum 1
So107/08-42 Solenoid-Power in 12V 1 13
So107/08-42A Solenoid-Power in 24V 1
14 So107/08-43 0.425m Short Black Cable with Black Terminal Sleeve 1
15 So107/08-44 Cable(Black 0.75mm
2
X25cm; Power Out) 1
16 So107/08-45 Female Connector Ass’y 1
