Prime Tech WF08 - LINE PULL AND CABLE CAPACITY; Cable Layer Capacity Table; 12000 lbs Winch Parts List

12
12000LBS LINE PULL AND CABLE CAPACITY
Layer of cable
1 2 3 4
Lbs 12000 9210 8030 6894 Rated line
pull per layer
Kgs 5440 4170 3640 3125
Ft 17 41 71 82 Cumulative
cable capacity
m 4.8 12 21 25

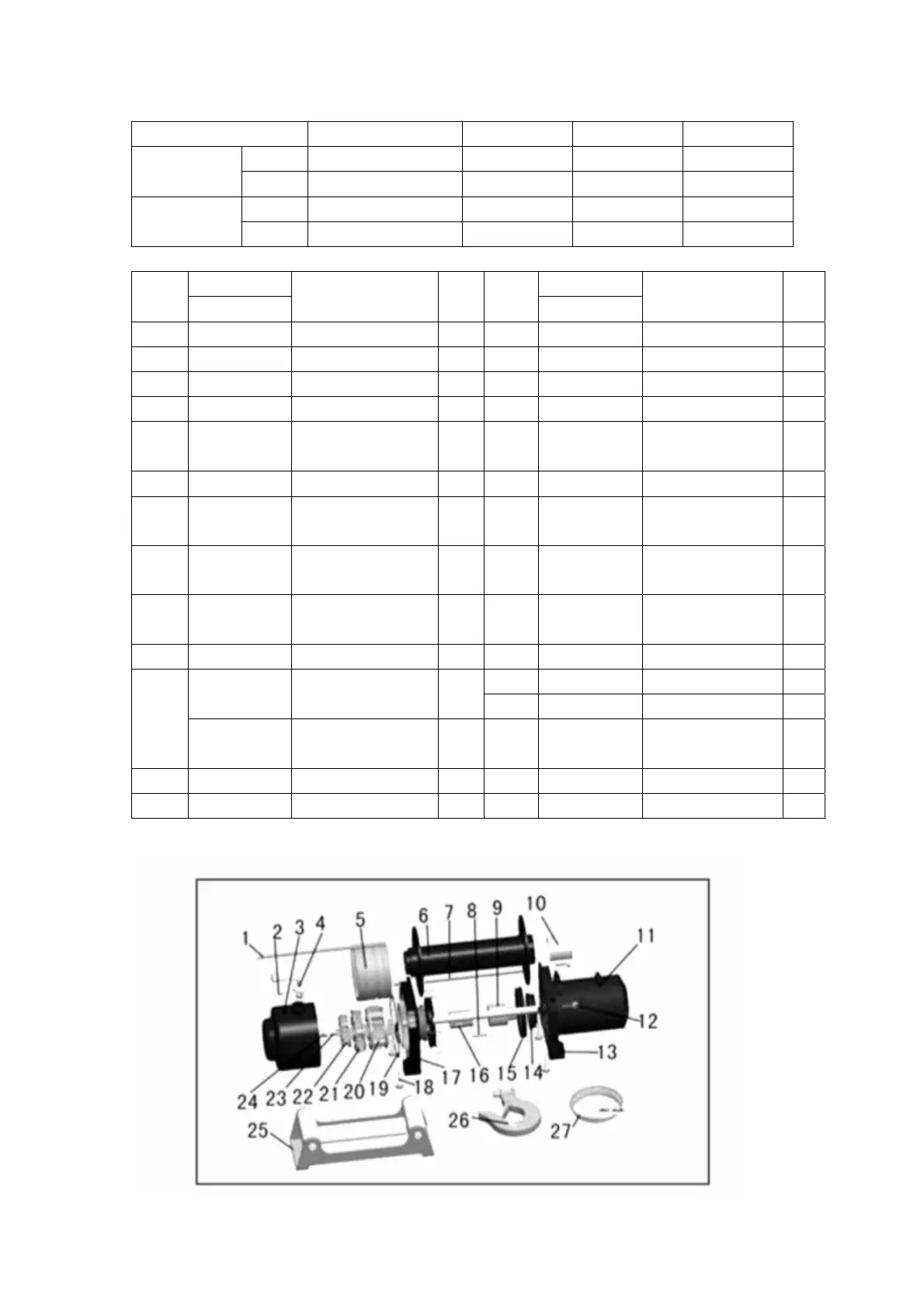

12000LBS WINCH PARTS LIST
Part No.- Part No. Item
No.
12000Ibs
Description Qty Item
No.
12000Ibs
Description Qty
1 0107/08-01 Transmission Shaft 1 14 0107/08-15 Nylon Bearing 2
2 0115/16-02 Fixed Screw 1 15 0107/08-16A Sealer 1
3 0107/08-24 Gear Box 1 16 0107/08-25A Brake 1
4 0107/08-24 Clutch Handle 1 17 0107/08-18 Gear-Box Bracket 1
5 0115/16-06 Clutch Gear 1 18 0107/08-19 Mounting Bolt M
10*32
4
6 0107/08-07 Drum 1 19 0107/08-20 Sealer 1
7 0107/08-08 Tie Bear 1 20 0115/16-21 Gear Carrier Ass
y-output
1
8 0115/16-09 Connecting Shaft 1 21 0115/19-22 Gear Carrier Ass
y-intermediate
1
9 0107/08-10 Torque Overload
Protection
1 22 0115/16-23 Gear Carrier Ass
y-input
1
10 0107/08-11 Ling 1 23 0115/16-50 Sun Gear-input 1
24 0107/08-26 Bearing 1 0115/16-12 Motor(12v) 1
25 0107/08-27 Roller Fairlead 1
11
0115/16-12A Motor(24v) 1 26 0107/08-28 Hook 1
12 0107/08-13 Link Screw M8*25 4 27 0113/14-29 Wire rope 1
13 0107/08-14 Motor Bracket 1
