The provided manual details the Prime Primavera & Doyenne 1-1/8" - 1.5" Integrated Tapered Headset, a component designed for bicycle frames requiring a tapered integrated headset. This manual serves as a comprehensive guide for the fitment, disassembly, and assembly of this specific headset, emphasizing safety, correct procedures, and the use of appropriate tools to ensure proper installation and prevent damage or warranty voidance.

Function Description:

The Prime Primavera & Doyenne integrated tapered headset is a critical component in a bicycle's steering system. Its primary function is to provide a smooth, low-friction interface between the bicycle's fork steerer tube and the head tube of the frame, allowing the handlebars and front wheel to turn freely. As an "integrated" headset, its bearings sit directly within recesses in the frame's head tube, offering a clean aesthetic and often a lighter weight compared to external cup headsets. The "tapered" design signifies that the steerer tube and, consequently, the headset bearings, are wider at the bottom than at the top (1.5" at the bottom, 1-1/8" at the top), which enhances front-end stiffness and steering precision, particularly beneficial for performance-oriented road and gravel bikes. The headset comprises several key components working in conjunction: upper and lower bearings, a compression ring, spacers, a top cap, and a crown race. These parts collectively manage the rotational movement of the fork while maintaining proper preload and preventing play in the steering system.

Important Technical Specifications:

The manual provides detailed technical specifications for different Prime headset models, including Primavera Low Stack, Primavera Medium Stack, Doyenne Medium Stack, Carbon 8, Carbon 3, and Alloy 8. While specific dimensions vary slightly between models, the core specifications for the Primavera & Doyenne series are:

Tapered Design: 1-1/8" - 1.5"
Upper Bearing: IS42/28.6 (Integrated Standard, 42mm outer diameter, 28.6mm inner diameter for the 1-1/8" steerer)
- Outer Diameter: 41.8 mm
- Depth: 6.5 mm
- Outer Angle: 45°
- Inner Angle: 45°
Lower Bearing: IS52/39.8 (Integrated Standard, 52mm outer diameter, 39.8mm inner diameter for the 1.5" steerer)
- Outer Diameter: 51.8 mm
- Depth: 7 mm (some models specify 8mm)
- Outer Angle: 45°
- Inner Angle: 45°
Head Tube Compatibility (General):
- Upper: Ø42-0 (+0.1) mm
- Lower: Ø52-0 (+0.1) mm
- Head tube OD: Taper 46mm/56mm
- Fork Steerer: Taper 1-1/8" to 1.5"
Stack Height (Varies by model):
- Carbon 8: 8.9 + 1.0 = 9.9mm (Top Cover: 0.7mm, O-Ring: 8.9mm)
- Carbon 3: 2.9 + 1 = 3.9mm (Top Cover: 0.5mm, O-Ring: 2.9mm)
- Alloy 8: 8.7 + 1.0 = 9.7mm (Top Cover: 0.5mm, O-Ring: 8.7mm)
Components (Common across models, quantities may vary slightly):
- Top Cap (1)
- Spacer (3 for Primavera/Doyenne, 1 for Carbon 8/3, Alloy 8)
- Compression Ring (1)
- Upper Bearing (1)
- Lower Bearing (1)
- Crown Race (1)
- O-Ring (1, for Carbon 8/3, Alloy 8)
- Seal (1, for Carbon 8/3, Alloy 8)
- Water Seal (1, for Alloy 8)
Bearing Type: TS-Bearing (for Carbon 8/3), Premium Bearing (for Alloy 8)
Compatibility: No.42/ACB (for Alloy 8)

The manual explicitly warns that these measurements are critical and must be matched to the frame and existing headset bearings to prevent premature failure and voiding of the warranty. Bearing measurements can often be found printed on the bearing itself.

Usage Features:

The manual focuses on the installation and maintenance aspects of the headset rather than its operational usage. However, the design of the Prime headset contributes to the overall "usage" experience of the bicycle:

Enhanced Steering Precision: The tapered design provides increased stiffness at the front end, leading to more responsive and precise steering, which is a key feature for performance cycling.
Durability: The use of high-quality bearings and materials, along with proper installation as guided by the manual, ensures a durable and long-lasting steering system.
Integrated Design: The integrated nature of the headset offers a sleek, low-profile aesthetic and can contribute to a lighter overall bicycle weight.
Compatibility: The headset is designed for specific frame and fork configurations, ensuring a snug and secure fit when correctly chosen and installed. The manual highlights the importance of checking frame and fork compatibility, especially regarding built-in crown races.

Maintenance Features:

The manual outlines several critical maintenance features and practices to ensure the longevity and optimal performance of the Prime headset:

Professional Installation Recommended: The manual strongly advises that a trained bicycle mechanic perform any maintenance or installation, particularly for individuals without professional training, to avoid incorrect installation and potential injury.
Correct Tool Usage: Emphasizes the necessity of using specific tools (listed below) to prevent damage to the headset or frame and to avoid voiding the warranty.
Cleaning: Before assembly, it is crucial to thoroughly clean both the frame's head tube bearing surfaces/cups and the fork bearing surfaces. Failure to remove existing contaminants can lead to premature bearing failure or difficulties during assembly. Isopropyl alcohol and a cleaning cloth are recommended for this purpose.
Greasing: Application of Teflon Assembly Grease is required at specific points during assembly:
- To the crown race or fork bearing surface before sliding on the lower bearing.
- To the frame headset bearing cups before inserting the top headset bearing.
- Proper greasing ensures smooth operation, reduces friction, and protects components from wear and corrosion.
Correct Bearing Orientation: During assembly, it is vital to ensure that both the upper and lower headset bearings are inserted with the correct orientation.
Torque Settings: While the compression bolt has no specific torque setting (it's tightened until play is removed and the handlebars spin freely), the stem pinch bolts must be tightened to the stem manufacturer's recommended torque setting using a torque wrench. This prevents over-tightening, which can damage components, or under-tightening, which can lead to dangerous play in the steering.
Post-Assembly Test Ride: After completing the assembly, a test ride is recommended to confirm that all components are fitted correctly and that there is no play in the steering. The manual also advises using all necessary safety gear during this test ride.
Crown Race Management: The manual provides clear instructions on removing the existing crown race and installing the new one. It specifically notes that if the fork has a built-in crown race, the installation of a separate crown race is not required, and users should consult the fork manufacturer if unsure. The Prime crown race is designed with a slot for easy fitment without additional tools.

Tools and Consumables Required for Assembly:

Isopropyl Alcohol
Cleaning Cloth
4, 5, and 6mm Hex Allen Key
T25 Torx Key
Crown Race Removal Tool (if the fork does not have a built-in crown race)
Torque Wrench
Teflon Assembly Grease
Workshop or Latex Gloves
Protective Eye Wear

In summary, the Prime Primavera & Doyenne 1-1/8" - 1.5" Integrated Tapered Headset is a precision-engineered component designed to deliver robust and smooth steering performance for compatible bicycles. The manual underscores the importance of meticulous attention to detail during installation and maintenance, advocating for professional handling and strict adherence to specified procedures and tools to guarantee safety, optimal function, and product longevity.

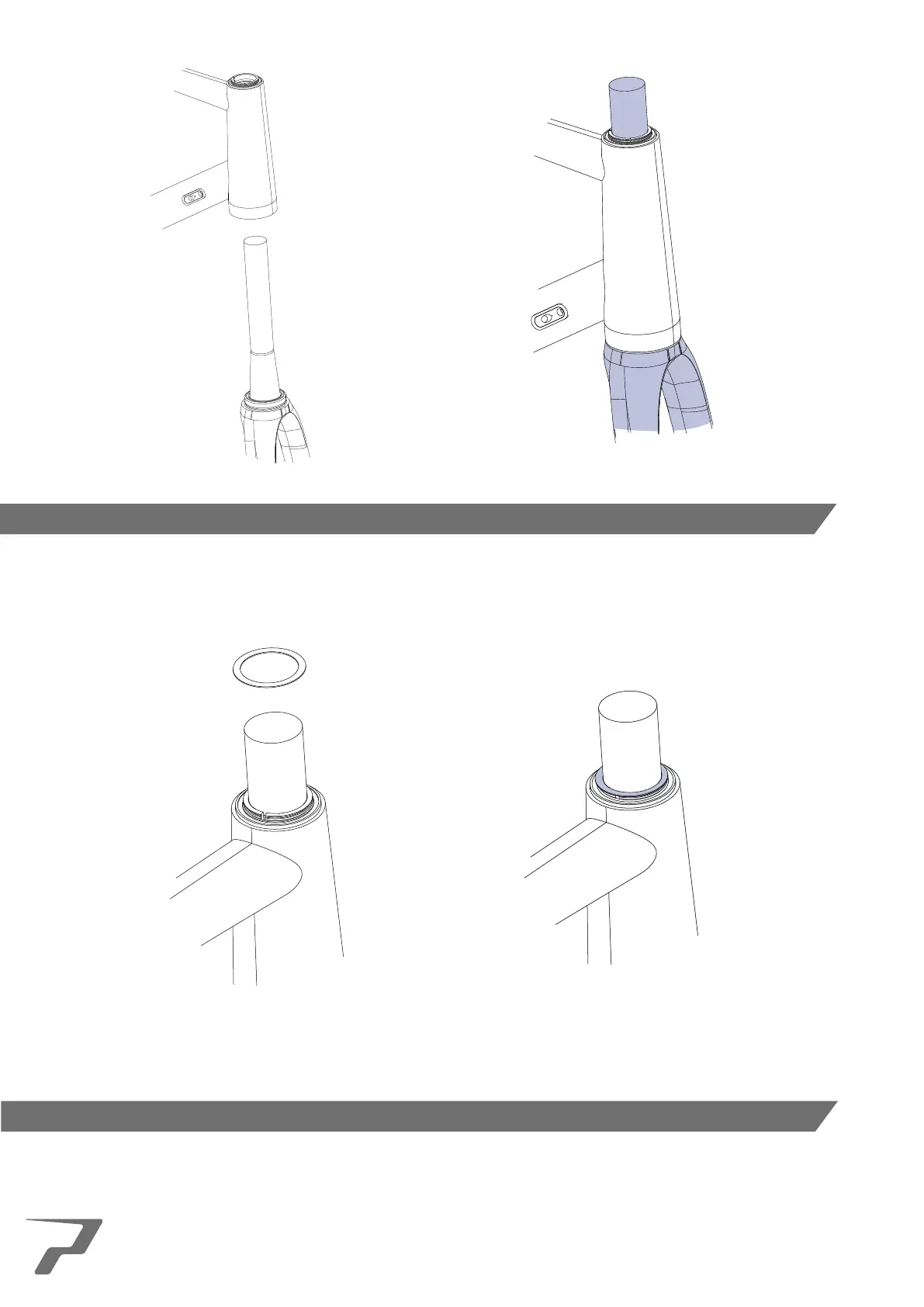

Prime PRIMAVERA - Insert Fork into Frame; Install Top Spacers
