Step 4 – Inserting the ground bar kit (optional)
If you have purchased our optional ground bar kit, now is the time to fit the bars.
Requires the following parts:
Part G1 - 1940mm galvanised pipe
Part G1b - 1430mm galvanised pipe
Part G4 - 2 Way ground plate
Part G5 - Screws
The number of G1 pipes running along each 'window' side depends on the size of the marquee,
but there should be 2 G1b pipes running along each 3m width 'door' end. Please refer to the
table below to see how many pipes you require.
Size of Marquee No. of G1 pipes along each side
3m x 10m 5
3m x 8m 4
3m x 6m 3
3m x 4m 2
Slot the ground bar kit pipes (part G1) between the 3 way ground plates (part G3) along both
'window' sides of the marquee. Use small screws (part G5) to fix them in place.
At one 'door' end of the marquee, slot one ground bar kit pipe (part G1b) into a corner ground
plate (part G2), fixing in place with a small screw (part G5). Now attach one 2 way ground
plate (part G4) and fix in place with a small screw (part G5). Finally, insert a second ground
bar kit pipe (part G1b) in the 2 way ground plate (part G4) and fix in place with a small screw
(part G5). Fix this second ground bar kit pipe (part G1b) into the opposing corner ground plate
(Part G2).
Repeat for the opposing end of the marquee.

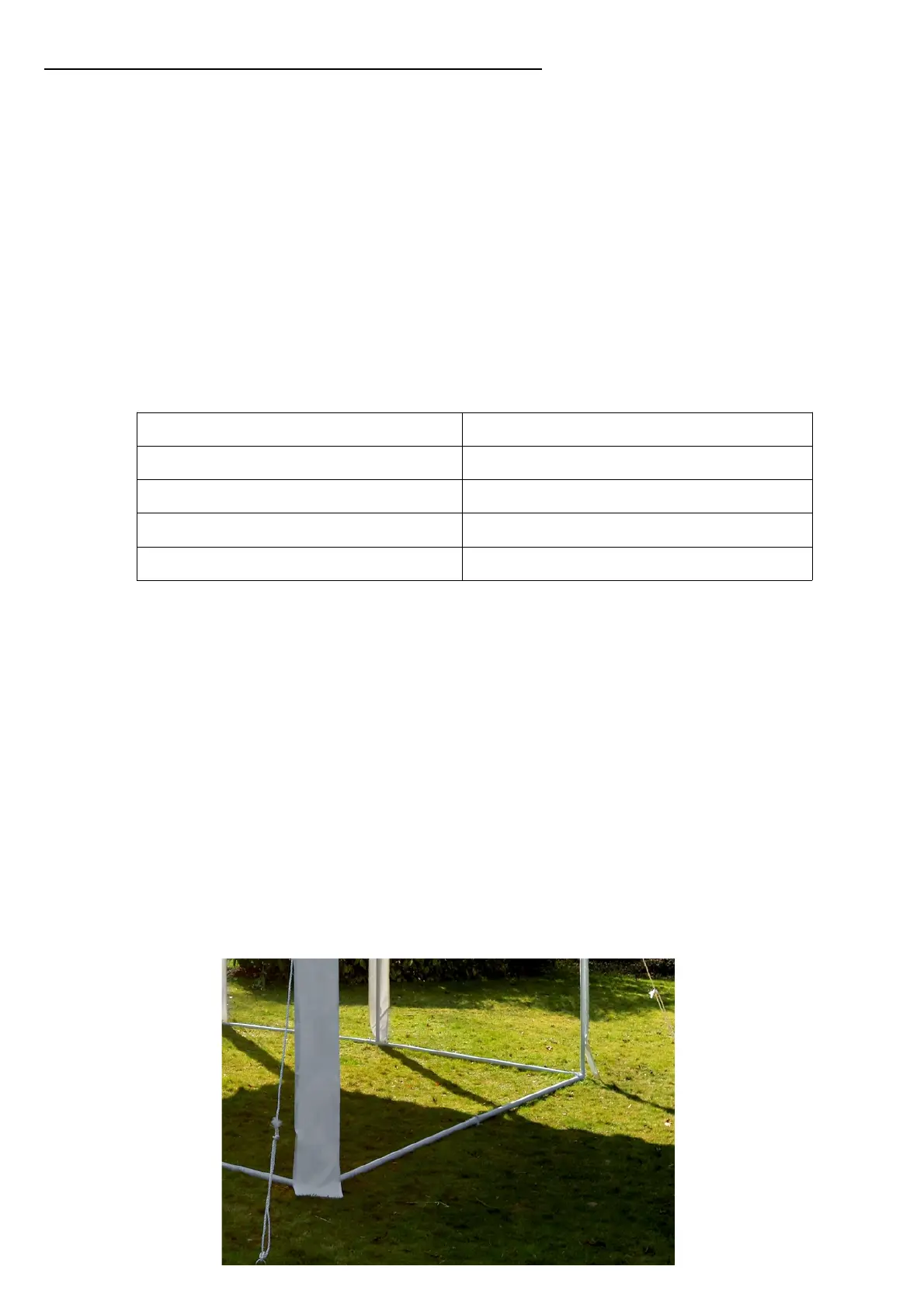

Picture below shows a ground bar kit fitted to a larger 4m width marquee, with missing window and door panels.
