PRIMUS
STERILIZER Company, LLC • 6565 South 118th Street • Omaha, NE 68137• Phone (402) 344-4200 • Fax (402) 344-4242
Page 4 of 6
®
NO: 258 APRIL 30, 2014
PSS500 CONTROL BOARD JUMPERS - FIELD CONFIGURATION
(CONTINUED)

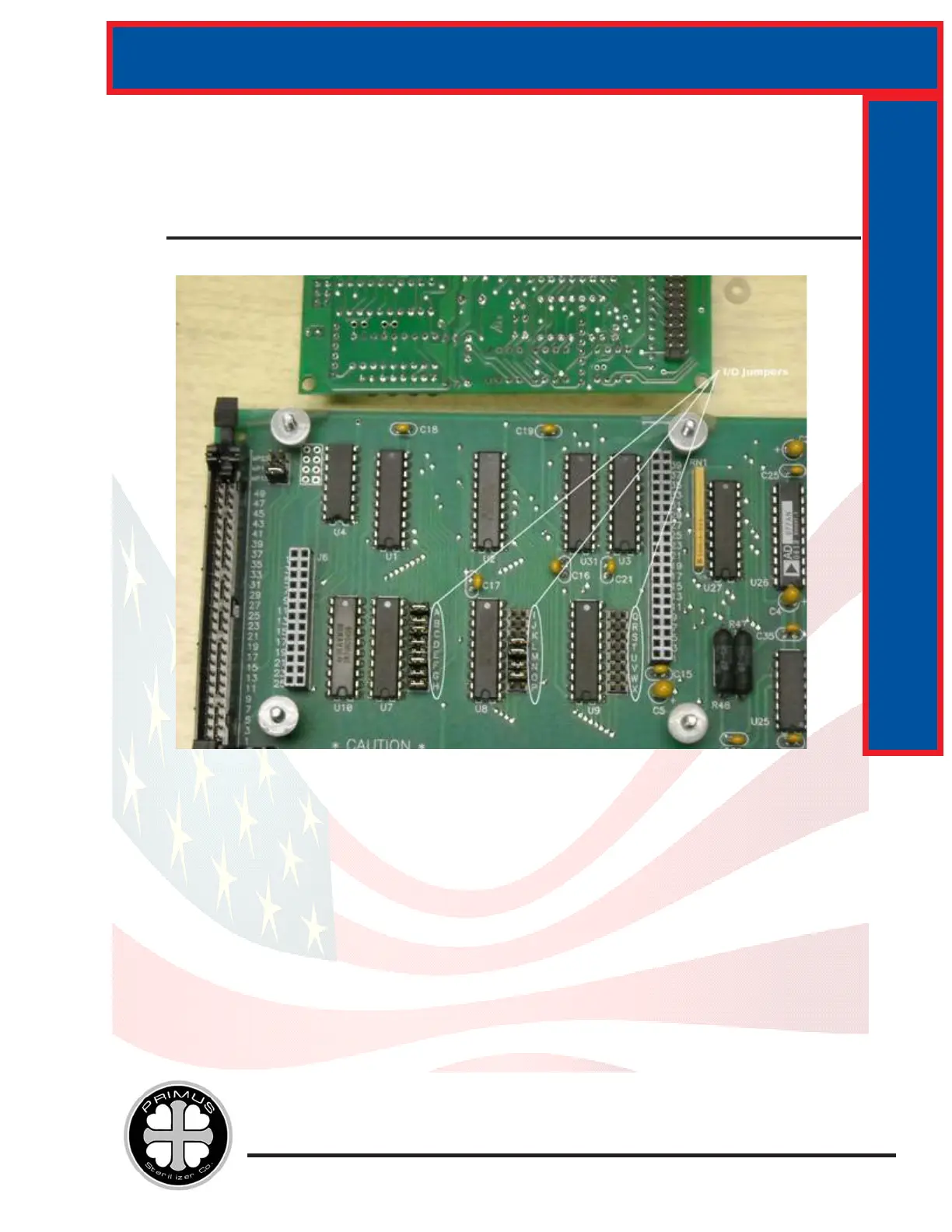

There are 24 jumpers located under the microcontroller board that determine whether an I/
O is an Input or Output.
These are labeled A – X and correspond to Opto22 modules 0 – 23 as shown in the table
below.
ABCDEFGHI JK L M N O P Q R S T U V WX
0123456 7891011121314151617181920212223
A shorting block on the jumper sets the I/O as an Output. An open jumper sets the I/O as
an Input.
