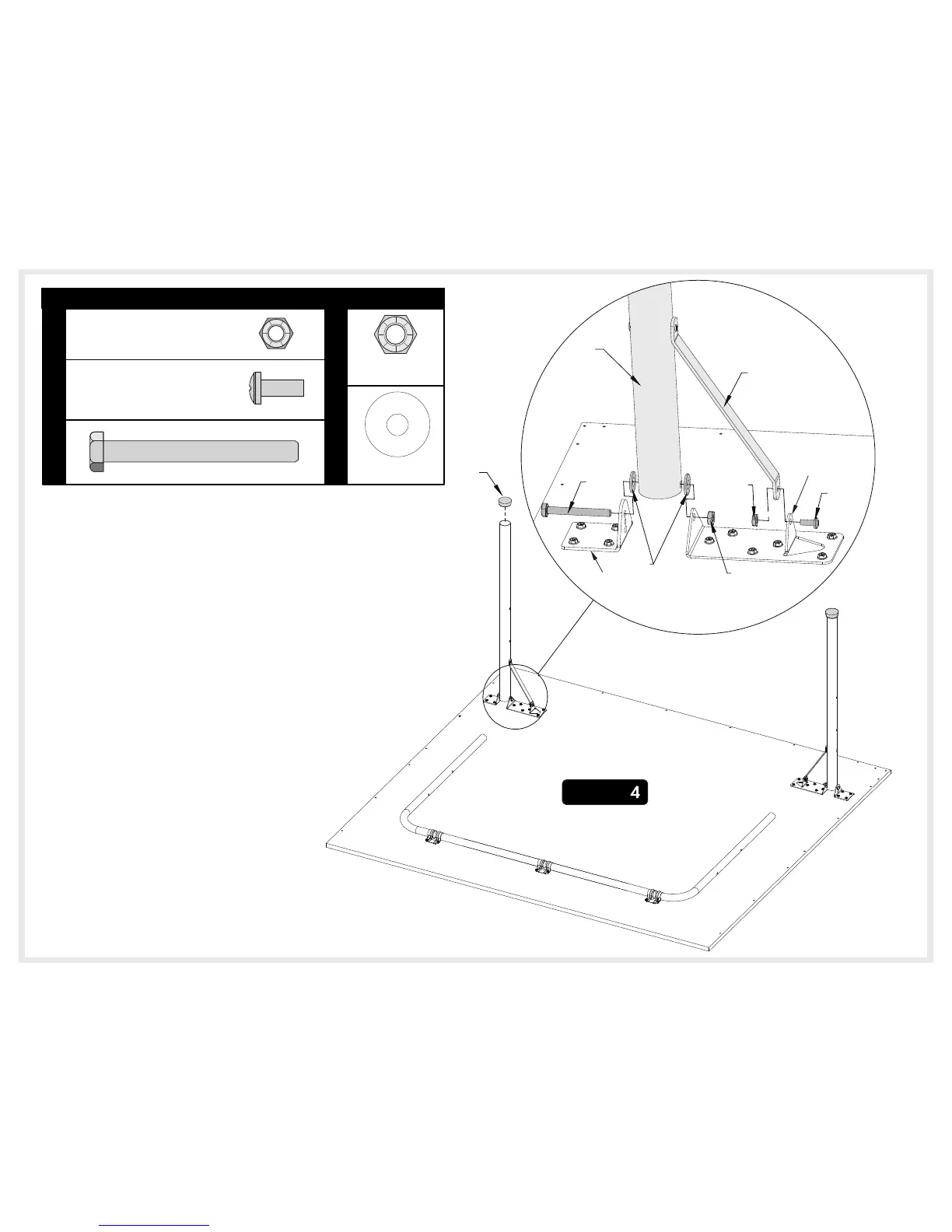

5. Attach Legs (#2) to Mounting Bracket (#34) with Hex Bolt (#38),
two Plastic Washers (#24) and Locknut (#15). Attach leg brace
to Leg Mounting Bracket (#33) with Phillips Head Screw (#37)
and Locknut (#16) as shown in Detail C.
6. Attach Leg Plugs (#13) to bottom of the Legs (#2) as shown in
Figure 4.
24
15
16
37
2
Leg Brace
38
33
34
Detail C
13
24
Plastic Washer
(Qty. 4)
15
1/4” Locknut
(Qty. 2)
37
#10-24 X 1/2 Phillips
Pan Head Screw
(Qty. 2)
38
#10-24 X 1/2 Locknut
(Qty. 2)
16
1/4-20 x 2 1/4 Hex Head Bolt
(Qty. 2)
Figure
HARDWARE NEEDED
6
To Next Page
