Note:
L
egs not
shown for Clarity
19
3
7
Detail D
7
Note: Rotate U-Support #7 until you see the screw
hole in the slot of U-clip #3. Slide U-support #7
side to side and front to back if necessary.

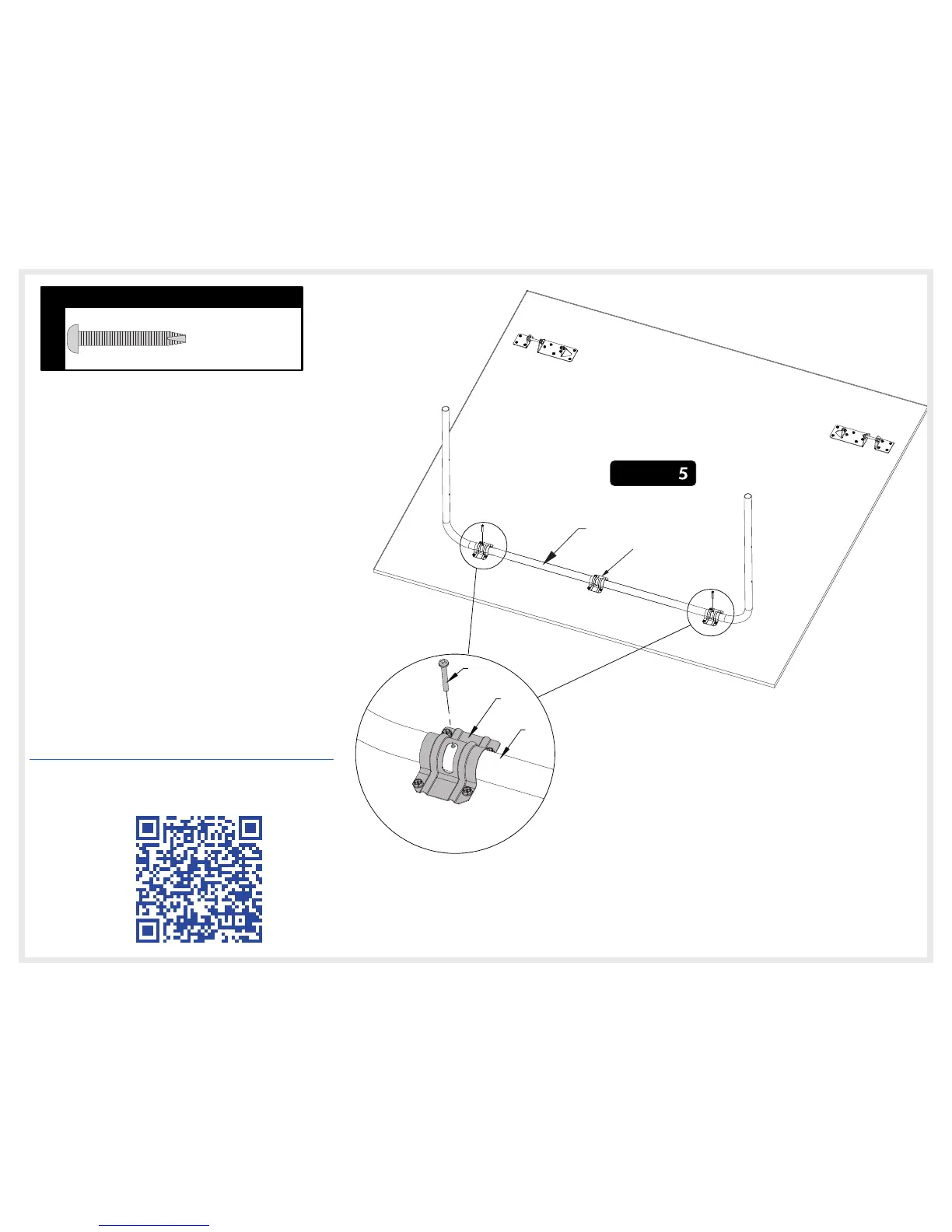

7. Insert Screw #19 through slot in U-Clip #3 and
into U-Support #7. Thread it all the way into U-
Support #7 until it touches the back of the tube.
There should be about 3/8 inch of screw #19 left
sticking out. DO NOT insert screw#19 in middle
#3 U-Clip. See Figure 5 & Detail D.
If you want to see a video on how to insert Screw (#19) go to:
http://www.escaladesports.com/customer-service/videos.html
Or
Scan with your smartphone:
Note: Rotate U-Support #7 until you see the screw hole in the
slot of U-clip #3. Slide U-support #7 side to side and front to
back if necessary.
Note: To aid in assembly use a cordless drill and Phillips bit, but be
careful to not strip the screws. Wear safety glasses for Step 7.
Figure
20
19
HARDWARE NEEDED
#8-32 X 1 1/4
Phillips Head Screw
(Qty. 2)
DO NOT insert Screw
#19 in middle #3 U-clip.
7
