Vetronics 760
-5-

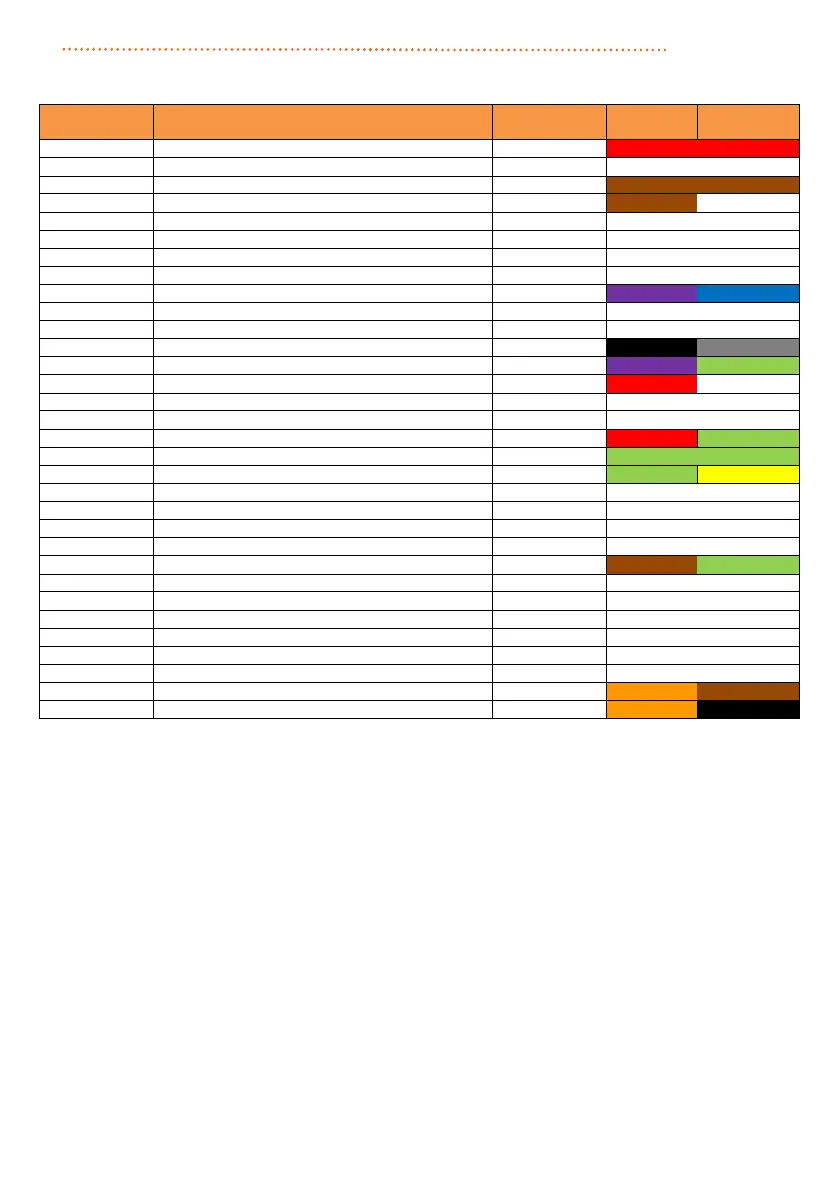

3.8. Table of signals and wire colors
číslo pinu na
konektoru AMP
signál zkratka signálu
barva
vodiče
doplňková
barva vodiče
1 Power supply “KL30” PWR_IN red
2 Power supply for external devices, adjustable 3.3V / 5V PWR_ADJ -
3
Ground
“KL31“
GND
brown
4 Ground “KL31“ GND brown white
5 Input for Business/Private switch IN1 white
6
-
-
-
7 - - -
8 - - -
9
Wiegand
D1
/ USL
input
WIE / U
SL
_IN
violet
blue
10 - - -
11 Digital input (wake up function) IN5 -
12
Ignition input
”KL15”
IGN
black
grey
13 Dallas input / Wiegand D0 DALLAS1 violet green
14 Power supply for private/business switch LED LED_S red white
15
Service
RS232 RX
RSI1
-
16
Service
RS232 TX
RSO1
-
17 Power supply for Dallas chip reader LED (anode) LED_D red green
18 Output for Dallas reader LED (cathode) OUT1/IN7 green
19
Output for buzzer
OUT2/IN8
green
yellow
20 - - -
21 - - -
22
Universal bus input
UAR
-
23 - - -
24 Ground ”KL31” GND brown green
25
RS232 TX
(trm)
RSO2
-
26 RS232 RX (trm) RSI2 -
27 USL output USL_OUT -
28
-
-
-
29 - - -
30 - - -
31
CAN
bu
s c0 (low)
CAN0_L
orange
brown
32
CAN
bus
c
0 (high)
CAN0_H
orange
black
Warning: The older version of connecting cables may vary. If your harness contains a different colour scheme or
a different number of wires, or if you need to use the optional signals that are not available at wiring harness, contact
the manufacturer.
Incorrect connection may result in injury or damage for which the manufacturer is not liable!
4. Placing antennas in the vehicle
The unit contains internal GSM antenna and external GPS antenna. If there is insufficient reception of GSM signal
after installation try to change the location of the unit. Do not place the unit in a closed metal compartment.
The GPS antenna is designed for hidden mounting in the vehicle cabin. Place the antenna so that the signal can
be received from the largest part of the sky. The antenna should lie horizontally, with the bulging part of the plastic
cover facing upright with a direct view to the sky. In practice, this cannot usually be ensured, and therefore a
compromise solution is often chosen. The antenna may be placed on or below the dashboard as close as possible to
the windscreen, near the longitudinal axis of the car, as shown on the picture. The lower part of the antenna is
provided with a magnet for mounting on the metal parts of the vehicle. A velcro or double-sided sticker can be used
for fastening the antenna. The antenna is waterproof, but not intended for mounting outside the vehicle.
The metal bottom of the antenna is conductively connected to the ground of the unit. If the antenna touches the
metal parts of the vehicle body with a grounded negative pole, then the unit must not be plugged in before the
disconnector on the negative pole!
