Prio Expert MOD600 - Installation Steps: Tubing Connections

11

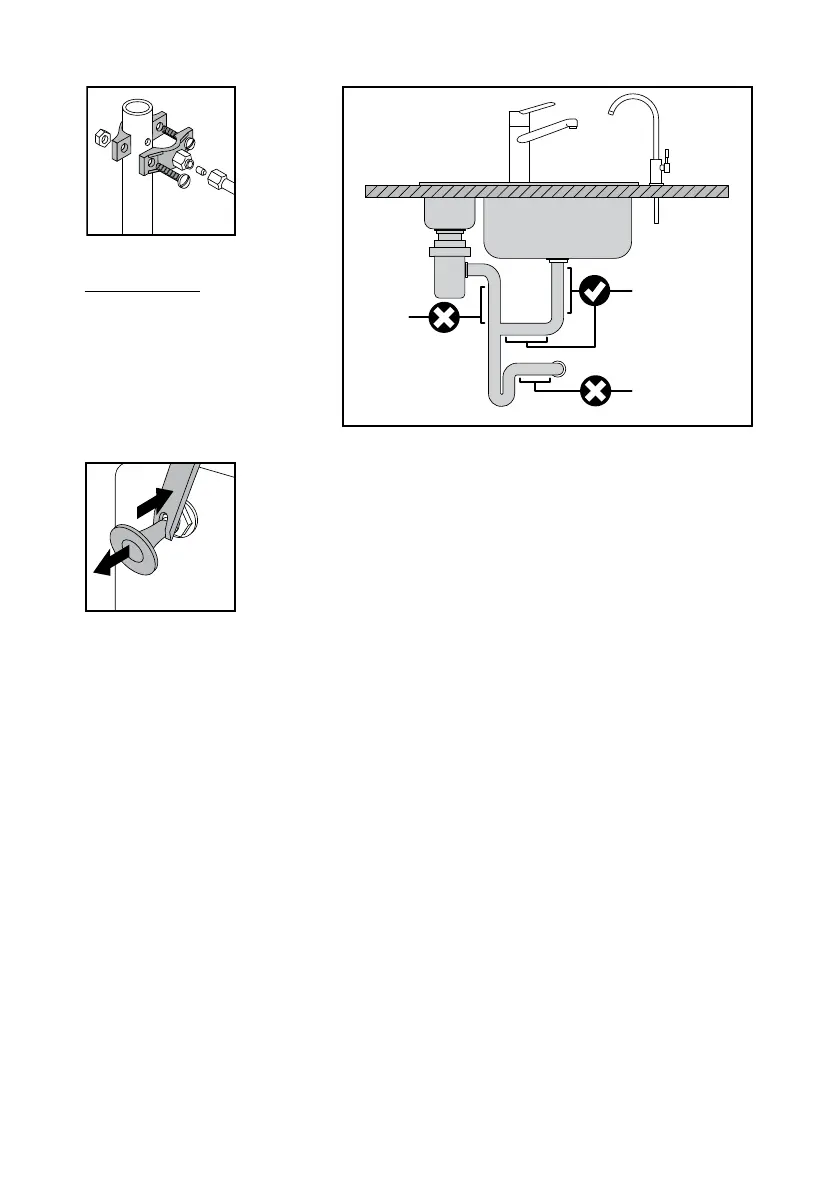

mount drain
saddle here
never
mount
here
never mount
here
Drill a ¼” hole in the drain pipe
above the trap and on the ver-
tical or horizontal tail piece. Lo-
cate the drain connection away
from the garbage disposal to
prevent potential contamination
and system fouling.
n d
l
n
4. Remove gags and connect tubes as follows. See the connection chart for details.
■
Insert water supply tubing from inlet valve adapter into the “inlet” tting of the pump box unit.
■
Insert the supply tubing from the “RO unit” tting of the pump box unit into the supply inlet
of the R.O. ltration unit.
■
Insert the ltered water tubing from the permeate outlet of the R.O. ltration unit into the
“permeate” tting of the pump box unit.
■
Insert the waste tubing from the waste water outlet of the R.O. ltration unit into the
“waste” tting of the pump box unit.
■
Insert the waste tubing from the “drain” tting of the pump box unit into the drain saddle
(through the optional union check valve on the way) or to a waste water collection con-
tainer. Install the check valve with the arrow in the direction of ow.
■
Connect with the tubing the "to faucet" outlet of the R.O. filtration unit with the faucet.
