Prio Expert MOD600 - Tubing, Fittings, and Placement

9

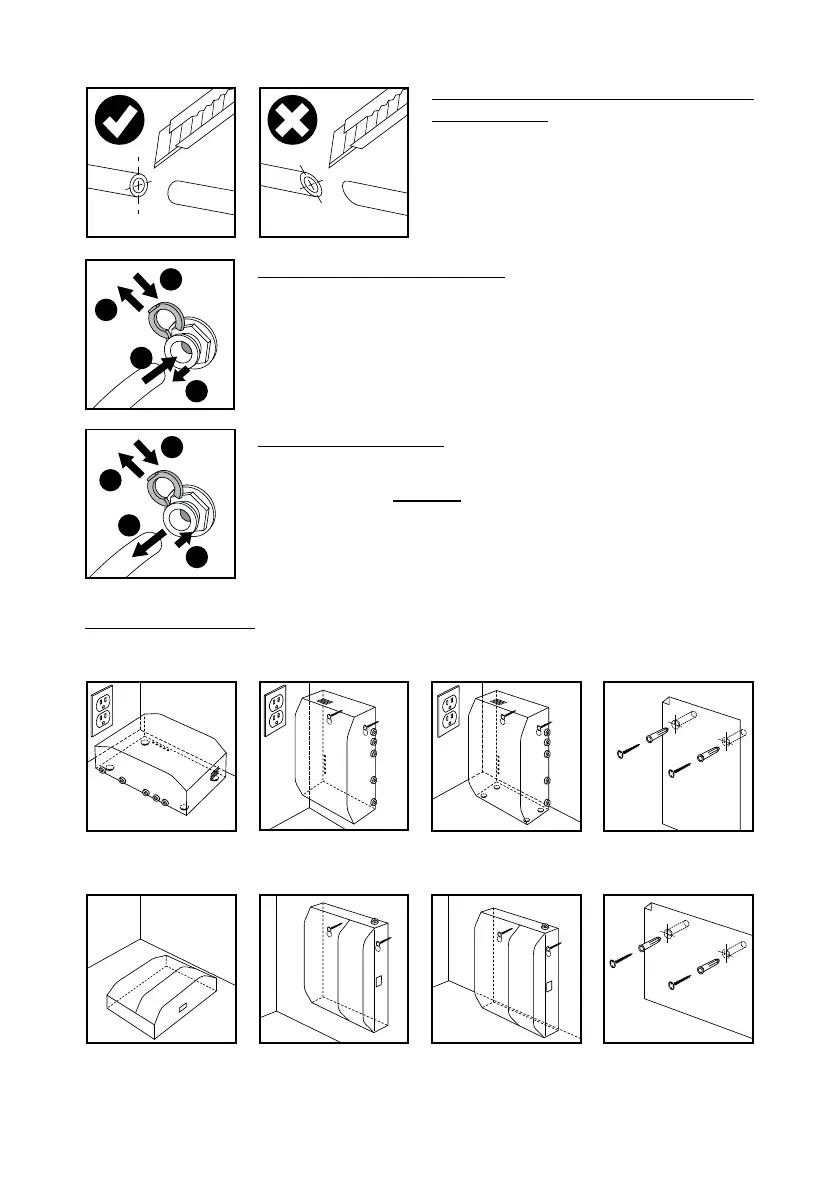

IMPORTANT: Cut Tubing At 90° to Ensure a
Watertight Seal:
Units Placement Guide:
Pump box unit
R.O. ltration unit
Remember this unit must be serviced at regular intervals. Therefore it should be reasonably
accessible (for changing lters or membrane, etc.).
To Connect the Tubing to a Fitting:
1. Remove the lock if present (not present in self-locking ttings).
2. Push. Insert the tube rmly until full stop.
3. Pull the collet back slightly.
4. Replace the lock (if present).
To Disconnect the Tubing:
1. Remove the lock if present (not present in self-locking ttings).
2. Push the collet and hold.
3. Pull the tubing out.
4. Replace the lock (if present).
1
4
3
2
1
3
ut
1
4
2
3
3
/2
No skewed cut!
4
3
2
1
