THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
10

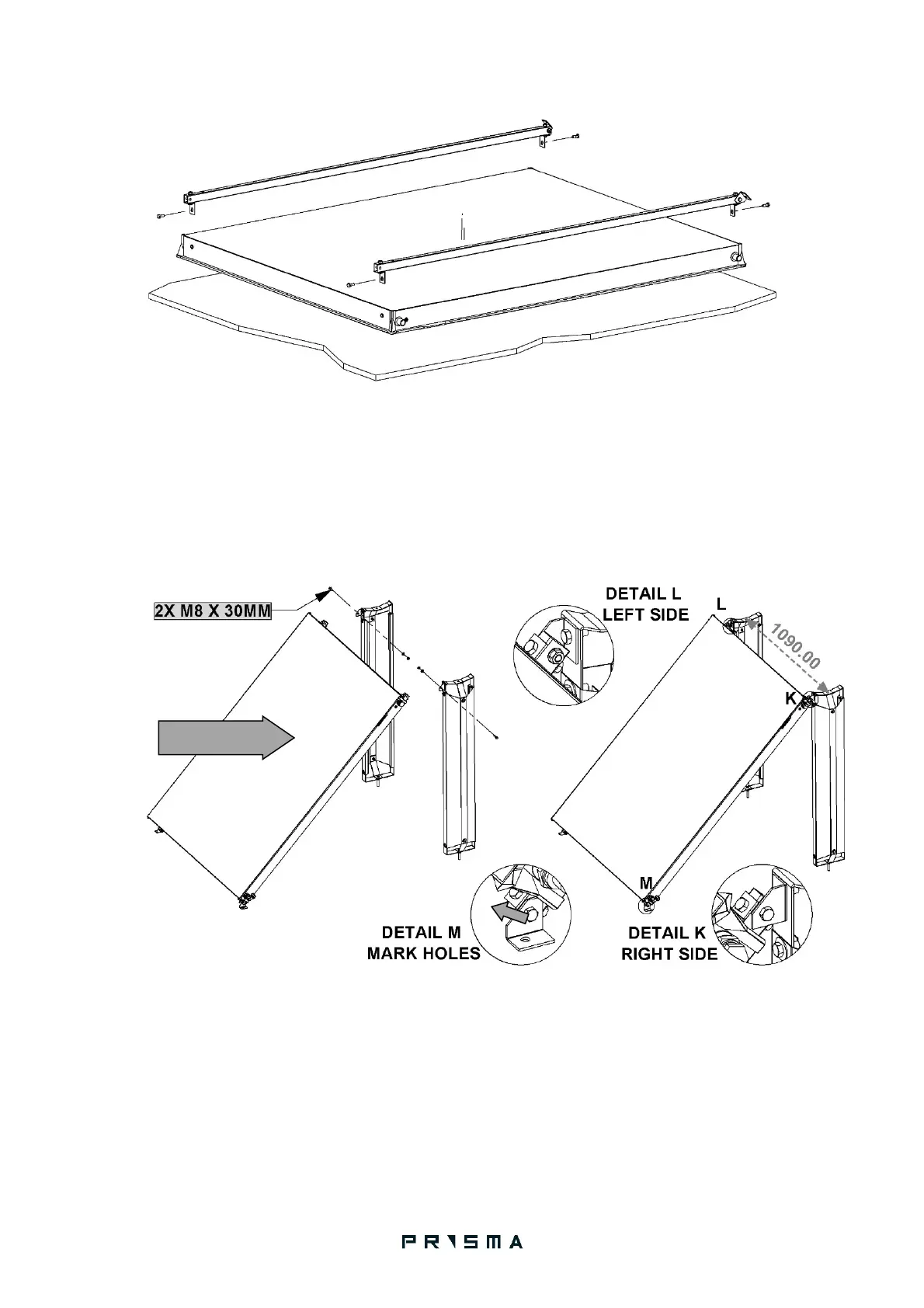

STEP 2
Carefully place the collector glass-down on a soft, flat surface such as packaging cardboard.
Install the diagonals on the collector noting the orientation.
Ensure that the rails are parallel and tighten the 4 collector bolts ensuring that you do not strip the
threaded rivets from the collector shell.
DO NOT REMOVE THE COLLECTOR COVER!
STEP 3
Carefully position the collector at an angle of 45 degrees and slide towards the pillars.
Connect the diagonals with the pillar assemblies.
Ensure the pillars are vertical and that the diagonals aligned. Check that the distance between the tank
support holes is 1090 mm.
Mark on the roof the position of the holes at the feet of the diagonals.
