THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE 9
STEP 1
Identify the area where the system will be installed according to the guidelines in page 7.

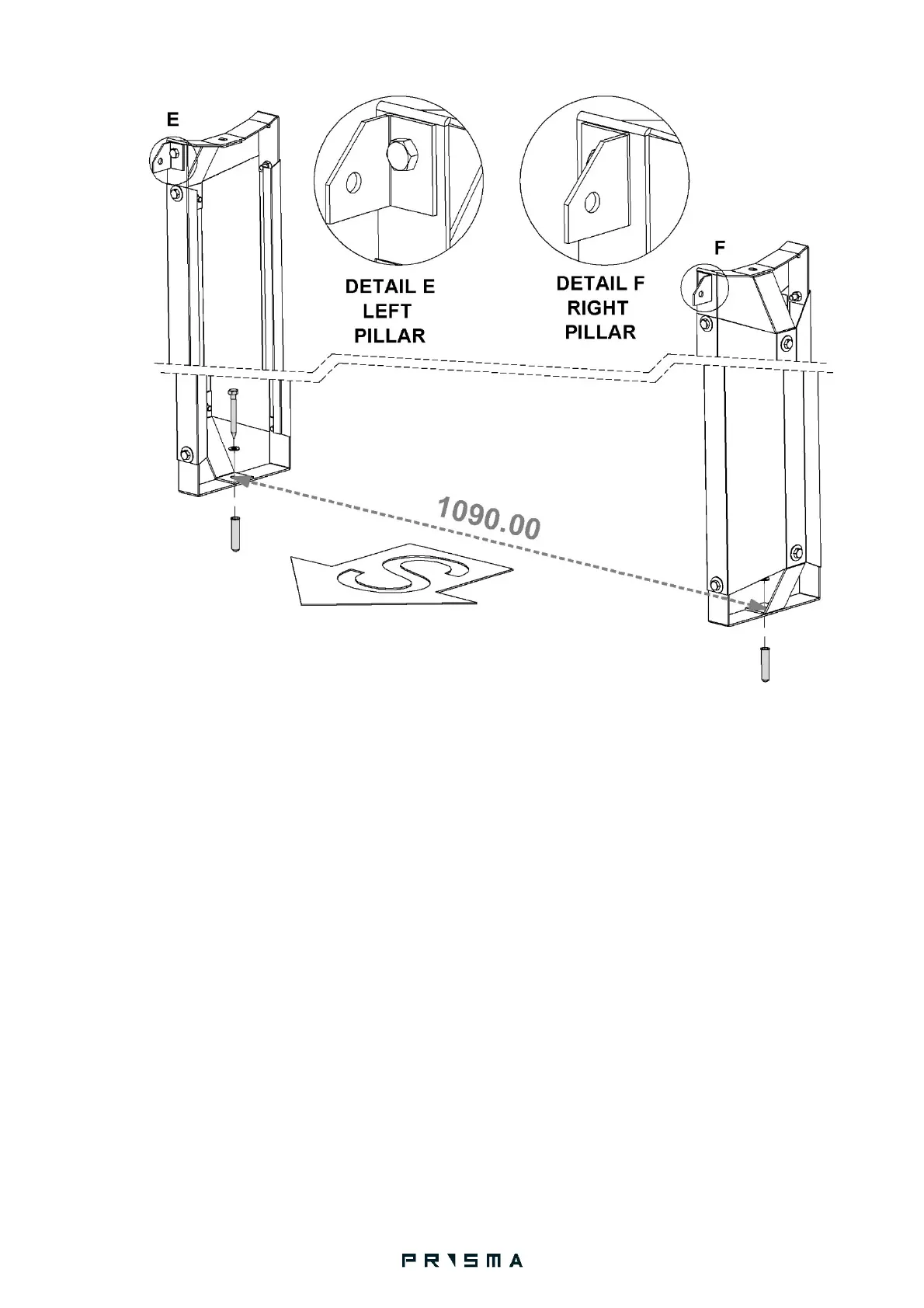

Identify South and install the two pillars as shown above. In the southern hemisphere point to the
North.
The distance between the two holes should be 1090 mm.
Make sure that the two pillars are parallel and alighned.
Note position of right and left pillar.
Fixing hardware [shown in gray] is not provided with the system, the installer must ensure that the
hardware is appropriate for given roof material. Diameter of bolts should be 8mm, length and type
according to roof.
ATTENTION: Failure to fix the pillars to the roof material will eventually result in support structure
failure under extreme loading conditions.
In order to avoid humidity problems or water penetration (rain/snow) in the roof, the pipes which are
entering the roof must be very well sealed. Local building engineer should provide you with precise
guidelines depending on the kind of roof construction and/or local legislation. The same applies to the
system anchoring points, regardless of the devices used for the installation.
