THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE 8
IV) INSTALLATION OF SYSTEM ON A FLAT ROOF [All single collector models]
The Prisma base system has been pre-assembled so as to maximise ease of use and safety. Check that
the subassemblies are as shown in the figures below and make sure that you use the correct
subassembly for each step.

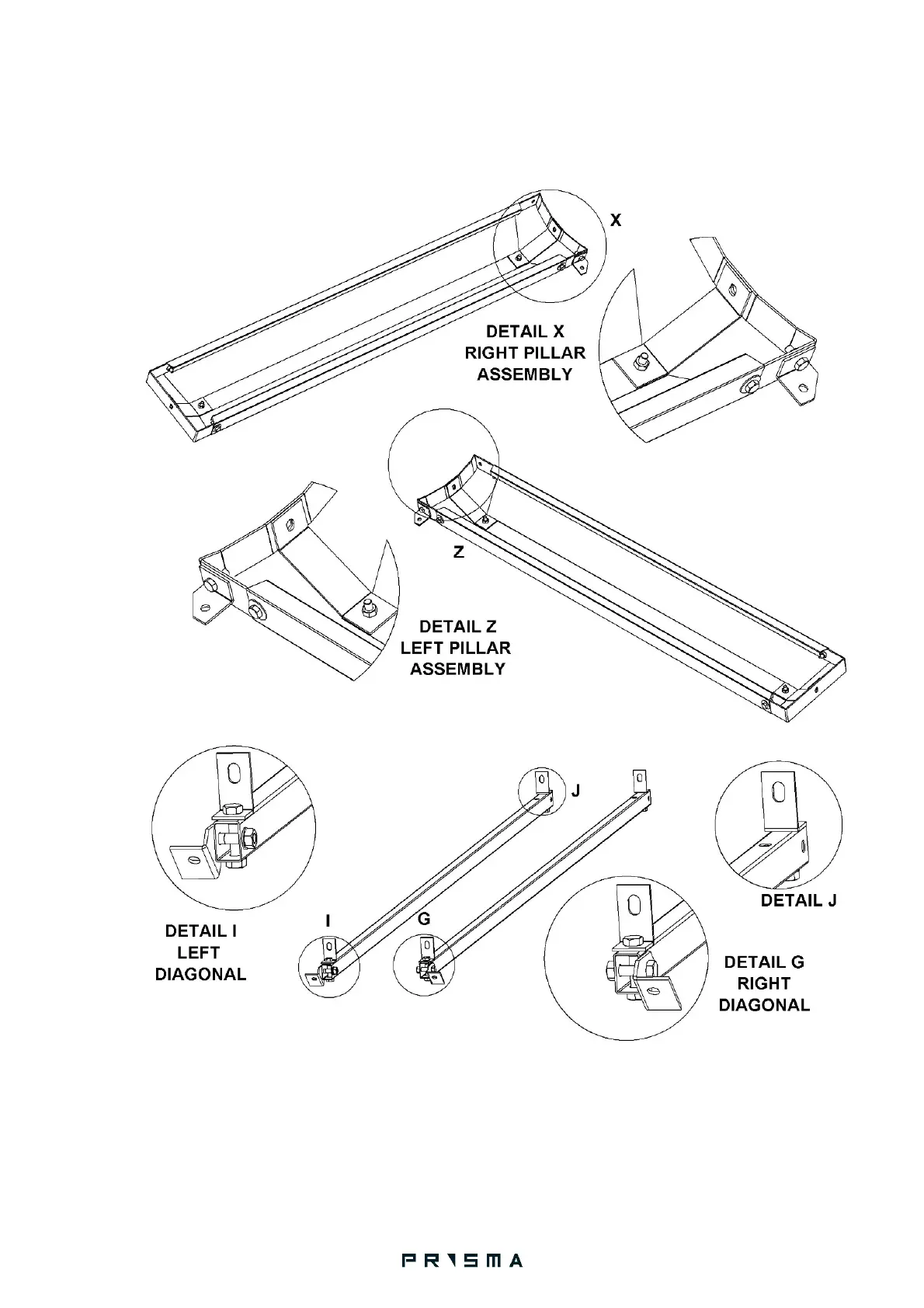

Figure 2: Prisma system preassembled components, from top to bottom: Pillar assemblies, collector
diagonals. Note the differences between right and left variants.
