THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
15
V) INSTALLATION OF SYSTEM ON A FLAT ROOF [TWIN COLLECTOR MODELS]
Follow step 1[p. 9] to install the two pillar assemblies.
STEP 2

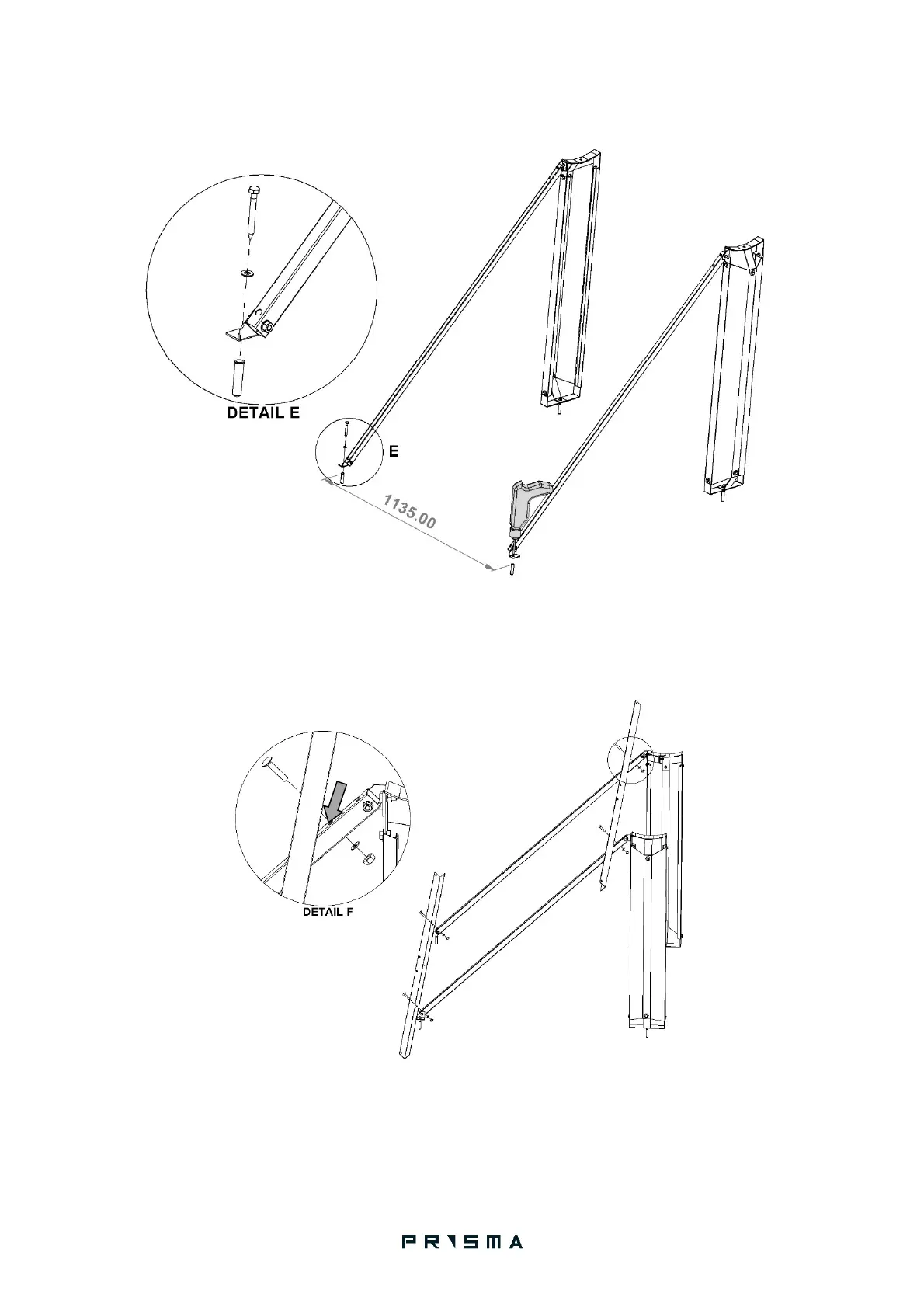

Assemble the diagonals on the pillars. Ensure diagonals are parallel and in line with the pillars. Ensure
that the hole to hole distance is 1135 mm, install appropriate anchors and seal.
STEP 3
Install the two collector rails as shown above by means of the coach bolts.
Note that the top rail is assembled in the lower hole at the top.[DETAIL F]
