THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
16
Make sure that the coach bolts are properly seated, that the rails are perpendicular to the diagonals
and that the base is aligned and tighten the nuts.
STEP 4

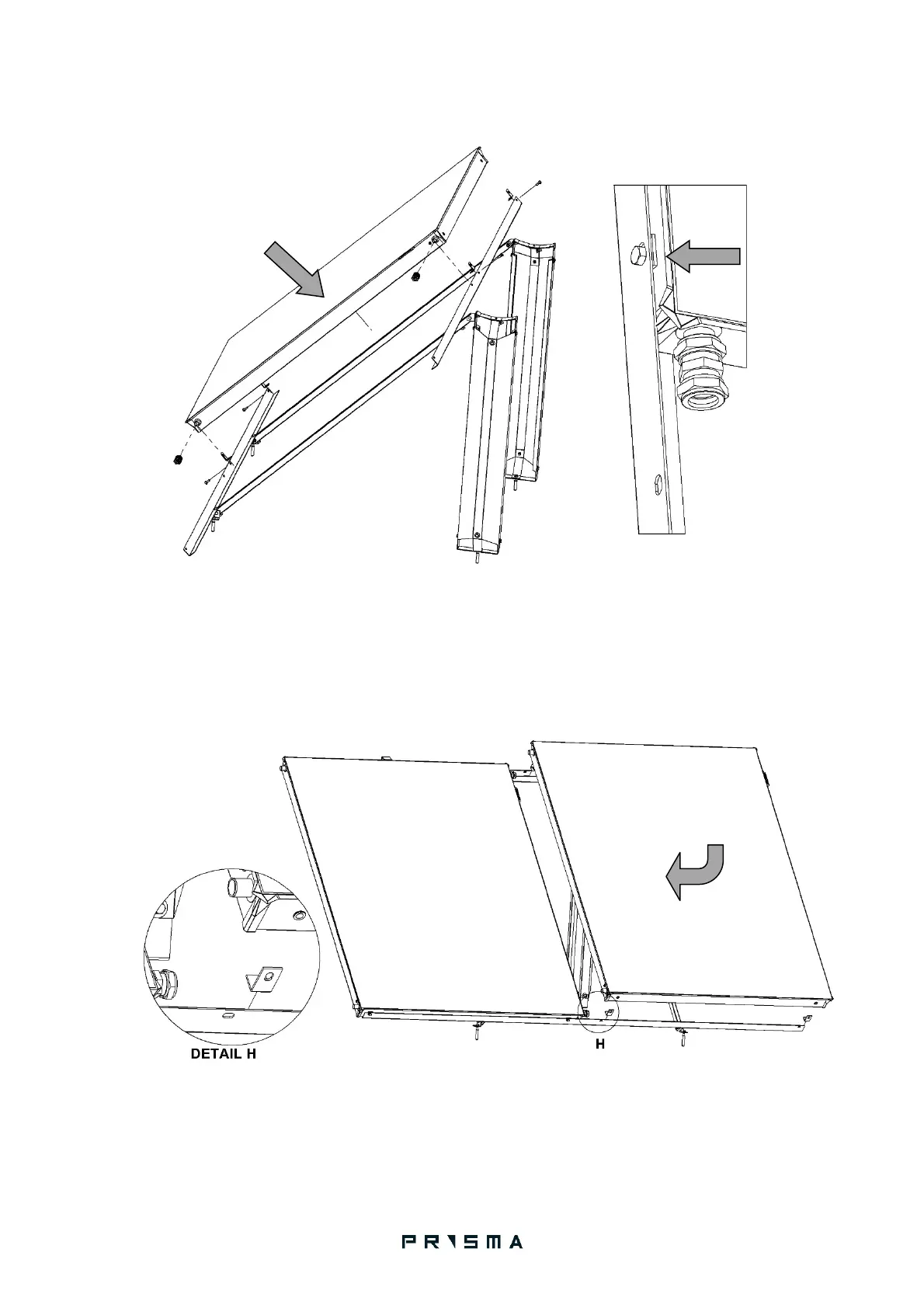

Install the first collector on the rails.
Use 4 collector spacers between the collector and the rail and install the hydraulic fittings.
Center the fitting with respect to the rail and tighten the bolts taking care not to strip the thread.
STEP 5
Lower the second collector onto the rails. Use the spacers provided.
