STEP 6

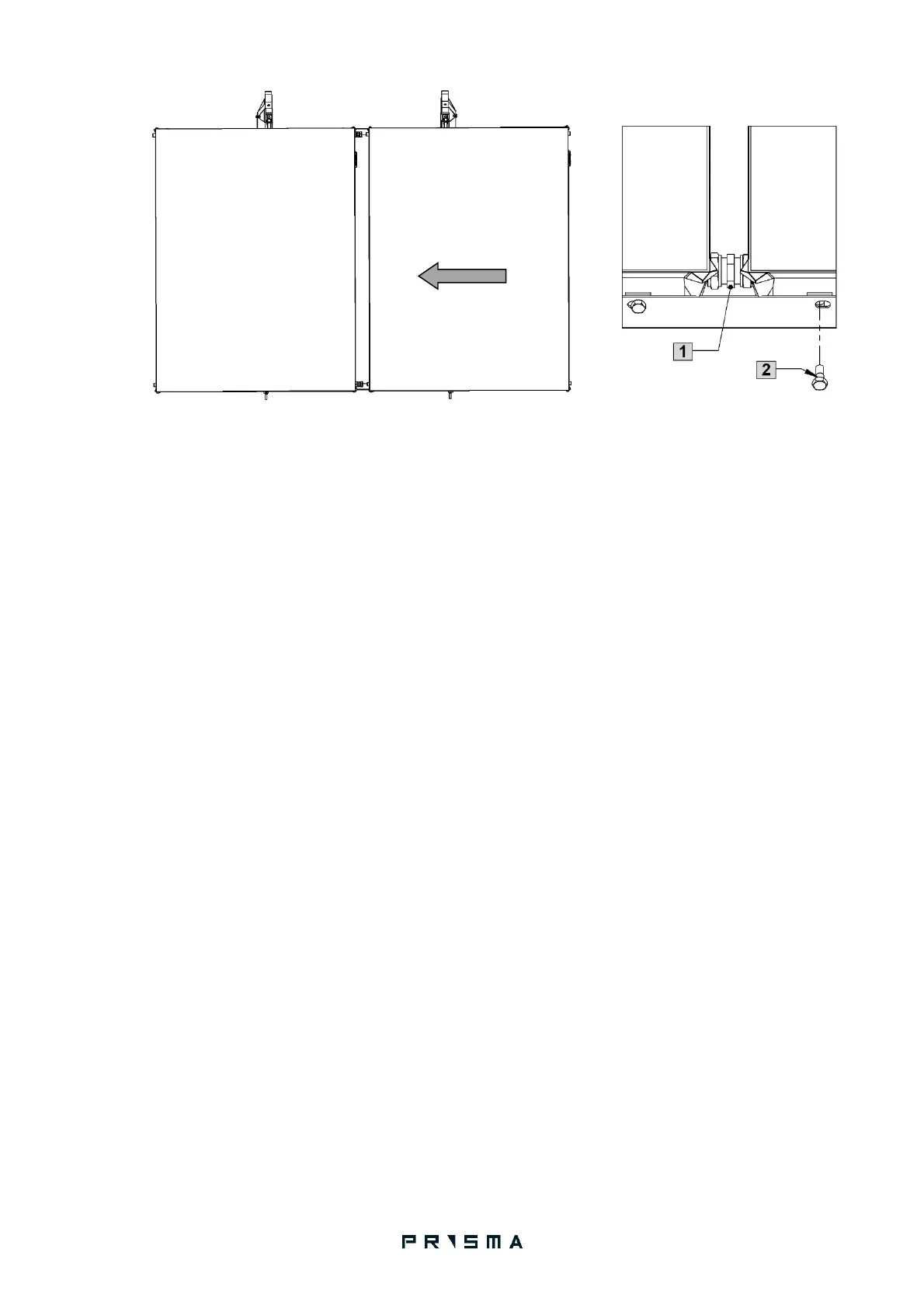

Slide the second collector towards the first so that the tubes are inserted into the connection fitting.
[1] Tigthen the fitting.
[2] Install and tightenthe second collector securing bolts.
Assemble the X-system according to STEP 4 in page 12.
Install the tank according to STEP 5 in page 13.
NOTES
1. The anchoring of the system to the flat roof floor should be implemented with devices that
are appropriate to the floor material.
2.
In order to avoid humidity problems or water penetration (rain/snow) in the roof, the pipes
which are entering the roof must be very well sealed. Local building engineer should provide
you with precise guidelines depending on the kind of roof construction and/or local
legislation. The same applies to the system anchoring points, regardless of the devices used
for the installation.
