THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
20

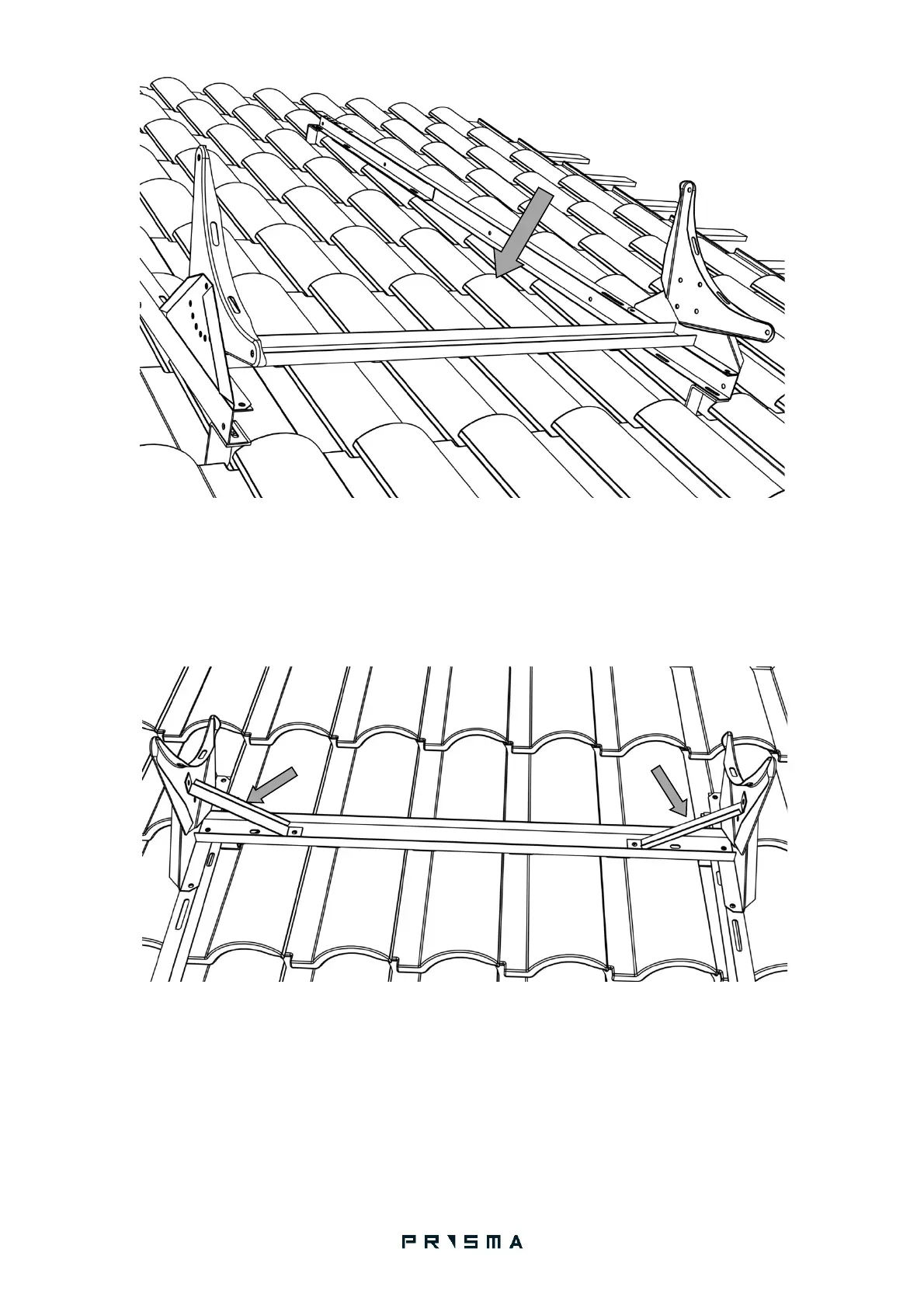

STEP 3
Install the transverse beam joining the two longitudinal sections.
STEP 4
Install the two support struts joining the transverse beam with the two longitudinal sections.
