THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
21
STEP 5

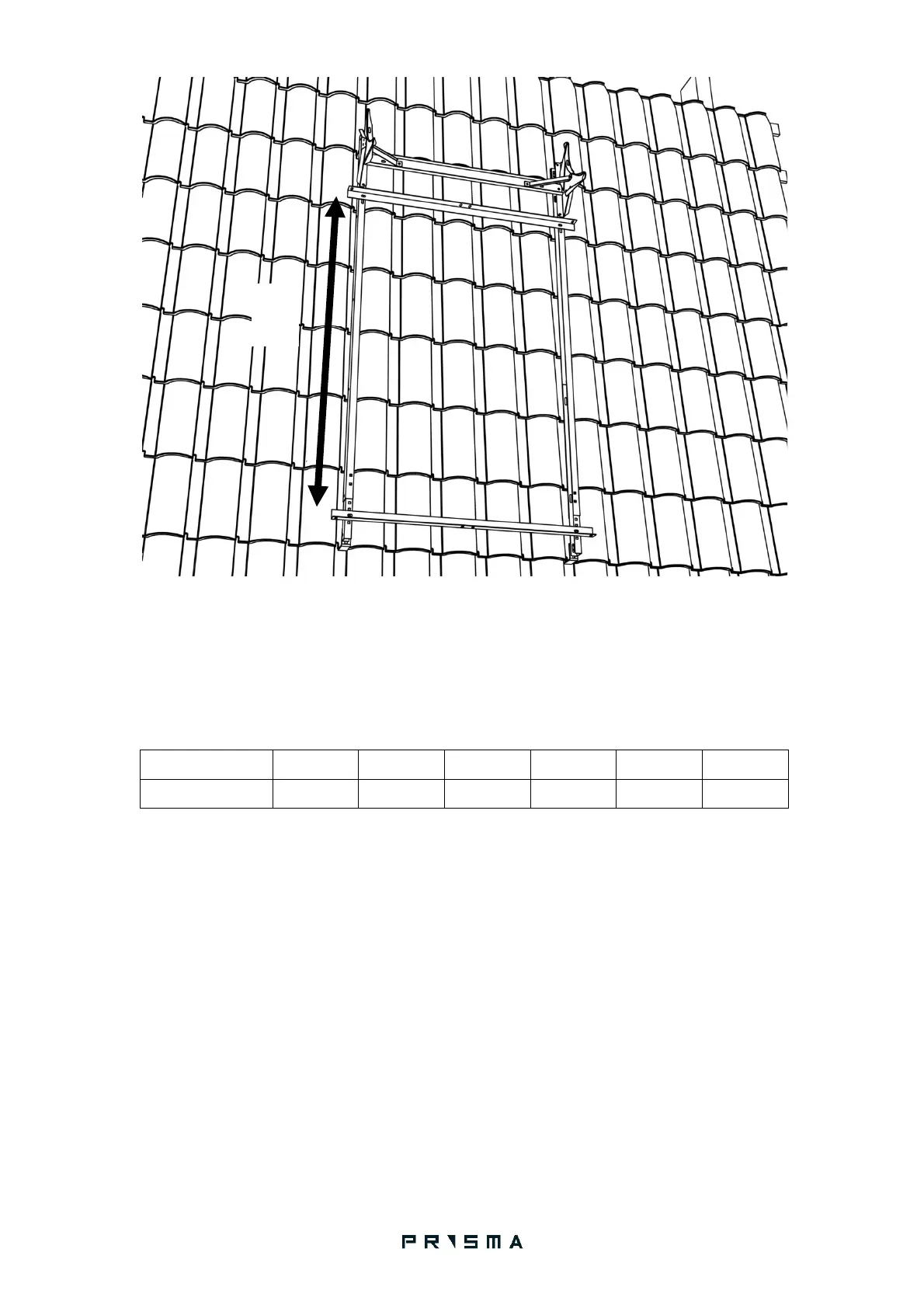

Install the two L beams supporting the collector. The distance C between the vertical mounting faces
of two beams should be set according to Table 3 to fit the height of the collector. Secure only the
bottom beam and slide the top beam upwards to ease collector installation.
TABLE 3
DIMENSION 160/2 160/2.5 200/2.5 200/4 300/4 300/5
C
1600 1994 1994 1600 1600 1994
