THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE

STEP 6

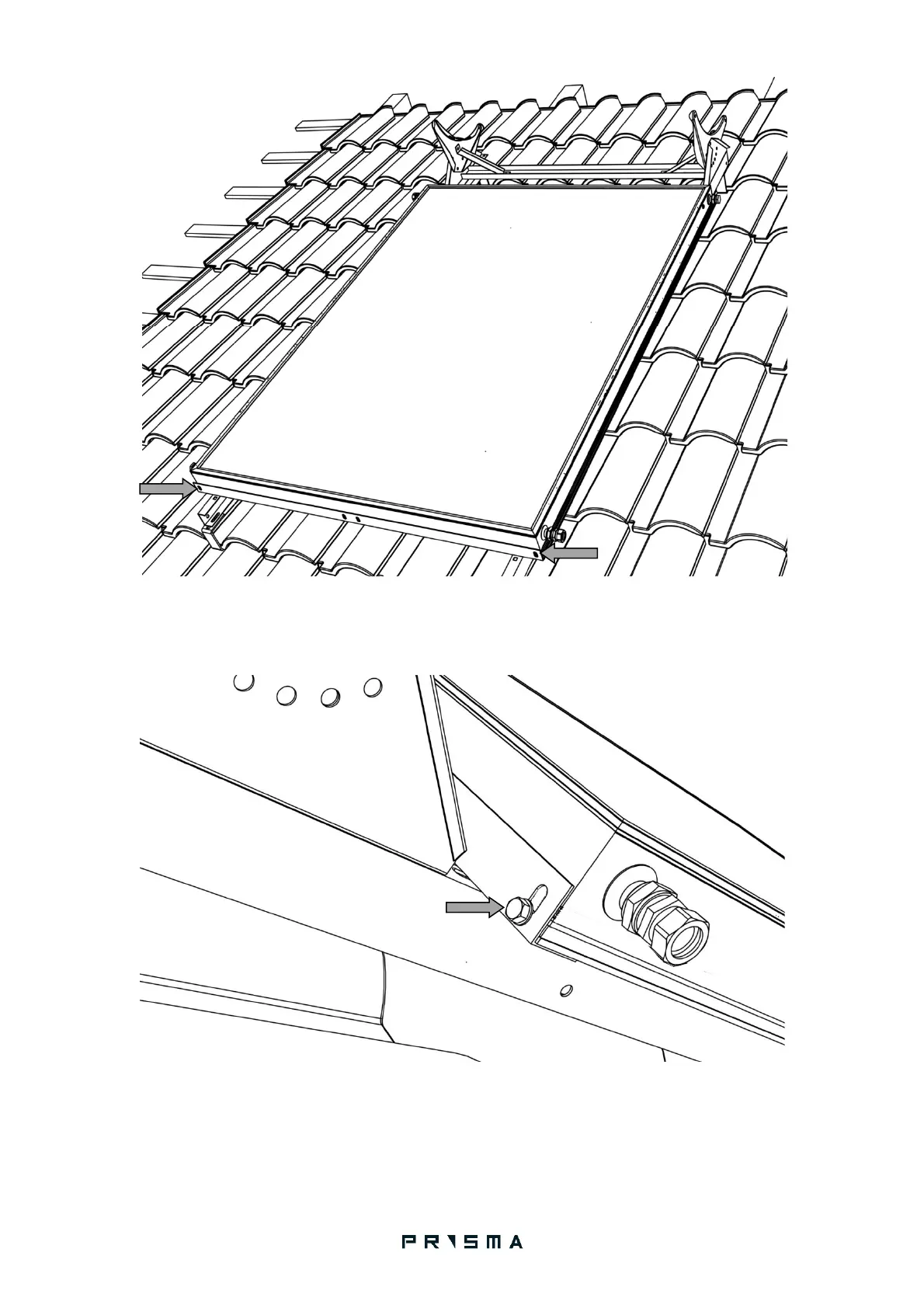

Place the collector(s) on the base assembly. Tighten the bottom securing bolts against the bottom

support beam.

STEP 7

Slide the top support beam against the collector and tighten the support bolts. Tighten the support

beam onto the longitudinal base sections.
