MPA204
GB

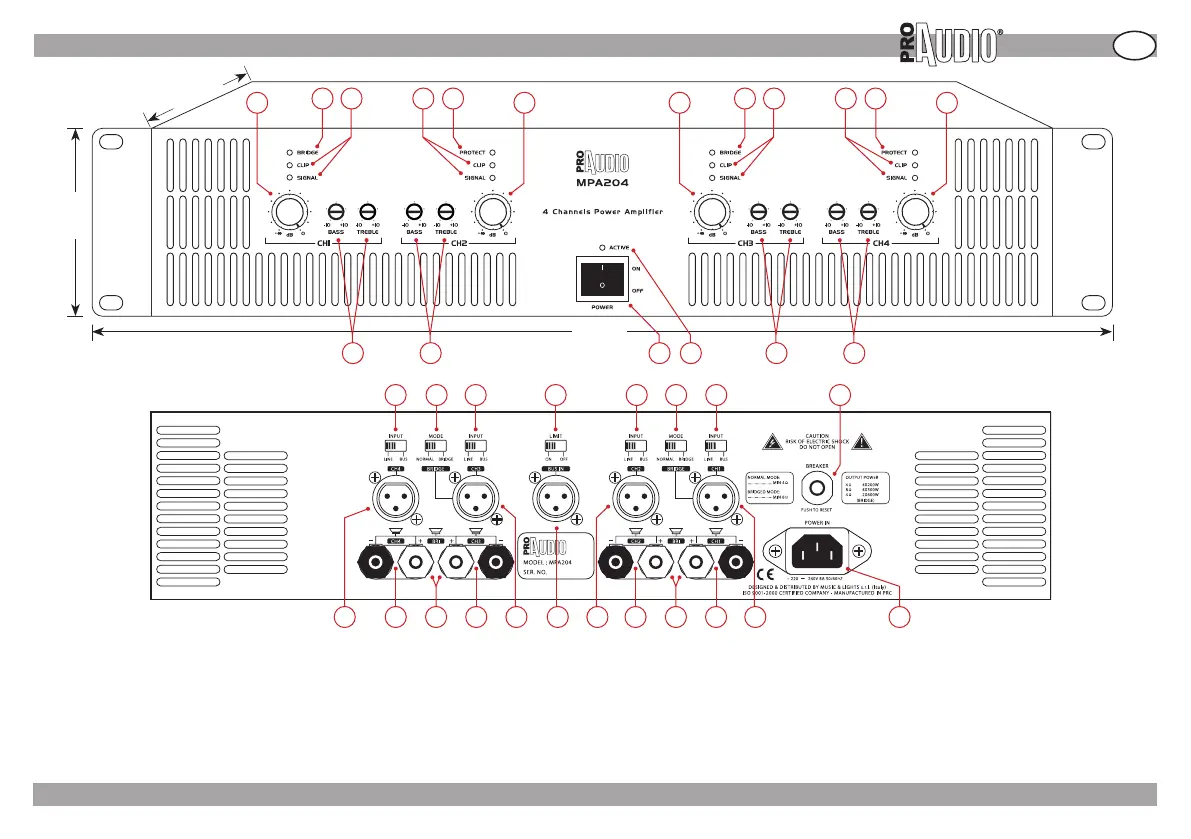

» LAYOUT - PANELS DESCRIPTION
483 mm
89 mm
1
375 mm
2 3 4 5
13
6 7
8 9 10 11
12
14 15 16 17 18
19 20 21 22 23 24 25 26
28 29 3027 31 32 33 34 35 36 37 38
1. CH1 Level Control
2. CH1&CH2 Bridge
3. CH1 Signal & Clip
4. CH2 Signal & Clip
5. CH1 & CH2 Protect
6. CH2 Level Control
7. CH3 Level Control
8. CH3 & CH4 Bridge
9. CH3 Signal &Clip
10. CH4 Signal &Clip
11. CH3 & CH4 Protect
12. CH4 Level Control
13. CH1 Bass & Treble
14. CH2 Bass & Treble
15. Power Switch
16. Power Indicator
17. CH3 Bass & Treble
18. CH4 Bass & Treble
19. CH4 Input Switch
20. CH3&CH4 Mode Switch
21. CH3 Input Switch
22. Limiter Switch
23. CH2 Input Switch
24. CH1 & CH2 Mode Switch
25. CH1 Input Switch
26. Breaker
27. CH4 Input
28. CH4 output
29. Bridge2 Output
30. CH3 output
31. CH3 input/Bridge CH3/CH4
32. Bus input
33. CH2 input
34. CH2 output
35. Bridge Output 1
36. CH1 output
37. CH1 input/Bridge CH1/CH2
38. IEC Power Cord Connector
