17. Next, remove the hardware from the frame
bracket holding the lower control arm in
place. Remove the control arm at this
time.
18. Install the bushings and sleeves from
hardware pack 90-6273 into the new lower
control arm PN 90–2359 as shown in IL-
LUSTRATION 4. Use the lubricant as
necessary. Install the supplied sleeves.
IMPORTANT!: 2010 models: Install
the bushings PN 15-10978 and sleeves
90-8083 from hardware pack 90-6748
into the new lower control arm front
arm axle end as shown in ILLUSTRA-
TION 4.
19. Install the new lower control arm with the
OE hardware. Install a new factory cam-
bolt and nut. It is not recommended to
reuse the original cam-bolt. Do not

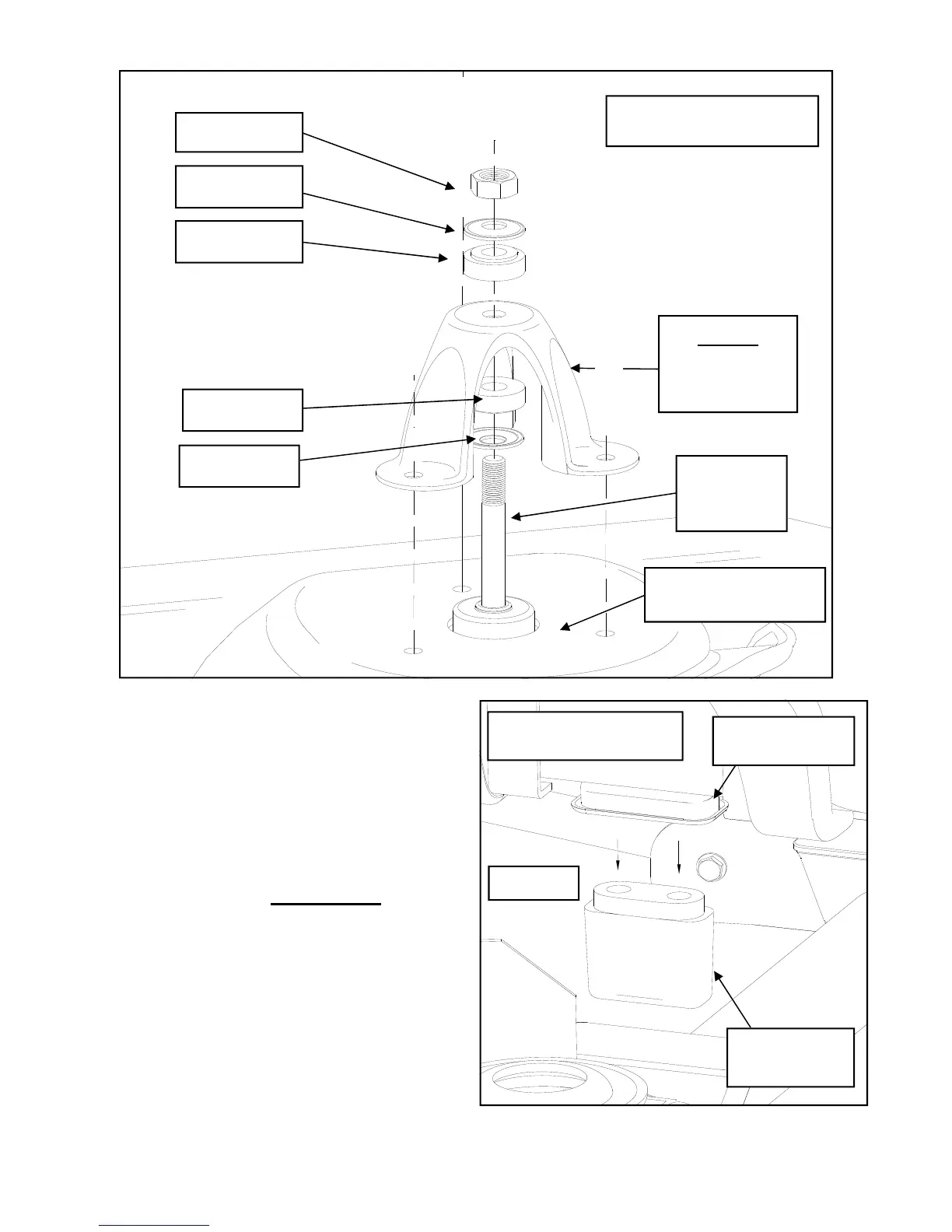

ILLUSTRATION 3
FRAME
BUMPSTOP
15-10995
BUMPSTOP
POCKET
ILLUSTRATION 2
SHOCK NUT
DO NOT
UNBOLT UPPER
SHOCK
BRACKET
UPPER COIL POCKET
SHOCK
MX6104 or
927591
RETAINER
GROMMET
GROMMET
RETAINER
