Use a Pitman arm puller to remove the OE
pitman arm. The threads of the sector
shaft and the Pitman arm retaining nut
must be cleaned of all factory dry adhe-
sive.
IMPORTANT!: THE ENTIRE INSTALLA-
TION PROCESS MUST BE DONE WITH
HAND TOOLS TO ENSURE PROPER IN-
STALLATION. DO NOT USE IMPACT
TOOLS.
28. Install new pitman arm on sector shaft.
Oil the sector shaft threads to ensure a
proper torque reading. Install Pitman arm
retaining nut and tighten until snug.
29. Insert the key and unlock the steering
wheel.
30. Install the Pitman arm torque tool (96-
5779) to the Pitman arm using one of the
previously removed OE track bar bolt and
nut plate. See Illustration 6.
31. Secure the torque tool (96-5779) to the
existing hole in the track bar frame mount-
ing pocket using one of the previously re-
moved OE track bar bolt and nut plate.
See Illustration 6.

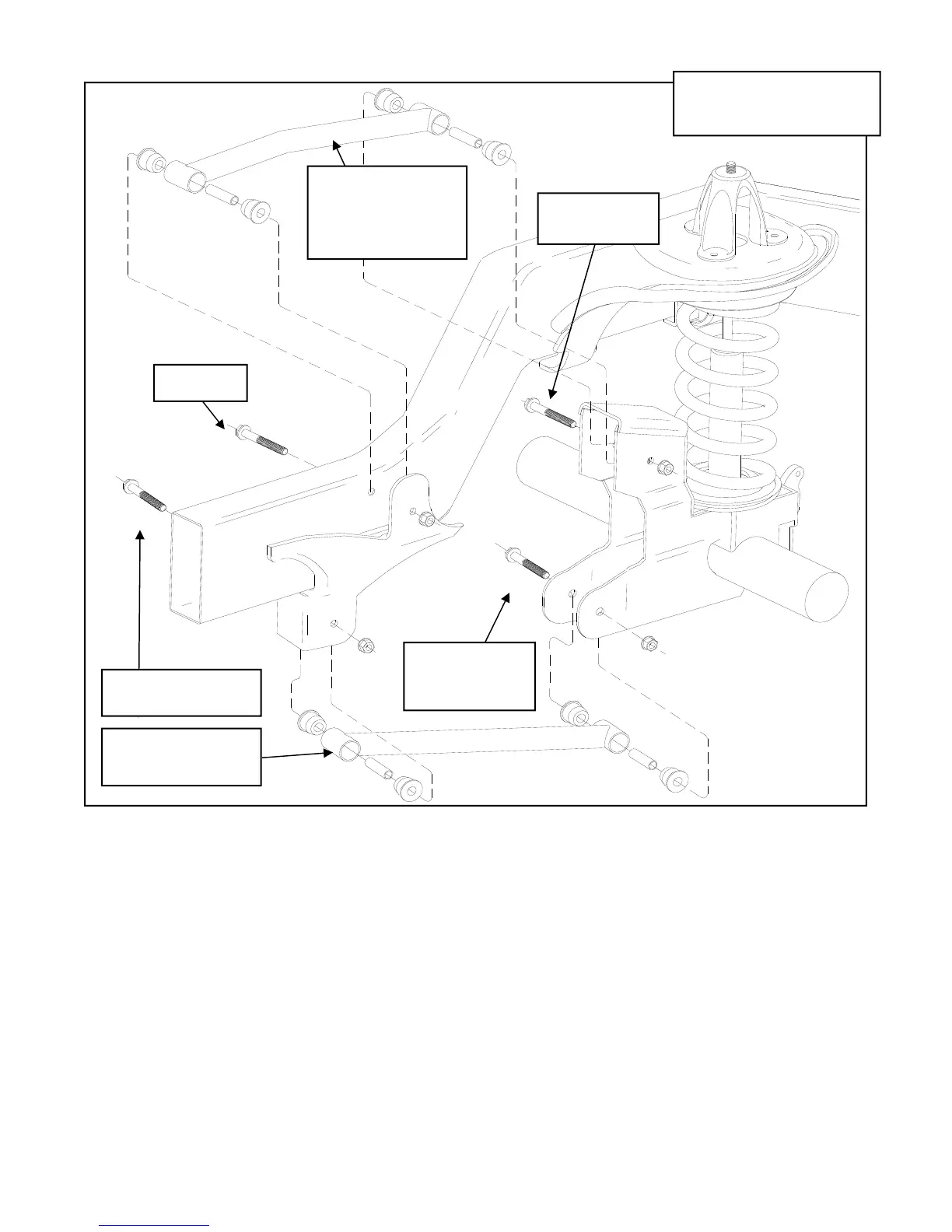

OEM
OEM BOLT
NEW OEM
CAM BOLT
OEM BOLT
CONTROL ARM
90-2361.
Bent end
to the rear of the
truck
CONTROL ARM
90-2359
ILLUSTRATION 5
PASSENGER SIDE
